Looking for advice on building an electric ATV


Posts: 142
12
2
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I'd like an ATV for doing stuff around my property, like hauling wood or light plowing. I would like it to be electric, so I don't have to deal with gasoline, oil, engine repairs, etc. I would also like not to spend $15,000 for a new one, because $15,000 is a lot of money and because it seems much more permie not to buy new when used would be fine. Except that electric ATV's haven't been around at high volume and for a long time, so I don't really see used ones for sale.

So I had the idea to buy someone's old, dead gas ATV for a few hundred bucks, remove the engine, and buy an electric motor and batteries and convert the machine to electric.

The small problem is that I don't really know how to do this kind of thing. I'm willing to learn, but it would be easiest if there was a specific and targeted tutorial on this, rather than picking up bits and pieces in various places.

Is anyone familiar with an online course or a book or even an in-person--near-ish to Kingston, NY--class or workshop on the subject?

pollinator
Posts: 219
Location: Clackamas County, OR (zone 7)
126
  • Likes 12
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Sorry to say, but what you are describing is a tough sell. DIY electric conversions tend to be tough to do on budget unless you are a savvy scrounger with a lot of tools and know-how. The fact that there are so many variables makes it very tough to standardize - even within a model line of ATVs, there will likely be variations between the years. The real challenge is mating up an electric motor to a very specific (I.E. non-standardized) transmission arrangement while maintaining the very precise tolerance needed to not wear out the bearings and shafts involved.

Batteries are still pretty pricey, but you can get used stuff from wrecked EV's for a fraction of the cost of new cells. You will need to do a deep dive into electrical systems. You will also need to fabricate a custom battery box.

Once you have gone to all the trouble, what you will end up with is an electric vehicle that still has any of the mechanical problems that the original ATV had...

If youd like to hear about my 15k dollar electric truck that took me 2 years and has only driven about 20 miles, shoot me a message :) I can provide you with plenty of ideas of what not to do.

Joshua Frank
Posts: 142
12
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hmm. That's discouraging, but I'm still game to learn more. Has the truck only driven 20 miles because it doesn't work, despite 2 years of effort, or some other reason?

I would say that my use case is fairly tolerant of low performance. I don't want to do off road racing or anything, just drive a few hundred yards once in a while to tow some wood or tools. So it doesn't have to work incredibly well, just...some. I don't suppose that makes it any easier?

Carl Nystrom
pollinator
Posts: 219
Location: Clackamas County, OR (zone 7)
126
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
An electric conversion is a really interesting project, but my advice is to go in with very low expectations, and an understanding that it will mostly be a really expensive education. I would suggest you budget 50 hours just to do initial research. I am not sure how much time it would take to actually convert an ATV, but it will be a bigger project than you think.

The reason my truck has been sitting in the driveway for the last 4 months is that once I was done, I discovered that the truck itself needed a bunch of work. The transmission needs to be overhauled. It needs a brake job, the ABS system is throwing error codes, and I came to the realization that I dont really like working on cars. The electrical stuff was pretty fun, and I learned a bunch about EVs, but I would have gotten a lot more bang for my buck by just buying a used leaf. I will probably work on it some more when the weather gets nicer, but right now I still kinda feel like I need a break.

If you decide to convert, make sure it is actually a project that you are going be passionate about for the long haul. The online community is filled with examples of people who gave up halfway through their projects.

If you just want to dip your feet, you might be better served trying to modify something like an electric golf cart? Really all comes down to your skills and interests.

master pollinator
Posts: 4578
Location: Canadian Prairies - Zone 3b
1249
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Phew, you've set up a steep learning curve to make this happen. Not only building it, but charging it.

I like Carl's suggestion of an electric golf cart as a platform to play with. At least it's designed to run on electricity.

Standing back, I have to ask: what's your motivation for going electric? Would, say, brewing and distilling your own alcohol fuel supplement for a conventional ATV engine hit the same marks and ultimately be more functional? No judgy pants, just curious.

Luck!

Joshua Frank
Posts: 142
12
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Douglas Alpenstock wrote:
Standing back, I have to ask: what's your motivation for going electric? Would, say, brewing and distilling your own alcohol fuel supplement for a conventional ATV engine hit the same marks and ultimately be more functional? No judgy pants, just curious.

Luck!



One is the fossil fuel issue, and while burning alcohol would address that, I'd then have to build a distillery (which would be excellent, but add another major skill to the project). Also, internal combustion engines are just a lot more complicated than electric motors, and since I'd have to learn one of them, I figured it'd be easier and more future oriented to jump right to electric.

steward
Posts: 15145
Location: USDA Zone 8a
4151
dog hunting food preservation cooking bee greening the desert
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Do you want the kind that you sit on and ride, like a quad bike, or the kind that you sit in like a mule?

If you were looking into the mule kind, I would suggest trying to find an electric golf cart.  They are more readily available for a lot less money.

Our golf cart can go anywhere our mule can go including climbing to the top of a mountain. Ours is gas so an electric cart might not make it to the top of a mountain.

What we did was buy the all-terrain tires for the golf cart.

Joshua Frank
Posts: 142
12
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I was imagining a quad bike for a low center of gravity to do work, not riding for its own sake. But I'm only just learning, so I'm open to  suggestions.

Posts: 2
Location: Anchorage
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Joshua Frank wrote:I'd like an ATV for doing stuff around my property, like hauling wood or light plowing. I would like it to be electric, so I don't have to deal with gasoline, oil, engine repairs, etc. I would also like not to spend $15,000 for a new one, because $15,000 is a lot of money and because it seems much more permie not to buy new when used would be fine. Except that electric ATV's haven't been around at high volume and for a long time, so I don't really see used ones for sale.

So I had the idea to buy someone's old, dead gas ATV for a few hundred bucks, remove the engine, and buy an electric motor and batteries and convert the machine to electric.

The small problem is that I don't really know how to do this kind of thing. I'm willing to learn, but it would be easiest if there was a specific and targeted tutorial on this, rather than picking up bits and pieces in various places.

Is anyone familiar with an online course or a book or even an in-person--near-ish to Kingston, NY--class or workshop on the subject?



I don't think an electric ATV will cut the cost for you. Like an electric car, it needs a battery to power it, and it doesn't come cheap. Of course, I still appreciate your project, I will learn a few things and will provide you soonest.

pollinator
Posts: 678
Location: Sierra Nevada Foothills, Zone 7b
151
dog forest garden fish fungi trees hunting books food preservation building wood heat homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I dunno man. I'd have to agree with what's already said. To be honest I would think if you are using so minimally I would just get a ratty old quad and burn gas. You are talking about 5 gallons a year usage and it doesn't take much to offset the environment savings you would get by cutting that out, whether it's from shipping the oddball parts or just driving around looking for them. But as a project and a learning experience this might be fun, depending on what else you have going on. The golf cart as a starting machine is a great idea too.

I would say the best advice I saw was to build a still and try to create your own fuel. I watched Moonshiners on TV the other day. Looks easy!  A little for you, a little for the machine...

Joshua Frank
Posts: 142
12
2
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
My desire for electric is not primarily to save on gas, but to have a machine that doesn't require internal combustion engine skills to maintain and repair, and to run quietly and without toxic fumes.

Carl Nystrom
pollinator
Posts: 219
Location: Clackamas County, OR (zone 7)
126
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
A lot of this discussion resonates with me, because I feel like I can relate to how you feel Joshua.

A big reason I started my conversion project was that it felt like the right thing to do. My motivation was not really fully rational; and I think I knew that going in. Part of me wanted to see how hard it would be, and try and extrapolate from there to a "could the whole world do this, and convert all our vehicles to more sensible fuel?" My experience says; no. It is going to be a change that I think has to happen from the top down, not the bottom up.

Now, I will say that it is very rewarding to simply DO something - even if it does not further any rational goal. Call it education, or entertainment; it doesnt matter. Building things is fun!

A couple more ideas to throw out;

Charcoal gasification is relatively straight-forward. It will turn a gas guzzling ATV into a charcoal-burner. You could put a system together for this out of old metal buckets and never even lay hands on a welder. It will be essentially carbon negative, as you will invariably lose some of the charcoal your produce as dust and fuel spills :) It does not meet the requirement for not emitting exhaust, so you wouldnt want to drive it around inside. It does make more efficient use of the donor vehicle, but it will need to still be running.

Another thought I had: a lawn tractor would make a really easy conversion project because the drivetrain is usually just powered by a v-belt. Any electric motor that you could be fit with a pulley would basically be a drop-in replacement. It would be pretty low-performing, but it would be an easy starter project. Also, riding mowers are readily available, often free for the hauling off.

Anne Miller
steward
Posts: 15145
Location: USDA Zone 8a
4151
dog hunting food preservation cooking bee greening the desert
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Joshua Frank wrote:I was imagining a quad bike for a low center of gravity to do work, not riding for its own sake. But I'm only just learning, so I'm open to  suggestions.



We use our golf cart and mule for work.

On the golf cart, we replace the where golf clubs go with a "bed" to haul stuff.  lots of 50 lb feed bags, etc.

We added a trailer hitch so we can attach a cart that we can haul more stuff.

Maybe it is possible to add the cart to the quad.  It just seems a golf cart is much more practical especially since it is already electric.

We do wildlife management so we feed lots of deer and other wildlife.

We also have to check game cams.  Check water troughs.

gardener
Posts: 970
Location: Proebstel, Washington, USDA Zone 6B
524
2
wheelbarrows and trailers kids trees earthworks woodworking
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Douglas Alpenstock
master pollinator
Posts: 4578
Location: Canadian Prairies - Zone 3b
1249
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Carl Nystrom wrote:Another thought I had: a lawn tractor would make a really easy conversion project because the drivetrain is usually just powered by a v-belt. Any electric motor that you could be fit with a pulley would basically be a drop-in replacement. It would be pretty low-performing, but it would be an easy starter project. Also, riding mowers are readily available, often free for the hauling off.


In theory, I like the idea. It's a great platform for experimenting. A dead garden tractor, with its heavy duty transmission, might be more appropriate -- but they are never free.

Respectfully, I'm not sure of the "drop-in replacement" concept. Some sort of speed controller or disposable clutch would be just about mandatory. The torque from an electric motor is very high and nearly instantaneous -- very different from an ICE. This would snap belts, shafts and transmissions that are not engineered for these stresses.

Posts: 50
16
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Would it not be cheaper and easier to buy an electric golf cart? I guess an ATV can handle rougher terrain, but I'm sure there are ways of making an electric golf cart handle rougher terrain than a golf course and you can throw a solar panel on the roof to give the battery a little boost

Joshua Frank
Posts: 142
12
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I'm finding all the feedback very helpful. I am a bit confused, because the general take seems to be that it will be difficult and expensive and probably not worth it cost-wise,  except for the value of the lessons learned.

But then I see articles like this one that say things like "That being said, it’s nowhere near as expensive as people make it out to be as long as you bring the elbow grease." Is this guy just wildly optimistic, or a lot more skilled than most people, so he can do it much cheaper?

Douglas Alpenstock
master pollinator
Posts: 4578
Location: Canadian Prairies - Zone 3b
1249
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Interesting! I'm suprised at how affordable the conversion kits are. I had not seen them before. Some are even brushless, which is better. I'm still not clear on the potential problems with the connection to the gearbox/drive axle.

The linked article doesn't include any details about the battery pack. Obviously he's using lithium-ion. The batteries need to produce 36-48 VDC. For an ATV, lithium would be the only real option. For a lawn mower conversion, there is probably room for a lead-acid battery bank.


Dan Fish
pollinator
Posts: 678
Location: Sierra Nevada Foothills, Zone 7b
151
dog forest garden fish fungi trees hunting books food preservation building wood heat homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
"A dead garden tractor, with its heavy duty transmission, might be more appropriate -- but they are never free. "

Incorrect! I have one sitting outside the garage you can have! It actually runs too. I just have no need for it because it doesn't get around my terrain, which is why I have a quad. My father in law basically dumped it here... Catch is you have to pick it up in Northern California. No shipping, hahahaha.

Carl Nystrom
pollinator
Posts: 219
Location: Clackamas County, OR (zone 7)
126
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Yeah, "it's complicated" really applies to your questions, Joshua! That article is talking about using electric bike motors (around 1000watts) and claims that the ATV should be able to do 10 to 15mph. That might be correct, or it could be wildly optimistic - much will depend on a whole bunch of factors. Climbing hills takes a lot of power, so does traversing looser soils. Even the weight of the donor vehicle and type of tires will play a role. The bottom line though is that if you greatly reduce the power you will save money and lose performance. How low you are willing to go is up to you.

I am not here to say that anything is impossible. A scrounger who can find anything, and has spent his whole life rebuilding cars and trucks could probably put something together for free. A career machinist with access to 100,000$ worth of machine tools could probably mate any motor to any transmission, and keep all the tolerances under a thousandth. I am not even sure how the transmission on an ATV even connects to the motor - but I suspect that it varies. Some might be easier than others. If it uses chains or belts, that will make things much easier.

And I will also say that a conversion will likely be cheaper in total than buying a production unit - but it will likely be on par or more expensive when you compare its driving time/range/top speed etc.

Again, I am not trying to dissuade you if it sounds like a really fun project. You will undoubtedly learn a lot regardless of the outcome.

gardener & hugelmaster
Posts: 3620
Location: Gulf of Mexico cajun zone 8
1915
cattle hugelkultur cat dog trees hunting chicken bee woodworking homestead ungarbage
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Converting your ATV is a lengthy process for anyone that isn’t already comfortable with automobiles and maintenance in general.



Quote from the article. I would add that solid electrical knowledge will be important along with some machining skills. I think attaching a motor & batteries wouldn't be all that difficult. Safely controlling it in a useful manner in various terrains & weather plus having it be reliable for a long time is an entirely different story.

Douglas Alpenstock
master pollinator
Posts: 4578
Location: Canadian Prairies - Zone 3b
1249
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Dan Fish wrote:"A dead garden tractor, with its heavy duty transmission, might be more appropriate -- but they are never free. "

Incorrect! I have one sitting outside the garage you can have! It actually runs too. I just have no need for it because it doesn't get around my terrain, which is why I have a quad. My father in law basically dumped it here... Catch is you have to pick it up in Northern California. No shipping, hahahaha.



Posts: 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Joshua Frank wrote:My desire for electric is not primarily to save on gas, but to have a machine that doesn't require internal combustion engine skills to maintain and repair, and to run quietly and without toxic fumes.




I feel the same too. I'm doing an electric hybrid on a new kind of solar/water power that would spin a telsa turbine and telsa turbine pump. Here's the science and application.

https://youtu.be/2pGxVvSizoE


Douglas Alpenstock
master pollinator
Posts: 4578
Location: Canadian Prairies - Zone 3b
1249
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
That's an interesting crowdfund demonstration. Very cool indeed. Have you found a way for this system to produce actual work?

master steward
Posts: 6901
Location: Isle of Skye, Scotland. Nearly 70 inches rain a year
3348
4
transportation dog forest garden foraging trees books food preservation woodworking wood heat rocket stoves ungarbage
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Carl Nystrom wrote:Yeah, "it's complicated" really applies to your questions, Joshua! That article is talking about using electric bike motors (around 1000watts) and claims that the ATV should be able to do 10 to 15mph. That might be correct, or it could be wildly optimistic - much will depend on a whole bunch of factors. Climbing hills takes a lot of power, so does traversing looser soils. Even the weight of the donor vehicle and type of tires will play a role. The bottom line though is that if you greatly reduce the power you will save money and lose performance. How low you are willing to go is up to you. "



I'll just comment that I looked into converting my Range Rover to EV a few years ago (came to the conclusion that it was possible but way beyond my budget - just too big a motor required). However you do not need as big a motor for an EV as you may think. This is because of the way the torque is available from low revs. see this explanation. I worked out that I needed about 50kW motor for my Range Rover to give acceptable (to me) performance compared to the original 97kW 3500l V8 engine. The top speed will come down partly to gearing ratios of course too.

Posts: 451
16
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Hey Joshua I think its a great idea, and very good use for an old atv that would otherwise go to waste.

The result should be a machine with superior pulling power to the original one, so you will have more utility value and nice and quiet too!

William Kellogg
Posts: 451
16
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

I think I would start by removing the original engine/transmission assembly, carefully detaching all of the wires, cables and hoses without damaging them, just in case any if this can be utilized in the build.

Now you have reduced the weight a bunch and you have a huge open space to dry fit the new motor and find the optimal position for it. Essentially it will be sitting with the output shaft in the same orientation as the transmission output shaft, and hopefully you are able to adapt the same sprocket and chain.

Once you have this mocked up temporarily, you can fabricate some steel mounting hardware to the frame that will hopefully be adjustable for chain tension.

Posts: 4
1
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hello, new here to this forum,

I decided to convert a used dead ATV to electric and share some of the wisdom spouted on this site. Electric conversion? Why? what are my expectations? How much time do I have to work on and complete this project? How much funding do I have available? What is the expected performance? How much electrical engineering do I posses? How much mechanical/fabrication skills do I have? Do I have the needed tools?

The answer to all of these questions I had to list and go through before buying the donor vehicle.
what are my expectations?:
I want a gas free simple clean toy for the family
How much time do I have to work on and complete this project?:
A couple of years at most unless I give up prematurely
How much funding do I have available?:
Max $2k over time
What is the expected performance?:
15mph max at a reasonable acceleration, basically golf cart performance, for 20 minute minimum.
How much electrical engineering do I posses?
:
I have 2 years of IEEE college but never got a degree, handy with board level electronics
How much mechanical/fabrication skills do I have? :
Previously owned a body shop, have air tools, welders, machining and fabrication skills
Do I have the needed tools?:
Mostly but have no high level oscilloscopes and the like, I have a garage to work in but no milling machine, lathe, etc.

So far I gathered the parts but chose an AC motor (Hyundai HSG Alternator/starter) But that is beyond my ability to mate to a controller. What I decided to do to move forward was not to reinvent the wheel and wrestle with the HSG Alternator/starter and spend Huge amounts of money and time to design and implement a controller for it. I hired an expert crew called "Thunderstruck Motors" They did not offer to make the HSG motor work but instead sold me an off the shelf used AC motor and the service of programing my Curtis 1232E 5221 controller for under $1k, a real bargain! The programmer for the Curtis AC type controller is $500 alone and I have no experience with it even if I bought the programmer. The operating system to be loaded on my Curtis 1232E 5221 would be an extra cost to me if I tried to program the unit, and the code would have to be fabricated as well. My recommendation to anyone attempting this conversion is go series wound DC! It's cheaper and easier to use, just slightly less range for your battery pack.
I'll keep you posted as to my progress!

Stephen


William Kellogg wrote:
I think I would start by removing the original engine/transmission assembly, carefully detaching all of the wires, cables and hoses without damaging them, just in case any if this can be utilized in the build.

Now you have reduced the weight a bunch and you have a huge open space to dry fit the new motor and find the optimal position for it. Essentially it will be sitting with the output shaft in the same orientation as the transmission output shaft, and hopefully you are able to adapt the same sprocket and chain.

Once you have this mocked up temporarily, you can fabricate some steel mounting hardware to the frame that will hopefully be adjustable for chain tension.

[Thumbnail for IMG_3747.JPG]

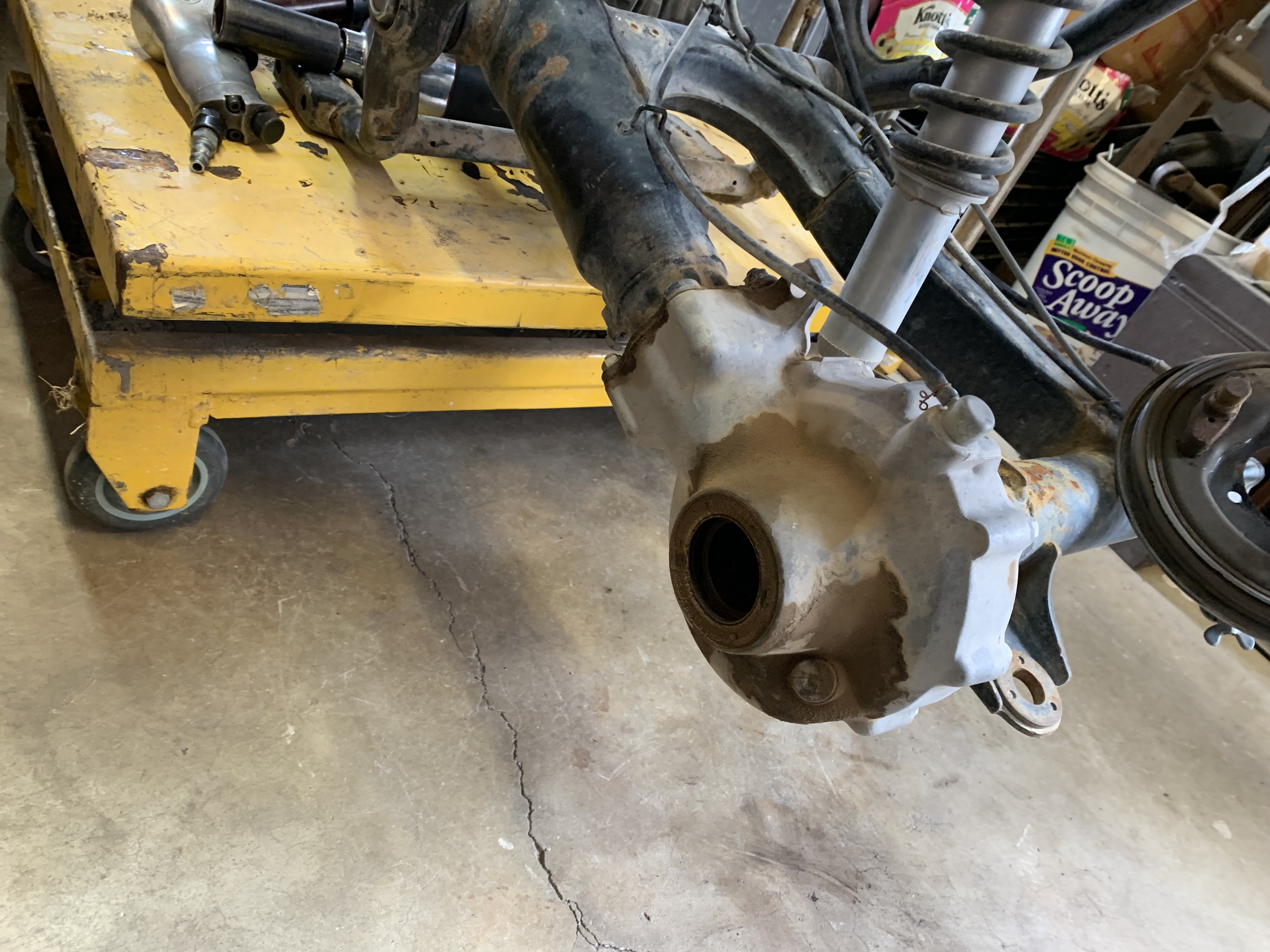

[Thumbnail for IMG_3750.JPG]

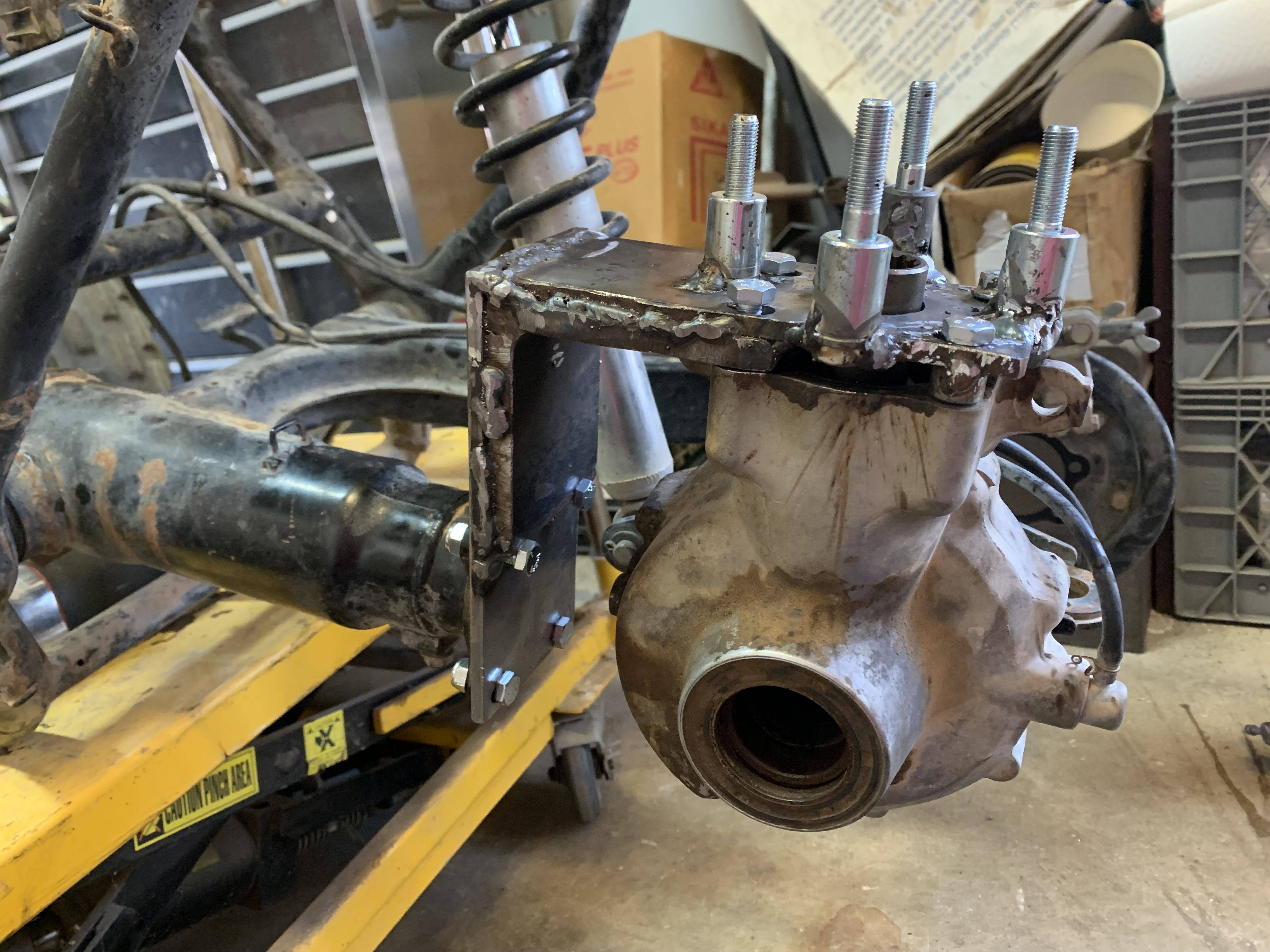

[Thumbnail for IMG_3822.JPG]

Stevon von
Posts: 4
1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
The transmission:

The original transmission and engine did not come with the rolling chassis. Figured that I did not need them before the ATV purchase. What I did is un bolt then rotate the axle basically 90 degrees and built a custom bracket, added a pully block and then cut/sleeved the stubby drive shaft to a 3/4 inch shaft. Next purchased a pulley with a taper 3/4 ID bore shaft hub.
I will fabricate the motor mount when I get the electric motor/harness/controller from Thunderstruck

Stephen
[Thumbnail for IMG_3778.JPG]
[Thumbnail for IMG_3777.JPG]
[Thumbnail for IMG_3817.JPG]

pollinator
Posts: 1345
Location: Virginia USDA 7a/b
356
4
hugelkultur forest garden hunting chicken food preservation bee
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Stevon, this is a really great concept. I guess I'm not understanding the motor linkage. Is this belt driven concept? Just to use a general-purpose motor? Mine is directly driven from the motor, which of course takes some proprietary pieces.

There are some good sites that might give you some starting points. I read endless sphere and some others. Almost always someone has done something similar. Saves a bunch of work.

I am mostly on there since its more technical. I just happened to check this out of a couple time s a year!

Stevon von
Posts: 4
1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Tj Jefferson,

I am a member of endless-sphere but that site is mostly focused on the electrical parts of my project. I was hoping to find some advice on controlling my HSG alt/starter but all I got was links to Engineers who solved the encoder question and made this type of motor work for their project. None of the folks that replied knew exactly what needed to be done or the parts required to try, also the engineers who succeeded did not post any replies. So I gave up on that path because I don't have the knowledge or resources to go that route.

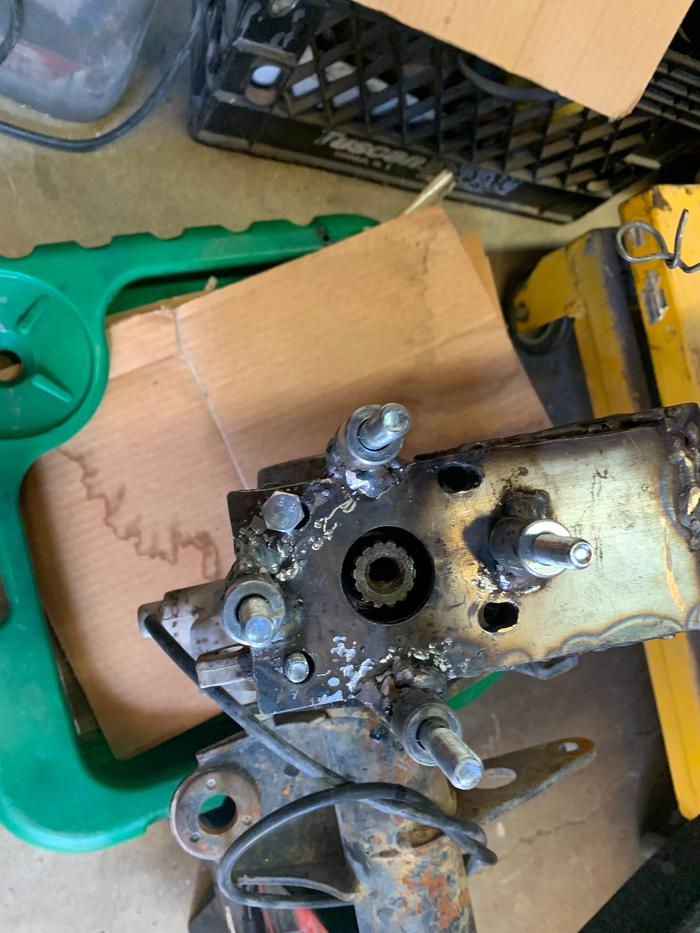

For the YBF250 ATV was lucky to have the stubby trans connector shaft still in the ATV to work with. The body of the shaft is roughly 9/16" so I cut off the transmission spline side of the shaft, increased/sleeved the shaft diameter size to 3/4" and purchased a pillow block with 3/4" ID bore. The pulley is a stock 3/4" taper lock bore and there is a drive connector that the tranny output shaft splines into (see pictures). The electric motor will be mounted to the swingarm connected with a poly V or a timing belt and the controller, battery pack will be put where the ICE engine was. I got a new 48 volt A/C Curtis controller on eBay for $200, but it only goes up to 200 amps max for 2 minutes or less but I think it will do for my <500 lbs application running for 20 or more minutes. The Engineers at Thunderstruck told me that's possible and will setup/program my controller for me to use on their used A/C motor they're selling to me, Shipped the HSG alt/starter for them to look at, Curtis controller, hand brake lever (with switch) a week ago, hope to hear from them soon. They have been building EVs and other Electric vehicles for years now so I'm leveraging their knowledge and experience to move my ATV conversion forward. Next time I will go with a DC setup, so much easier/cheaper...

Stephen

Tj Jefferson wrote:Stevon, this is a really great concept. I guess I'm not understanding the motor linkage. Is this belt driven concept? Just to use a general-purpose motor? Mine is directly driven from the motor, which of course takes some proprietary pieces.

There are some good sites that might give you some starting points. I read endless sphere and some others. Almost always someone has done something similar. Saves a bunch of work.

I am mostly on there since its more technical. I just happened to check this out of a couple time s a year!

[Thumbnail for IMG_3848.JPG]
[Thumbnail for IMG_3847.JPG]
[Thumbnail for IMG_3846.JPG]

Stevon von
Posts: 4
1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Guys,

I solved my controller issue with the HSG alternator/motor. Thunderstruck Motors sold me a ME1716 A/C motor and programed my Curtis 1232E 5221 controller. They set it to 50% current or a 100amps (out of 200) and included a harness. Hope that will be enough power, we will see in the field trials, he he. The battery pack I'm thinking of is 4 Renogy deep cycle AGM 100 Ah batteries in series (48 volt). I'm not going to use the rib belt but purchased instead some 3/8" pitch timing belt pullies. Will keep updating this article, if anybody is interested, hope so.

Stephen

Did Steve tell you that? Fuh - Steve. Just look at this tiny ad:
We need your help - Permies server fundraiser
https://permies.com/wiki/260600/Permies-server-fundraiser
reply
    Bookmark Topic Watch Topic
  • New Topic
