This is a badge bit (BB) that is part of the PEP curriculum.  Completing this BB is part of getting the sand badge in Electricity.

In this Badge Bit, you will replace a bathroom fan switch with a timer.



Some related articles
  - Replacing a Bathroom Fan Switch
  - How to Install a Timer on Exhaust Fan
  - How to Install Electronic Timer Switch









To complete this BB, the minimum requirements are:
  - replace a bathroom fan switch with a timer

To show you've completed this Badge Bit, you must provide:
   - a before picture with bathroom fan switch and the timer you will install
   - a picture during the install
   - a pic of the completed install
   - OR post a 2 minute video of you installing the bathroom fan timer and it working
COMMENTS:

steward
Posts: 8893
Location: Northern WI (zone 4)
2549
hunting trees books food preservation solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Approved BB submission
Got this one done recently.  The during picture was a but fuzzy since it was getting dark out and, for some reason, the lights weren't working. :)

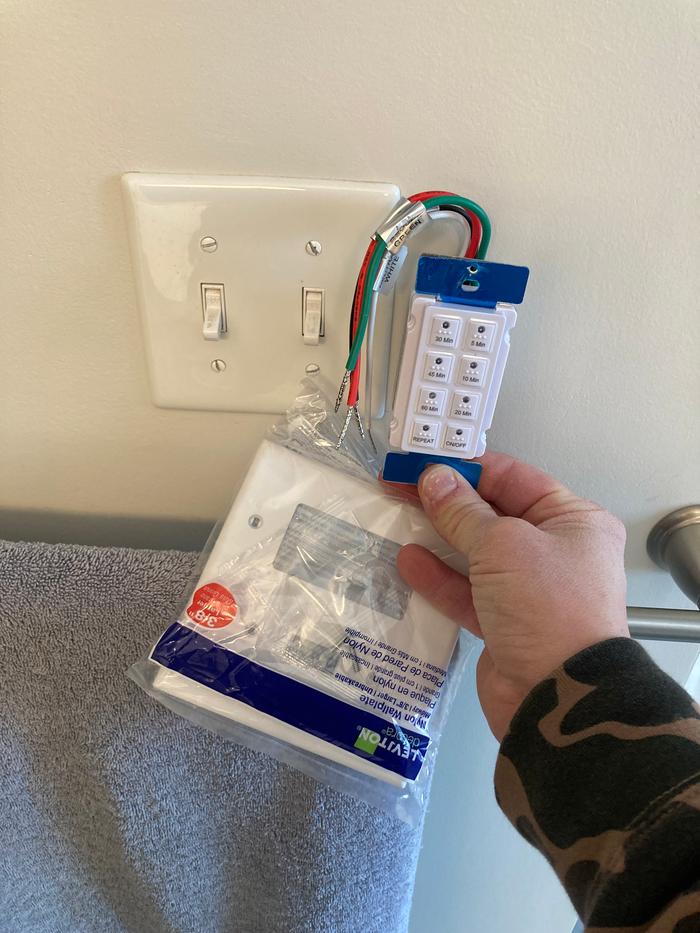

Before (shower light is the left switch, fan is the right one)
Before (shower light is the left switch, fan is the right one)

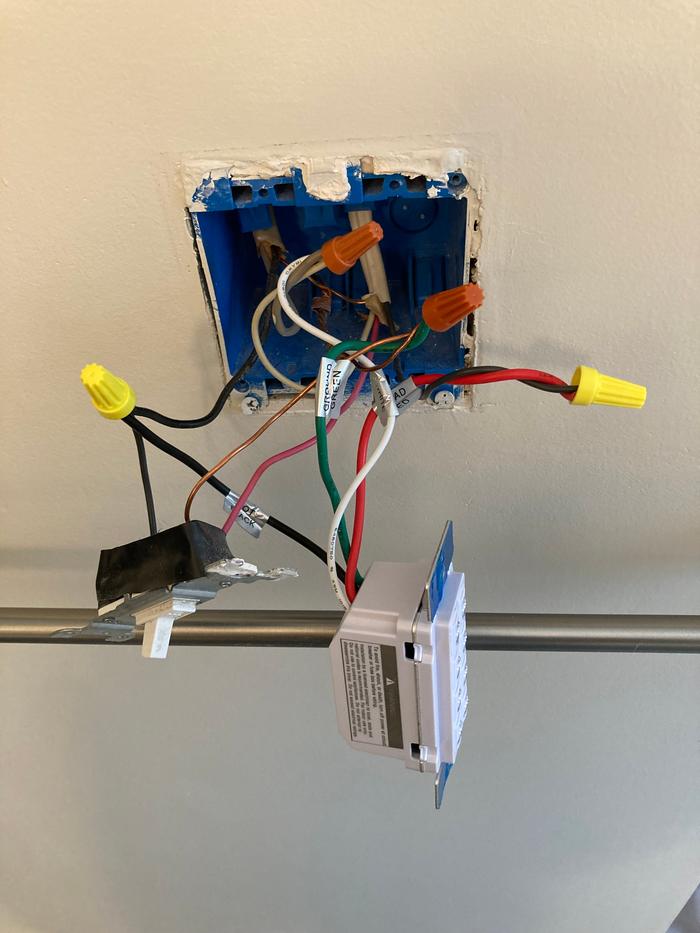

Mostly done
Mostly done

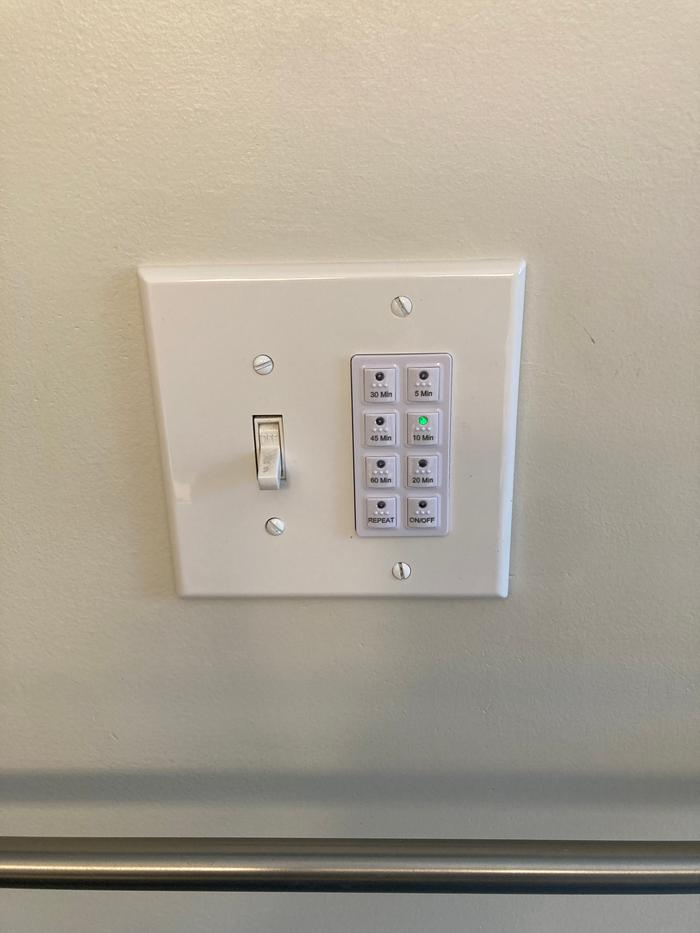

All done!
All done!
Staff note (Mike Barkley) :

I certify this BB is complete.


master pollinator
Posts: 269
Location: south central Washington State near the Columbia River
181
trees rabbit earthworks composting toilet fiber arts sheep wood heat homestead
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Approved BB submission
Here is my submission for the Electricity - Sand - Replace Fan Switch with Timer BB.

To document the completion of the BB, I have provided the following:
  - a before picture with bathroom fan switch and the timer you will install
  - a picture during the install
  - a pic of the completed install

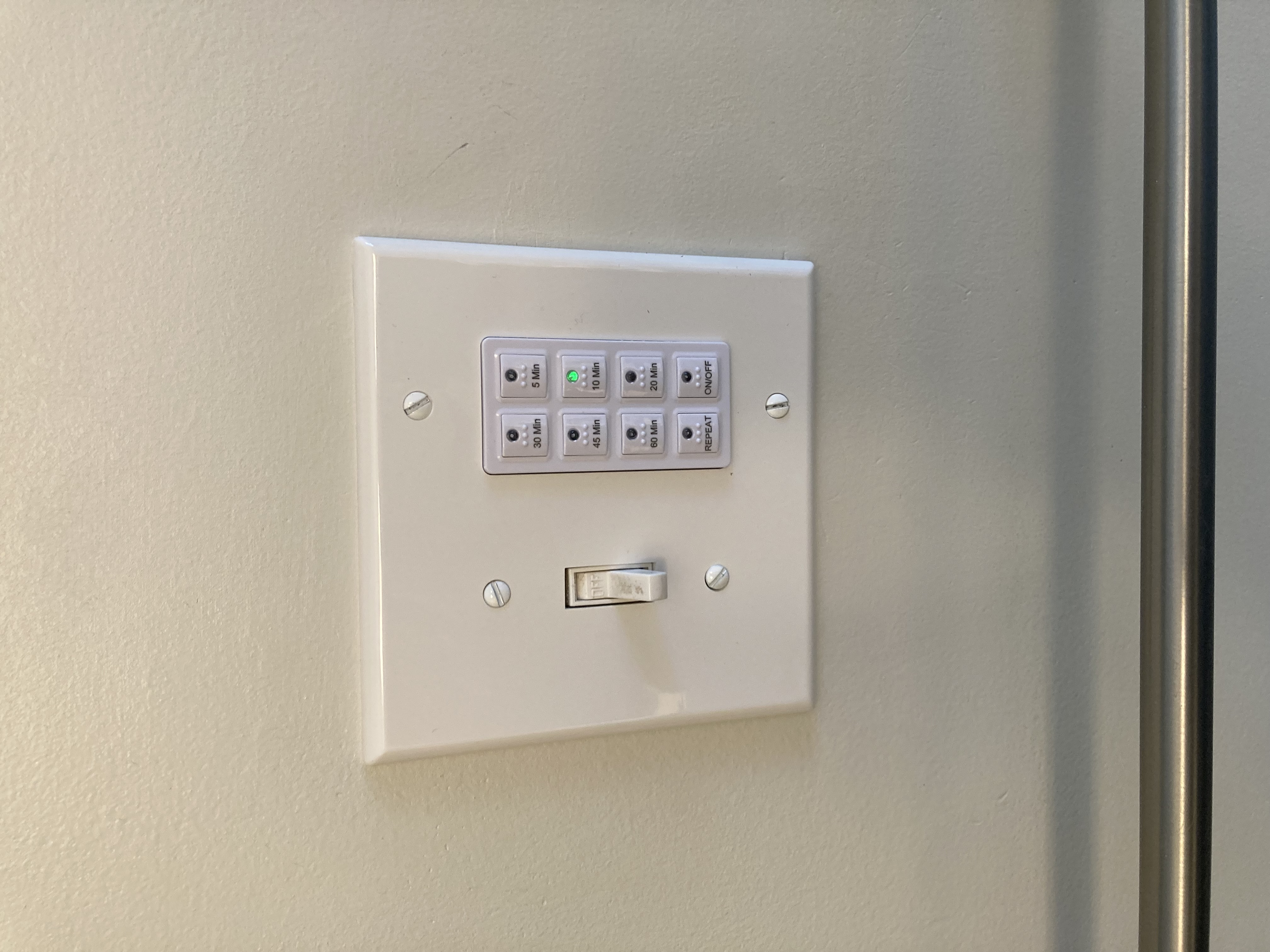

Note: the grey timer coverplate was not installed due to thickness of matching wooden coverplate and relative shortness of the screw to hold grey coverplate in place.  I decided to keep the matching coverplate.
Perspective - Light Switch and Fan Switch (Dark Blue Cover Plate) near door handle
Perspective - Light Switch and Fan Switch (Dark Blue Cover Plate) near door handle
Fan switch on right is off next to new timer
Fan switch on right is off next to new timer

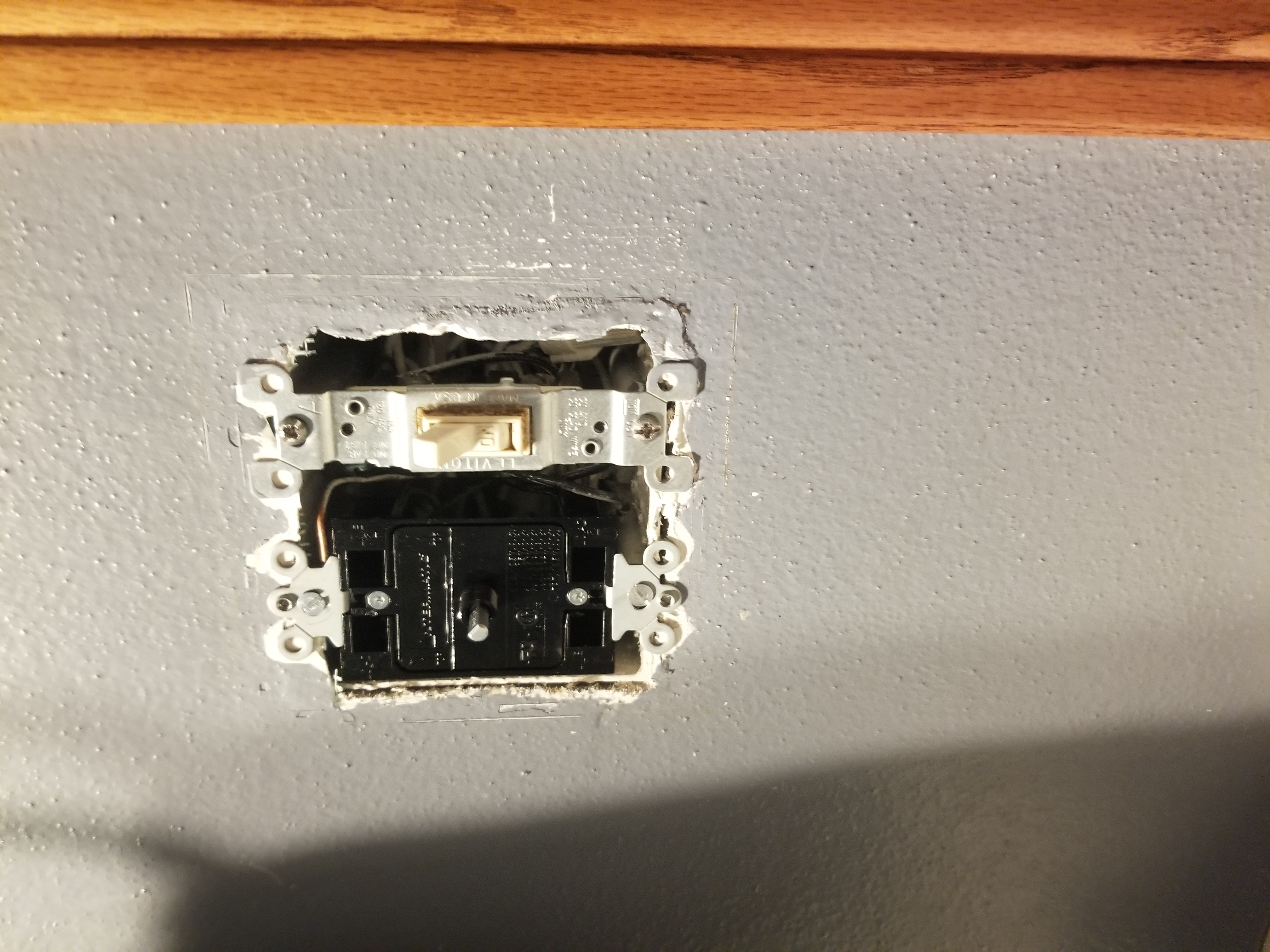

switch removed
switch removed
connecting timer
connecting timer
installing timer in electrical box
installing timer in electrical box
cover plate reinstalled - with timer cover plate held in place
cover plate reinstalled - with timer cover plate held in place
Finished
Finished
Staff note (gir bot) :

Mike Haasl approved this submission.
