Sand battery - thermal mass proto type.


pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

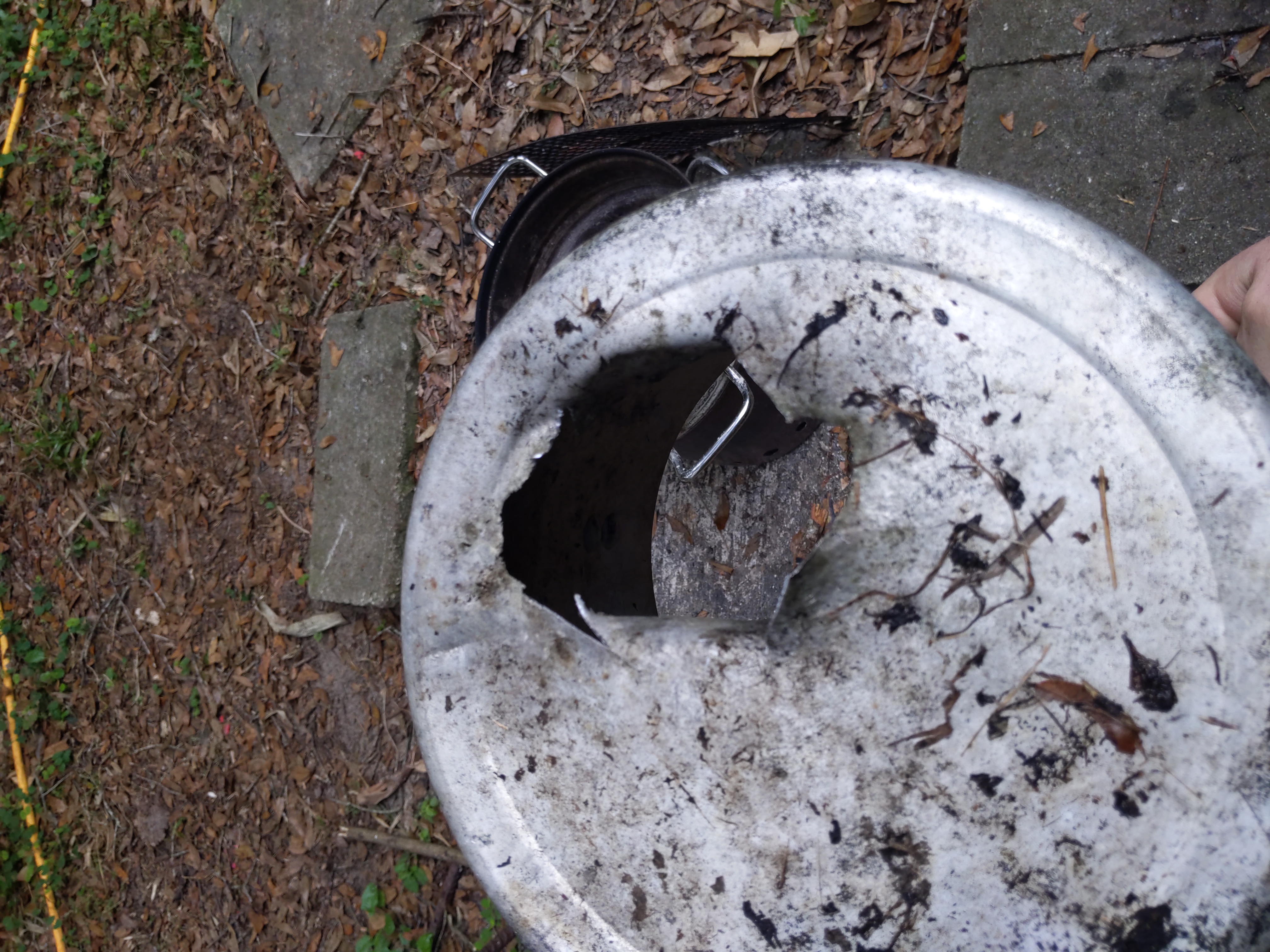

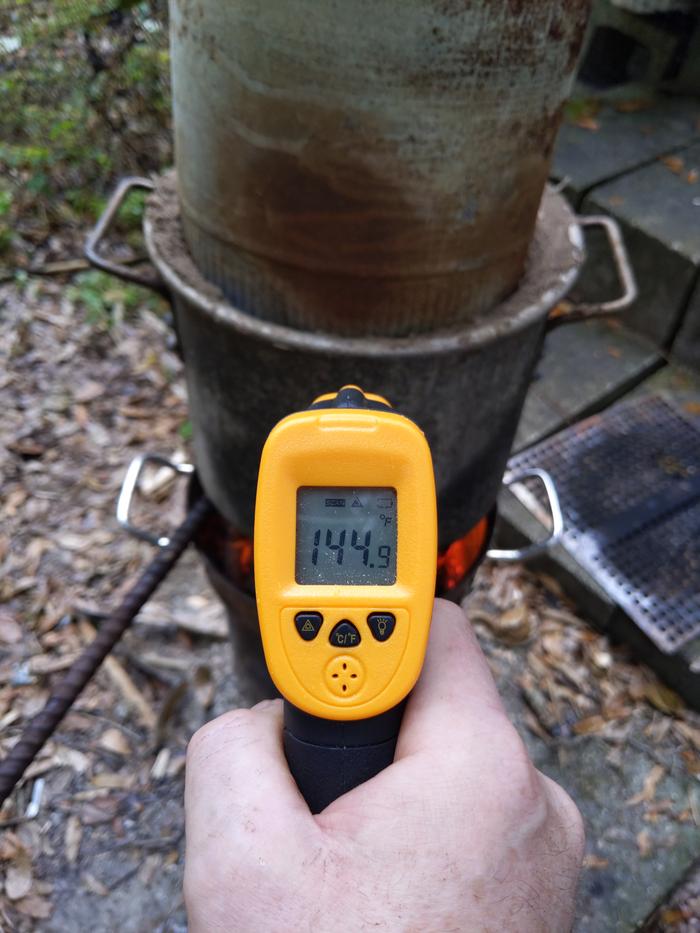

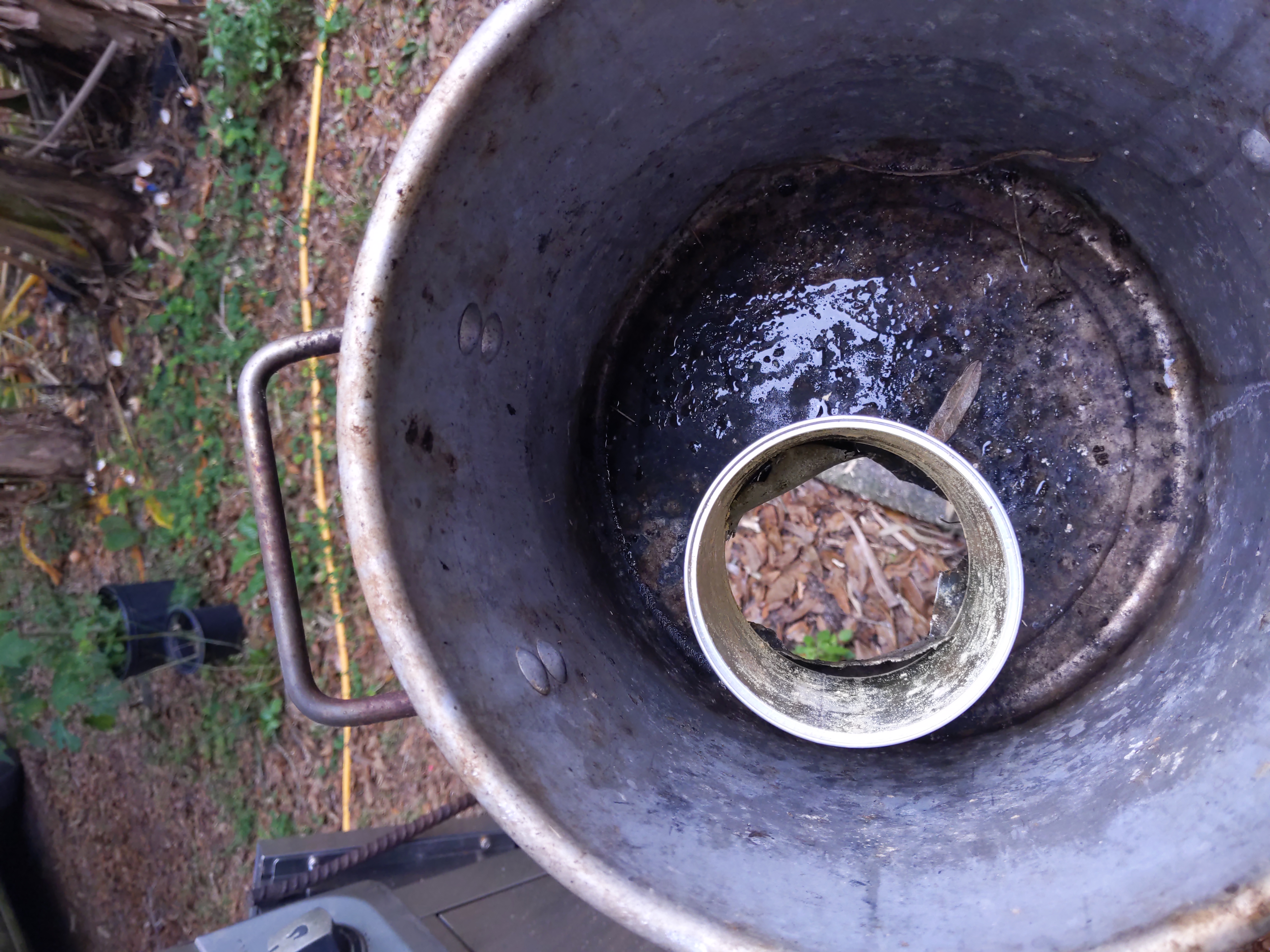

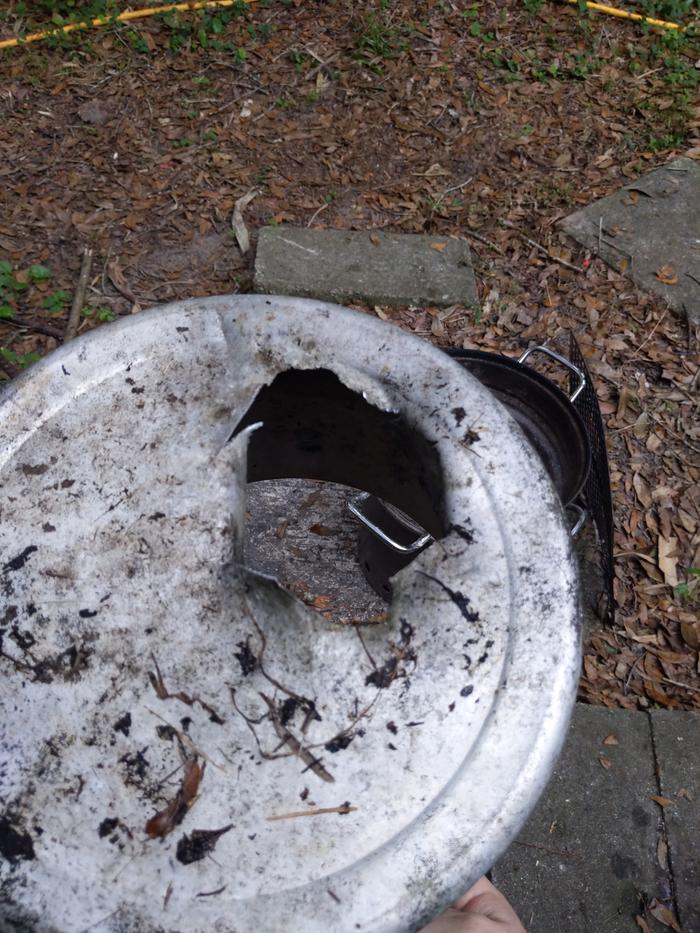

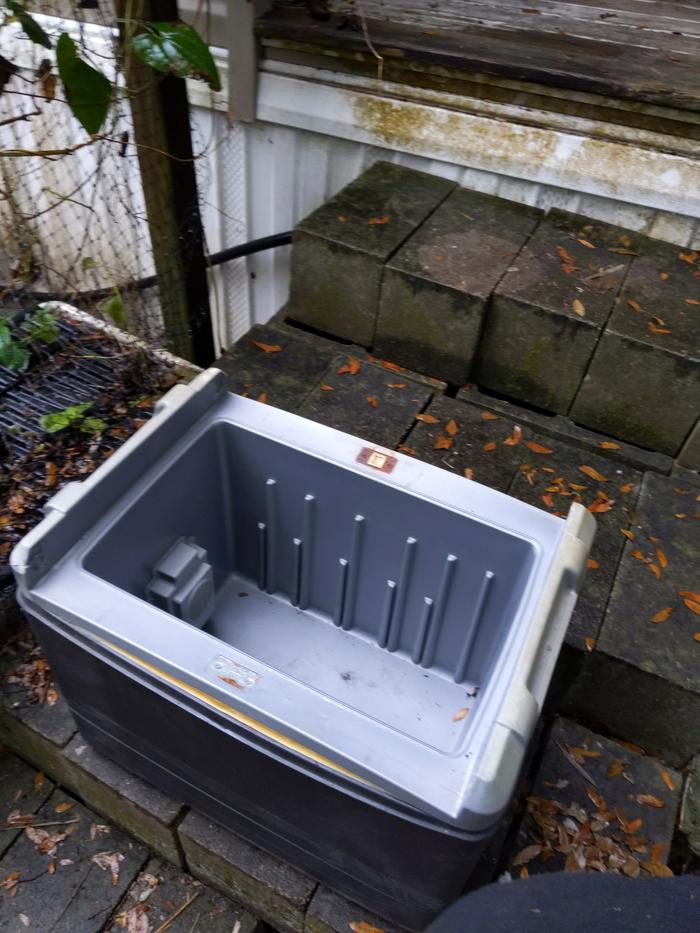

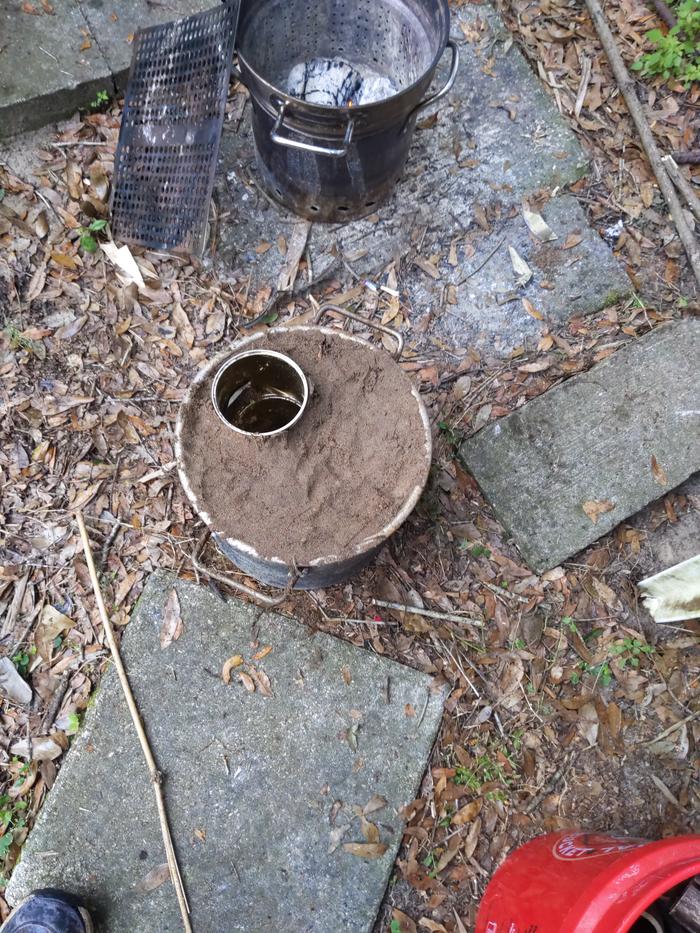

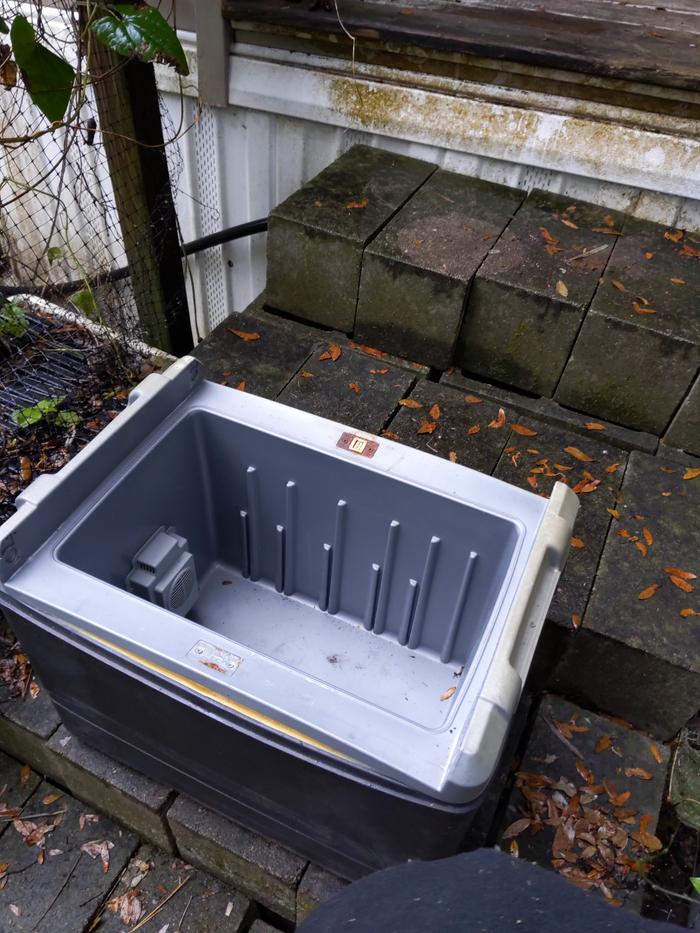

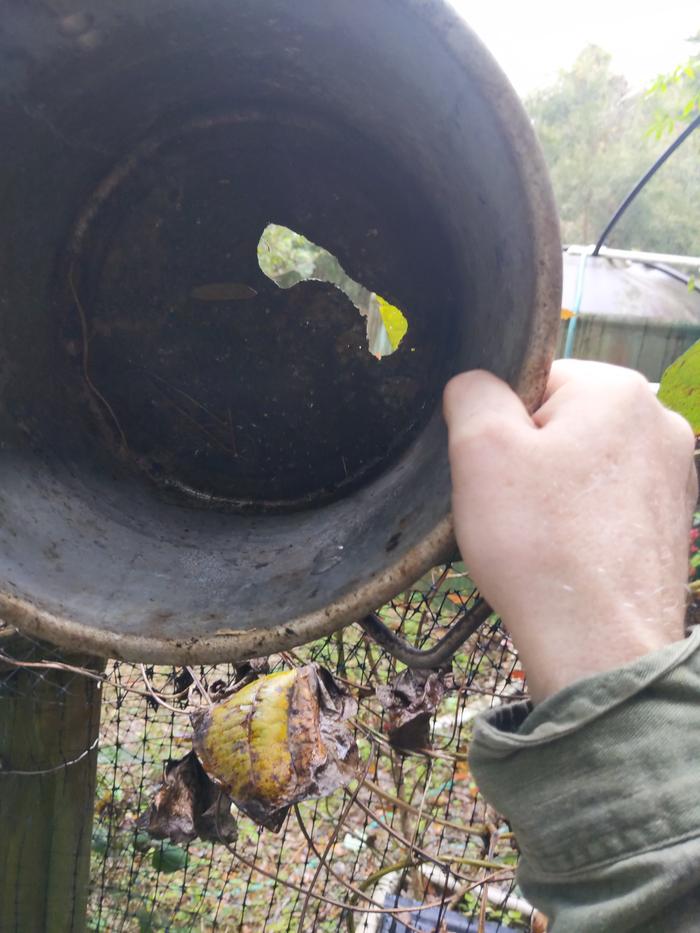

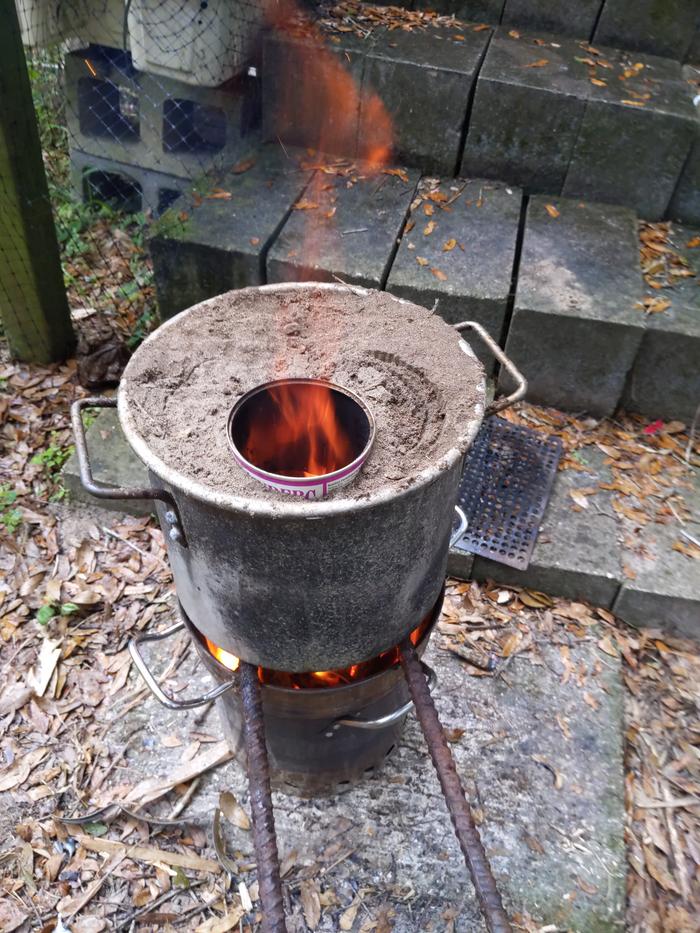

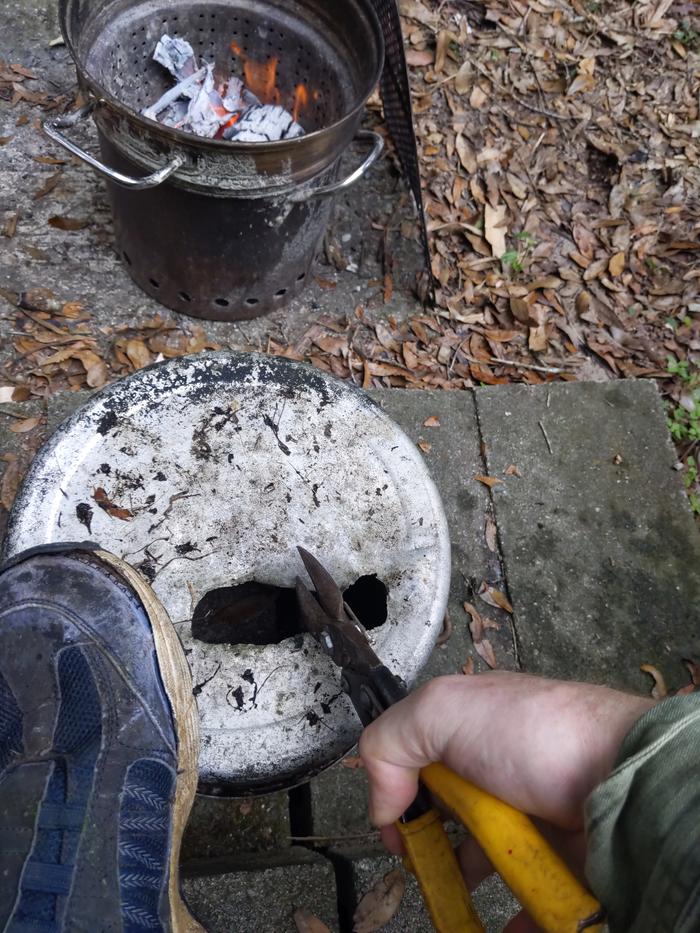

Today I decided to test out making a sand battery. I had this old pot with a hole in the bottom, I then took two cans cut out the bottom on those and put inside the pot over the hole then filled the pot with sand fir the first layer. Second layer I cut down the can a bit so it would fit in the pot and I laid in another layer of sand. For this first go around I had temps at the bottom at 325 degrees and at the top at 165 degrees.... After this I brought is inside put a welding blanket inside the cooler and put the pot inside.... I noticed a large amount of moisture building up inside the cooler, which figures as the sand I used was from outside. I am formulating how I could improve the heating of the sand was a fun experiment.
[Thumbnail for IMG_20221220_124253.jpg]
[Thumbnail for IMG_20221220_124101.jpg]
[Thumbnail for IMG_20221220_124054.jpg]
[Thumbnail for IMG_20221220_124053.jpg]
[Thumbnail for IMG_20221220_120808.jpg]
[Thumbnail for IMG_20221220_120801.jpg]
[Thumbnail for IMG_20221220_120052.jpg]
[Thumbnail for IMG_20221220_115404.jpg]

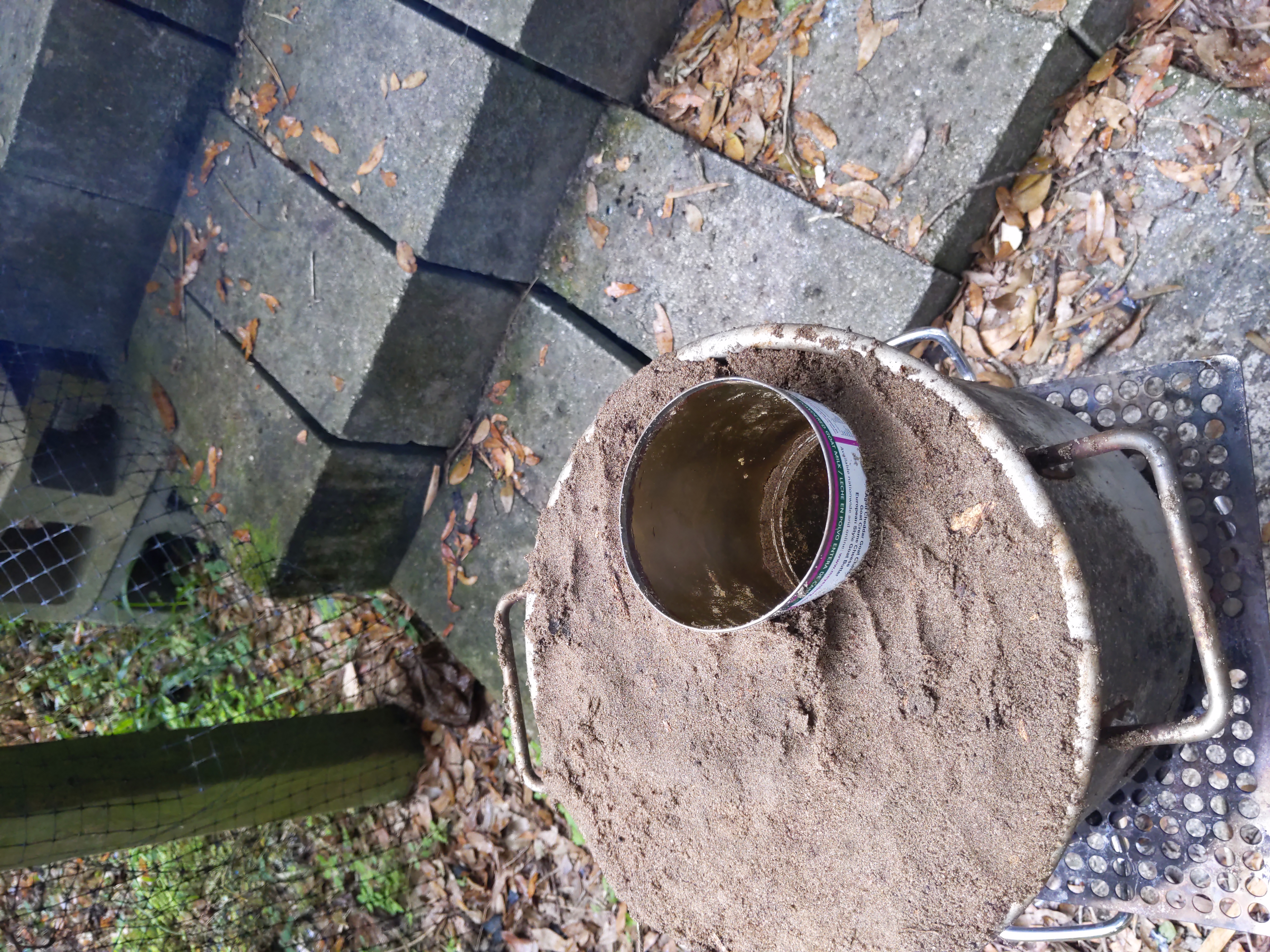

[Thumbnail for IMG_20221220_115015.jpg]

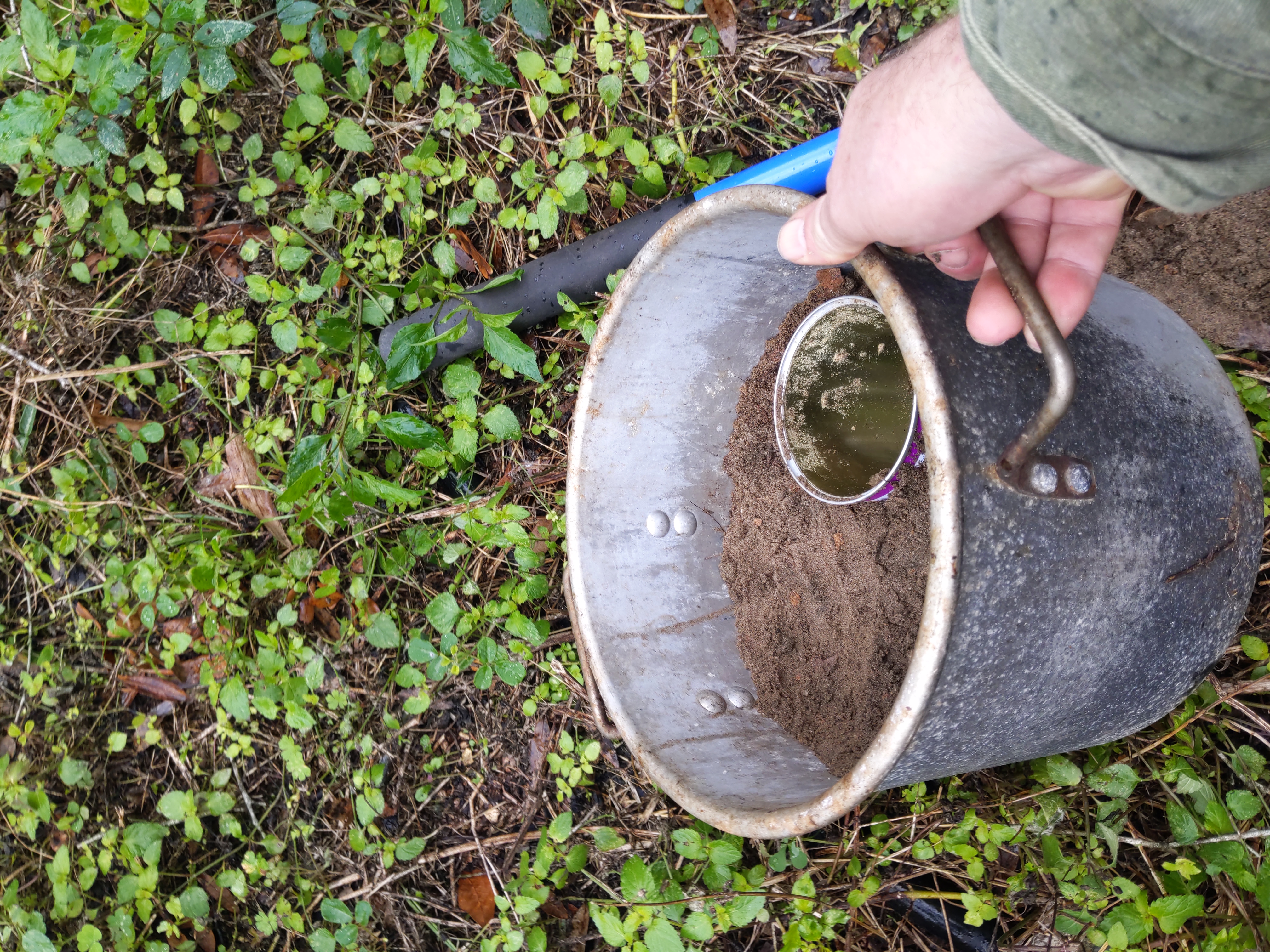

[Thumbnail for IMG_20221220_114641.jpg]
[Thumbnail for IMG_20221220_114637.jpg]
[Thumbnail for IMG_20221220_114437.jpg]
[Thumbnail for IMG_20221220_114432.jpg]
[Thumbnail for IMG_20221220_114401.jpg]
[Thumbnail for IMG_20221220_114230.jpg]
[Thumbnail for IMG_20221220_114038.jpg]
[Thumbnail for IMG_20221220_114032.jpg]
[Thumbnail for IMG_20221220_114026.jpg]

Rocket Scientist
Posts: 4379
Location: Upstate NY, zone 5
519
5
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Damp sand will absorb and transmit heat more readily than it will when dried (vapor/steam migration), so unless you expect to use a water/sand hybrid, you will need to dry it out before making meaningful tests for function.

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Glenn Herbert wrote:Damp sand will absorb and transmit heat more readily than it will when dried (vapor/steam migration), so unless you expect to use a water/sand hybrid, you will need to dry it out before making meaningful tests for function.



You are on target.

Other videos I have seen have said the same thing.

I would expect a few cycles of this should get rid of most of the moisture,   but I do have some sand that i have dried that I could use.

Thank you for your input,     this is the first prototype, and it is teaching me many things  with just building this one.

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

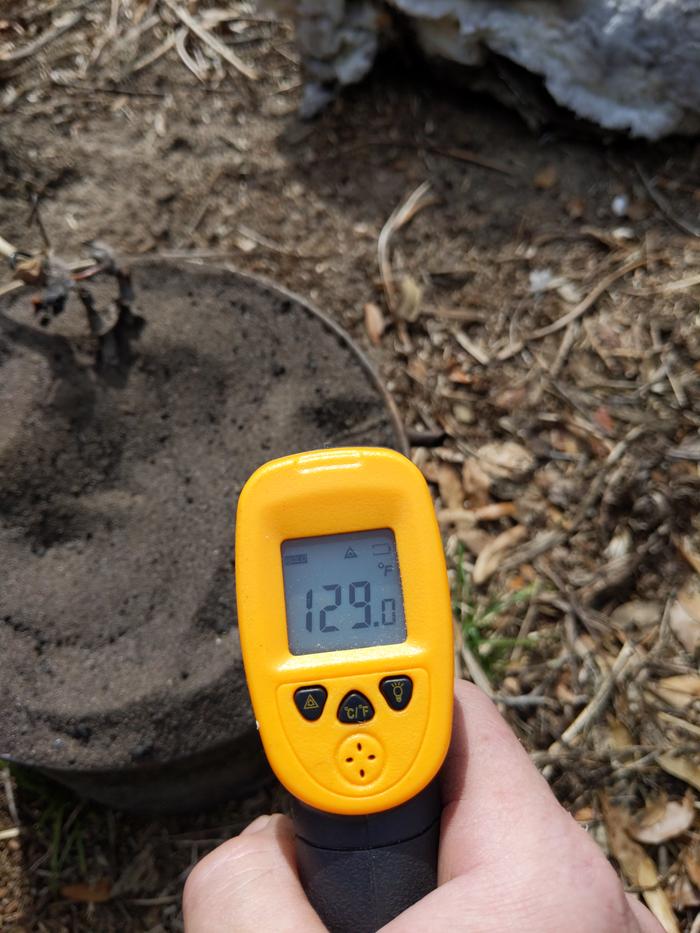

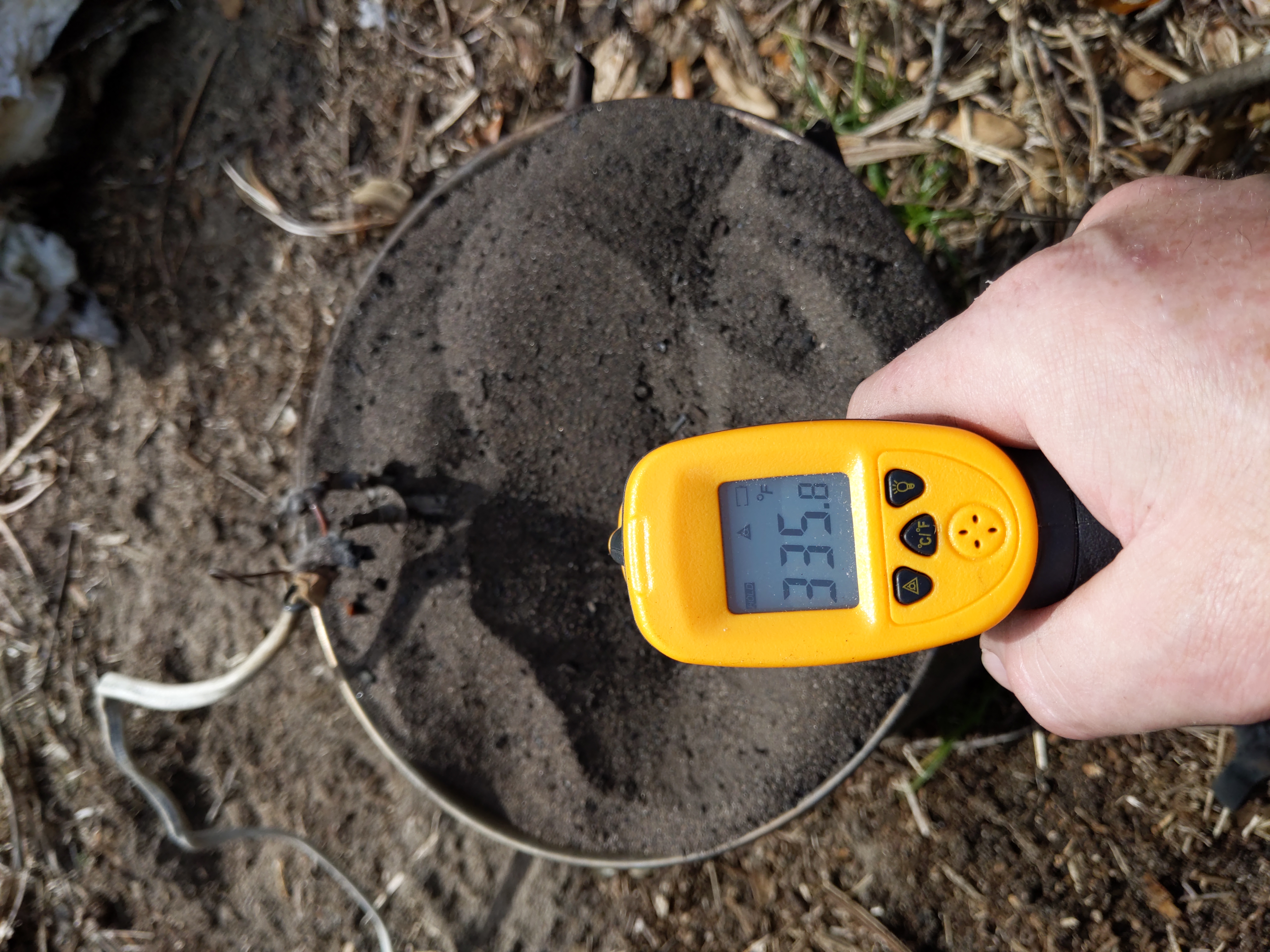

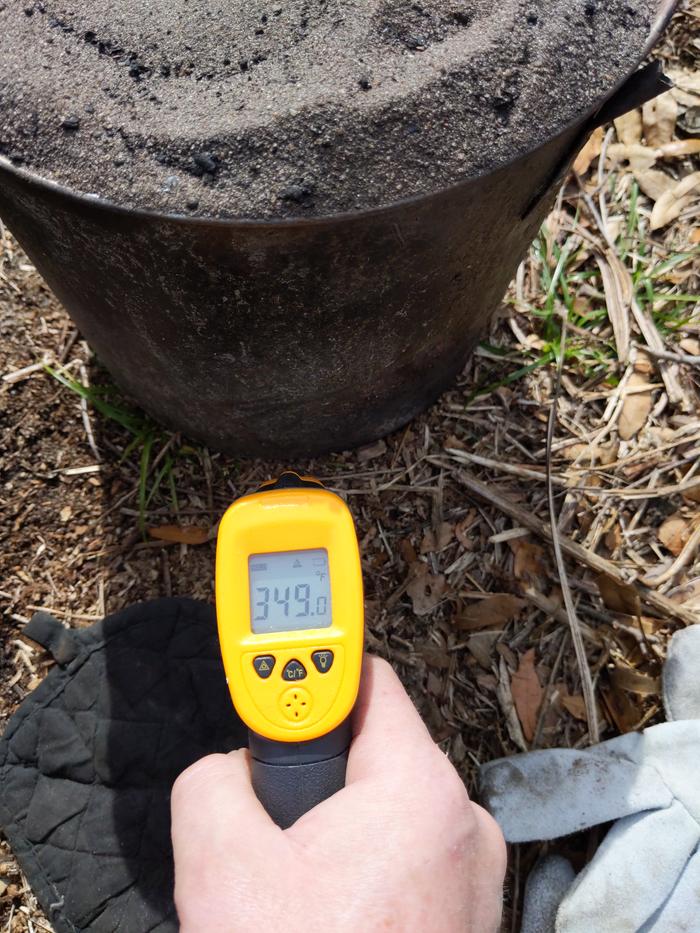

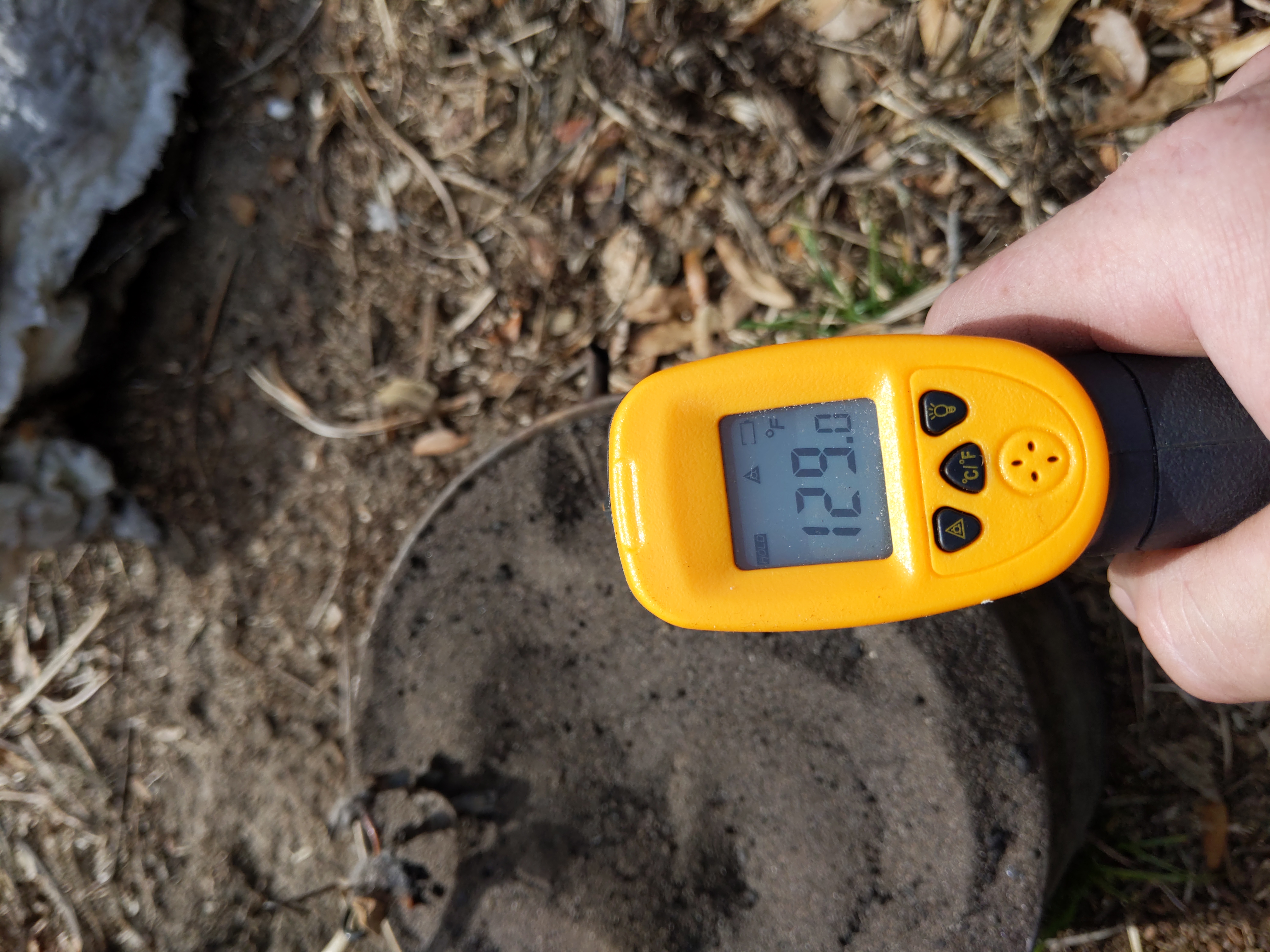

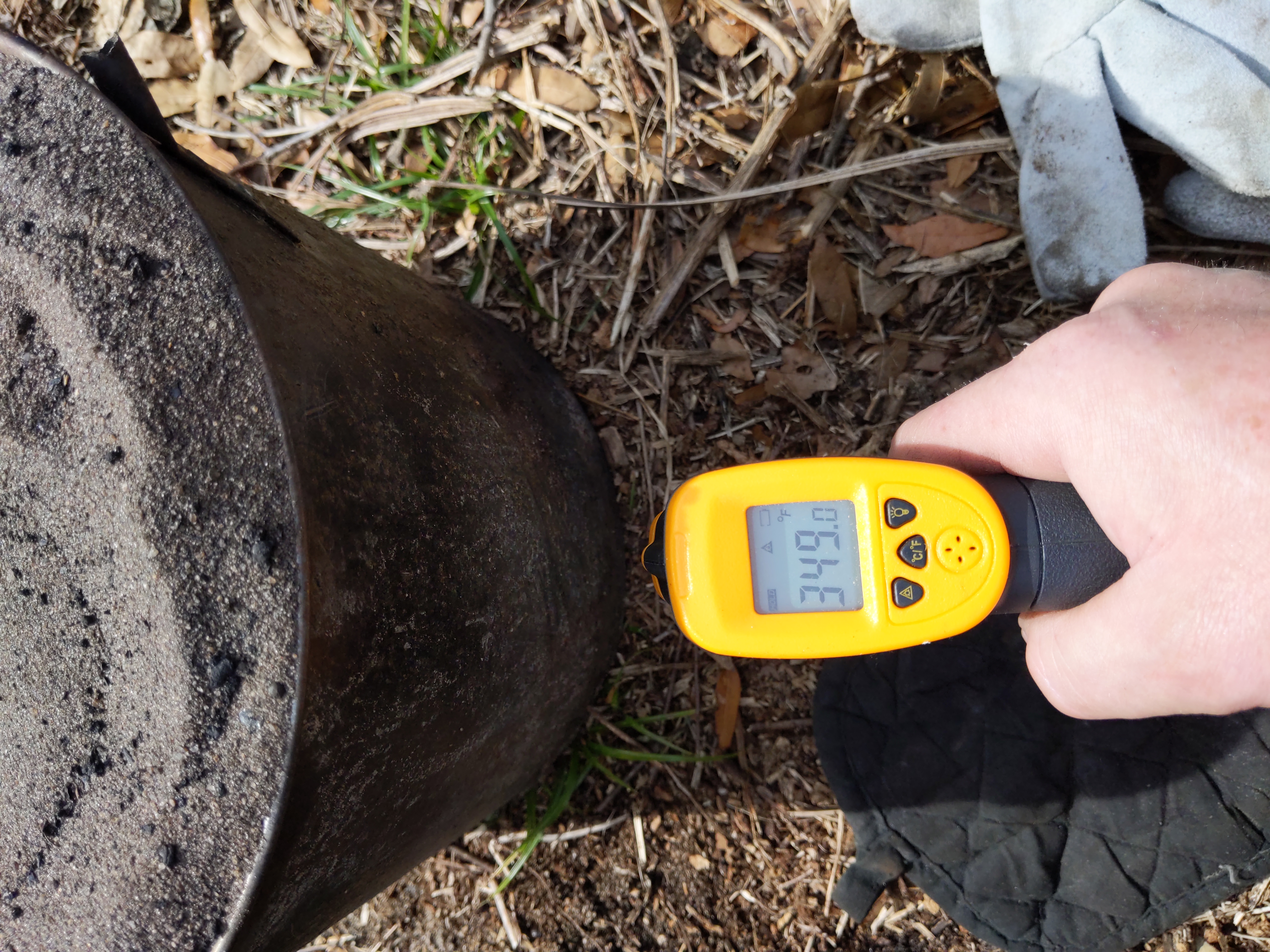

After I dried 8 quarts of sand I put in a bread machine heating element.     I am getting much higher temps.       Now I am looking to move on to a 100 gal propane cylinder filled with sand.


To heat I use 4 solar panels in series to power the bread machine coil.
[Thumbnail for IMG_20230123_134740.jpg]
[Thumbnail for IMG_20230123_134712.jpg]
[Thumbnail for IMG_20230123_134707.jpg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Today,  I switched to a Stove burner, put it into the sand, got 500 - 700 deg with the sand.

I found this video with a sand battery build, I am seriously impressed !


pioneer
Posts: 334
34
chicken wood heat rocket stoves
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thank you for sharing that video.  Amazing how much waste heat was reclaimed via that simple system.  Though to be sure, water heaters aren't make like that in my neck of the woods.

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Update:

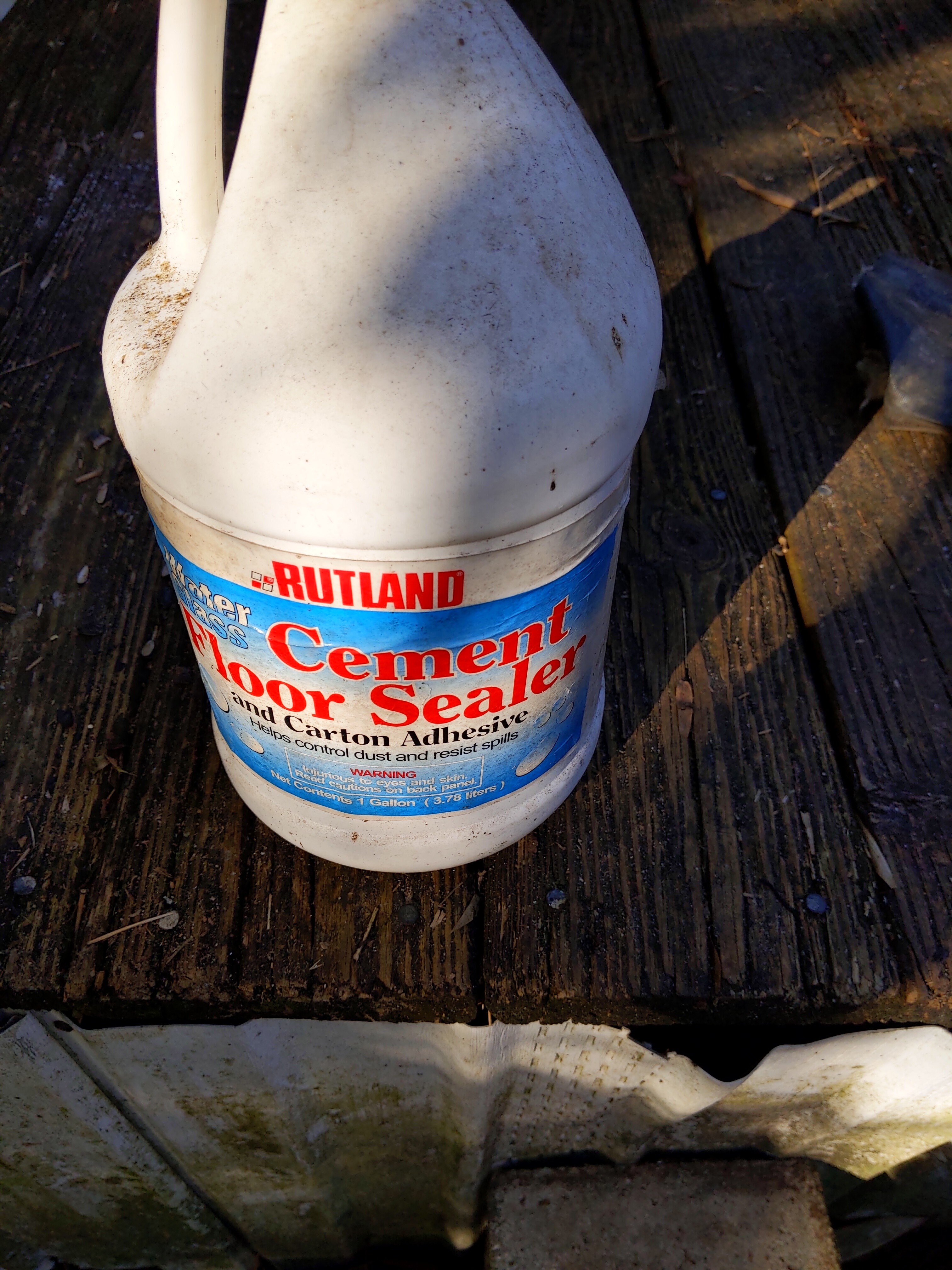

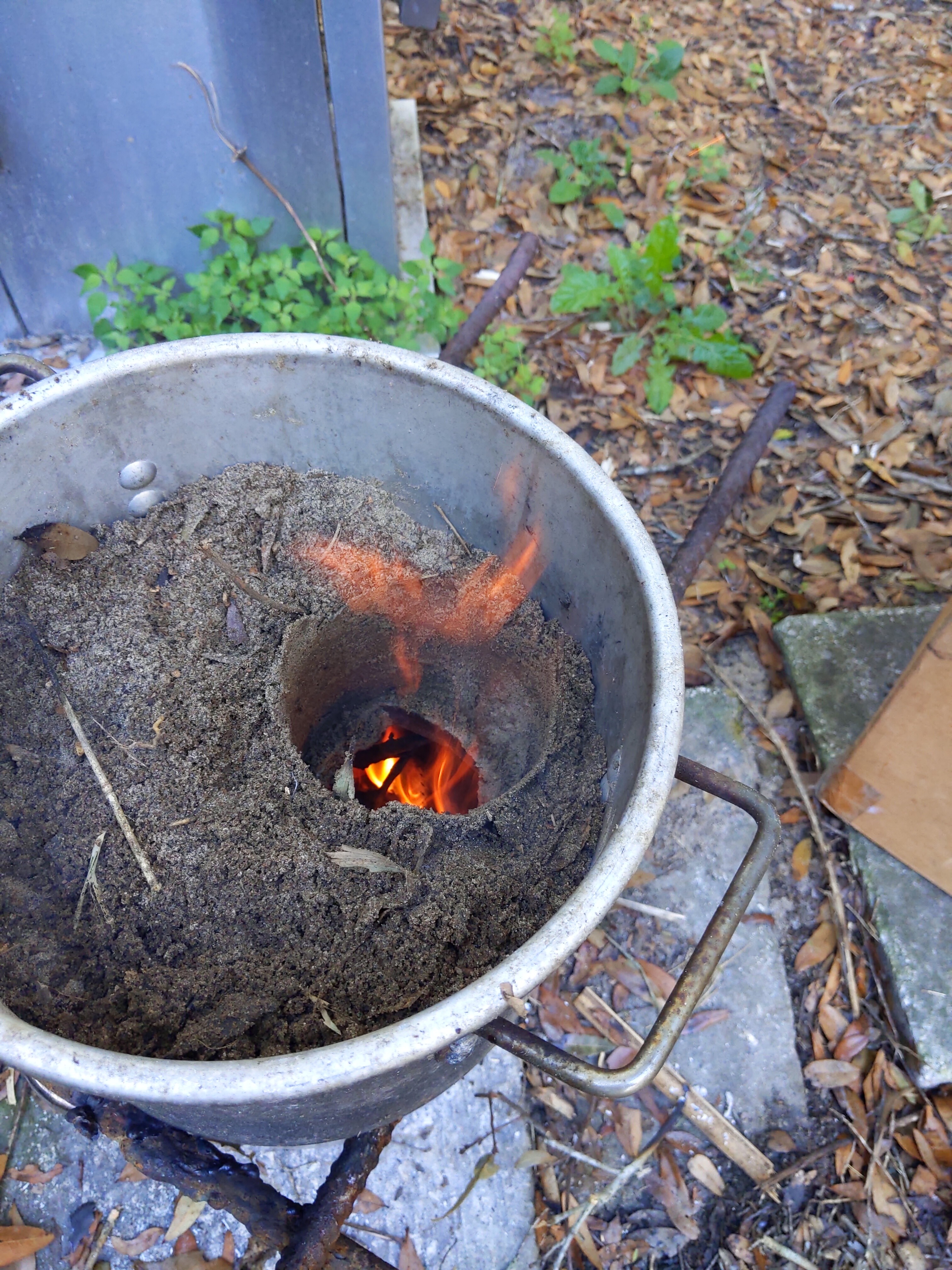

Waterglass  + Sand =   Chimney


I was thinking the other day how could I make a chimney that would stand up against the 900 + temps I am reaching with the various rocket stoves I have been making. Then it hit me, I could combine water glass with sand and use the same material used for make metal moulds.... First test worked like a champ sand was cured with the co2 created with the burning of wood. So I could stack pots like this for a chimney that should be most durable, and insulated thus creating a much greater draw. I first packed sand into the pan around the PVC, removed the PVC, then I carved out about 1 inch of sand around the tube, then filled that tube with the pvc in the inside with the water glass mixture.

First prototype looks to work great.     I will add more pans.

[Thumbnail for IMG_20230206_093846.jpg]
[Thumbnail for IMG_20230206_092912.jpg]
[Thumbnail for IMG_20230206_092902.jpg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
So I have I have built a solar water heater with pex  as DesertSun02 on youtube has built..

I have combined this with 4  260 watt solar panels hooked directly to the hot water heating coil ( no battery, no inverter ),   and with my ghetto insulated 55 gal tank filled with 40 gal of water I was able to raise the temp of 40 gal of water to 112 deg F yesterday.       This morning it was at 100 deg F   so that means my ghetto insulation is doing it's job.


Now I can take a very long hot shower all powered by the sun!


Now this was the ground work I needed to lay for my idea.....

My idea is to take  the pex heater and the coil heater and heat the water and using a heat exchange made with pex store this heat in a sand battery.

My thought is that once charged to say 180 degrees, I can run cold water thru  that heat exchange with the heated sand and get hot water out for showers....       In theory...    Only testing will prove this out.

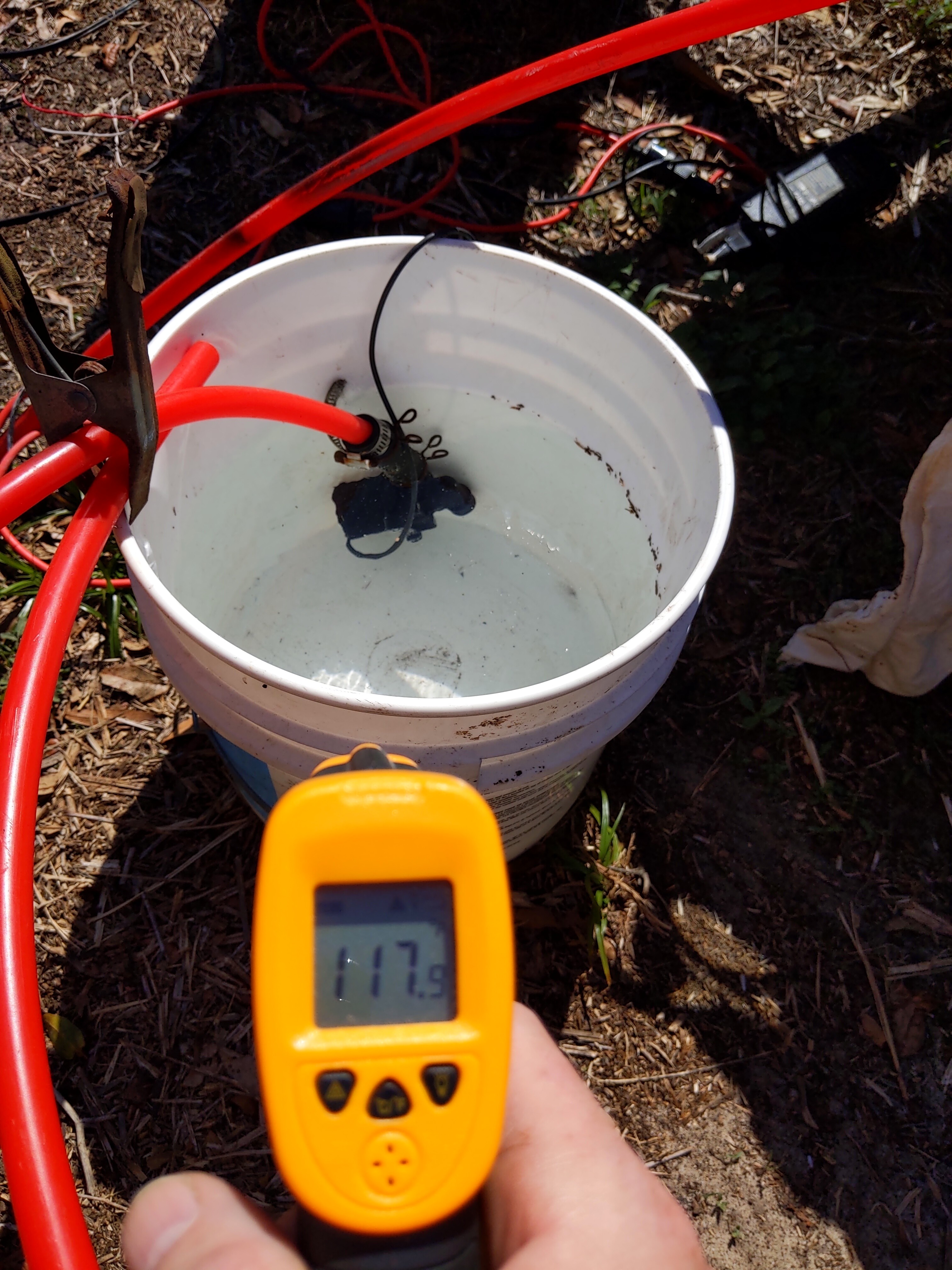

[Thumbnail for IMG_20230226_132704.jpg]
[Thumbnail for IMG_20230226_115135.jpg]

pollinator
Posts: 887
Location: Central Ontario
157
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Mart Hale wrote:So I have I have built a solar water heater with pex  as DesertSun02 on youtube has built..

I have combined this with 4  260 watt solar panels hooked directly to the hot water heating coil ( no battery, no inverter ),   and with my ghetto insulated 55 gal tank filled with 40 gal of water I was able to raise the temp of 40 gal of water to 112 deg F yesterday.       This morning it was at 100 deg F   so that means my ghetto insulation is doing it's job.


Now I can take a very long hot shower all powered by the sun!


Now this was the ground work I needed to lay for my idea.....

My idea is to take  the pex heater and the coil heater and heat the water and using a heat exchange made with pex store this heat in a sand battery.

My thought is that once charged to say 180 degrees, I can run cold water thru  that heat exchange with the heated sand and get hot water out for showers....       In theory...    Only testing will prove this out.


So... I have to point out that those 4 250 watt solar panels could raise 10 gallongs on water to 150-170 degrees f in an hour...

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

David Baillie wrote:

Mart Hale wrote:So I have I have built a solar water heater with pex  as DesertSun02 on youtube has built..

I have combined this with 4  260 watt solar panels hooked directly to the hot water heating coil ( no battery, no inverter ),   and with my ghetto insulated 55 gal tank filled with 40 gal of water I was able to raise the temp of 40 gal of water to 112 deg F yesterday.       This morning it was at 100 deg F   so that means my ghetto insulation is doing it's job.


Now I can take a very long hot shower all powered by the sun!


Now this was the ground work I needed to lay for my idea.....

My idea is to take  the pex heater and the coil heater and heat the water and using a heat exchange made with pex store this heat in a sand battery.

My thought is that once charged to say 180 degrees, I can run cold water thru  that heat exchange with the heated sand and get hot water out for showers....       In theory...    Only testing will prove this out.


So... I have to point out that those 4 250 watt solar panels could raise 10 gallongs on water to 150-170 degrees f in an hour...




Yes that sounds reasonable, unless you have a cloudy day.         I  am glad to see temps that are in a good warm shower range,    I am thinking of lowering the water level to see how high a temp I can get at 20 gallons.

gardener
Posts: 5032
Location: Cincinnati, Ohio,Price Hill 45205
953
forest garden trees urban
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Thomas Tipton wrote:Thank you for sharing that video.  Amazing how much waste heat was reclaimed via that simple system.  Though to be sure, water heaters aren't make like that in my neck of the woods.



Where I live natural gas water heaters have a central chimney with a spiral metal plate that slows the exhaust gasses.
No spiral heat exchanger, but made to transfer heat from exhaust to water.
It just now occurred to me that you could cap that central chimney and add a plunger tube to it.


Thomas Tipton
pioneer
Posts: 334
34
chicken wood heat rocket stoves
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
William.  Could you elaborate a little more on what you would do with said "Plunger Tube" and how that would work in the water heater tank.

I have such a tank plumbed with threaded fittings at the top and bottom of the "Central Chimney" that I intend to use for the solar collector side of a solar thermal hot water heater.  In which case it would radiate the heat into the 50 gallons of domestic water in the outer jacket.  What are you thinking???

Glenn Herbert
Rocket Scientist
Posts: 4379
Location: Upstate NY, zone 5
519
5
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I don't think a plunger tube would work in a gas water heater conversion (to RMH power); the central flue is already smallish and trying to fit a plunger as well would choke off airflow too much.  The hot gases would have to go up and back down to reach the plunger inlet. Given surface layer effects, this would allow only a tiny amount of airflow.

If you were thinking of using hot water flowing through the original flue, considering the spiral vanes I think it would work fine to just run it straight (spiraling) through from top to bottom, heating the contained water without mixing it with the solar collector fluid.

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

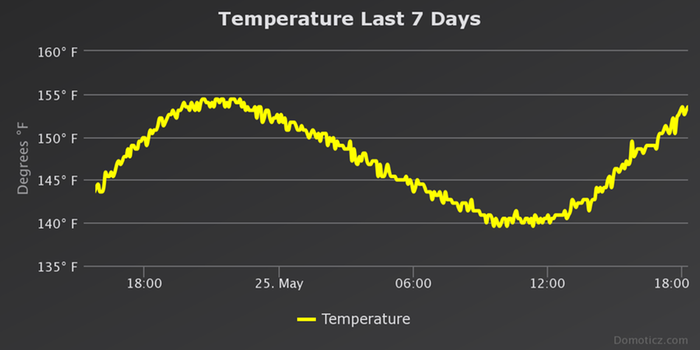

In the midst of testing solar water heating I became very impressed with heating the 40 gal of water with 4 solar panels hooked directly to a hot water heater element ( no battery, no inverter ).

I decided to move down to 20 gal of water, and so far this is the climb in temp in F.

Matching resistance in ohms of the coil or getting close makes a HUGE difference in output.

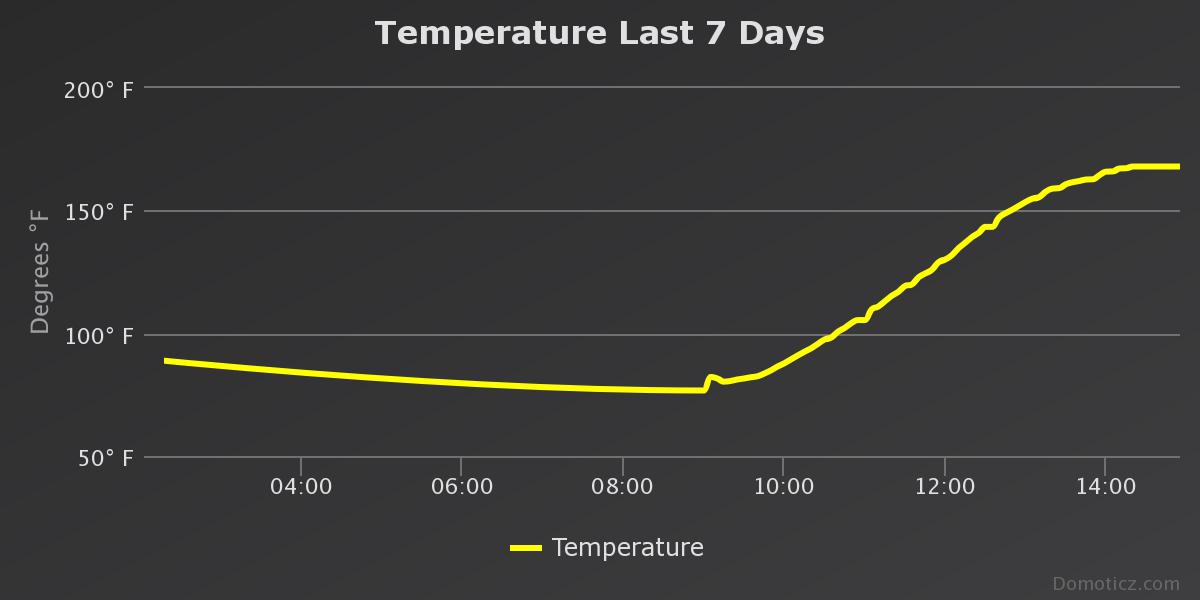

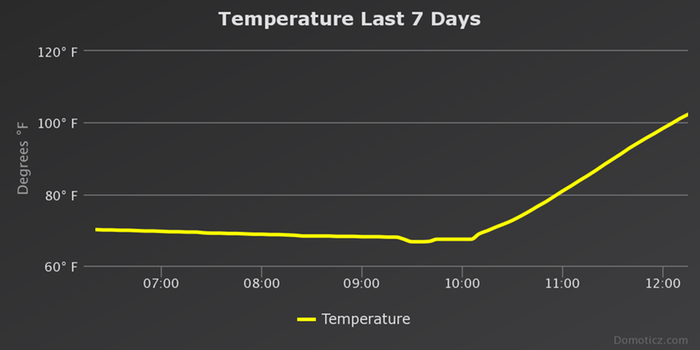

I was able to raise the 40 gal up to over 150 degrees with Solar +  Pex,  but this I believe destroyed my water pump for some reason.

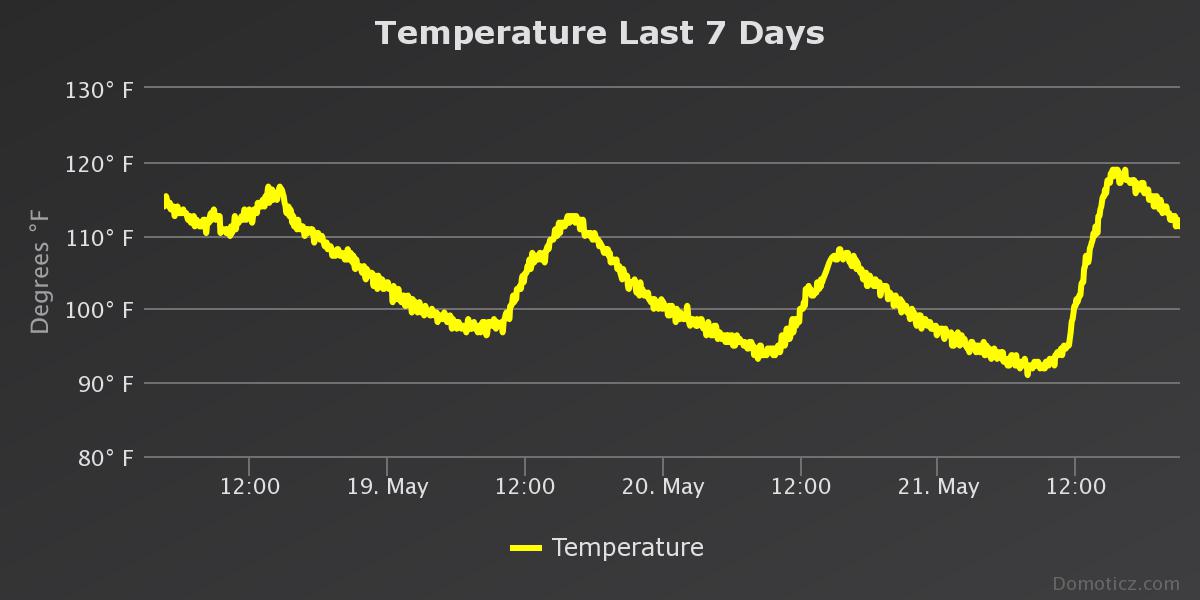

So...    Since the solar water heating is working so well I have moved the tank next to my bathroom window where I will heat the water with solar, then pump this water inside for a LONG LONG shower.......           Science does pay back ;-)

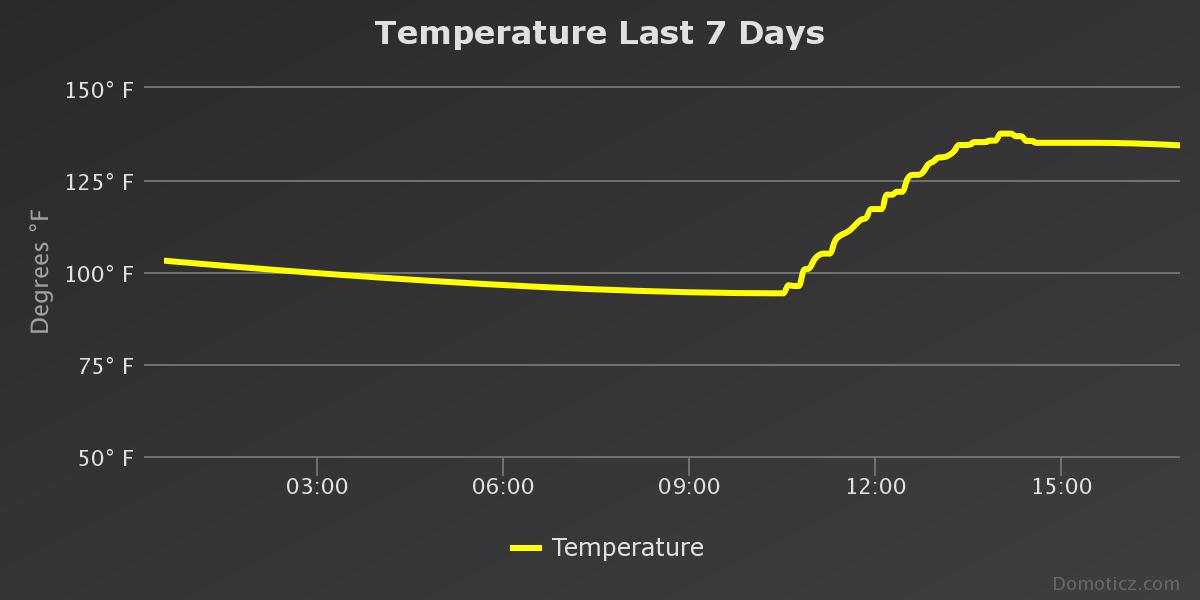

[Thumbnail for temperature-last-7-days.png]

William Bronson
gardener
Posts: 5032
Location: Cincinnati, Ohio,Price Hill 45205
953
forest garden trees urban
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
A "plunger tube" is a a flue pipe that is run from the top of a bell, through the interior, to a point near the bottom of the bell.
A bell refers to a enclosed space where hot gasses (usually products of combustion ) are exhausted and allowed to stratify, the coolest gases falling to the bottom , the hottest rising to the top.
In a bell, the plunger tube is one way to allow gasses to escape.
You could also run a flue out of the bottom or side of the bell.
I think a plunger tube will heat up faster, thereby drawing better and it allows a design that doesn't pierce the sides or bottom of the bell.

Glenn, you are absolutely correct, most of the water heaters I have seen use a 4" diameter flue. which would leave very little space for a plunger tube.
That being said, I've only worked with water heaters in the 40-50 gallon range.
I am speculating that the water heaters in the 80-120 gallon range might have substantially bigger flues, allowing space for a plunger tube.
I am also curious as to how a tiny flue might perform inside a 4" diameter space.
EMT conduit could be pressed into service, or chain link fence  top rail.
I have found that my 3(?) gallon TLUD performs quite well when the 6" chimney is necked down to 4".
Inspired by Permaculture Playground  Carbon Conscious Creations I have built even smaller diameter Tluds.
The way a Tlud burns makes me think they can deal with more restriction than rocket stoves:

https://youtube.com/shorts/HDebxvSQlkU?feature=share


Thomas, I 'm not sure I am picturing what you are describing, but from what I'm getting, a plunger tube would not serve your purposes.


Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Progress so far,

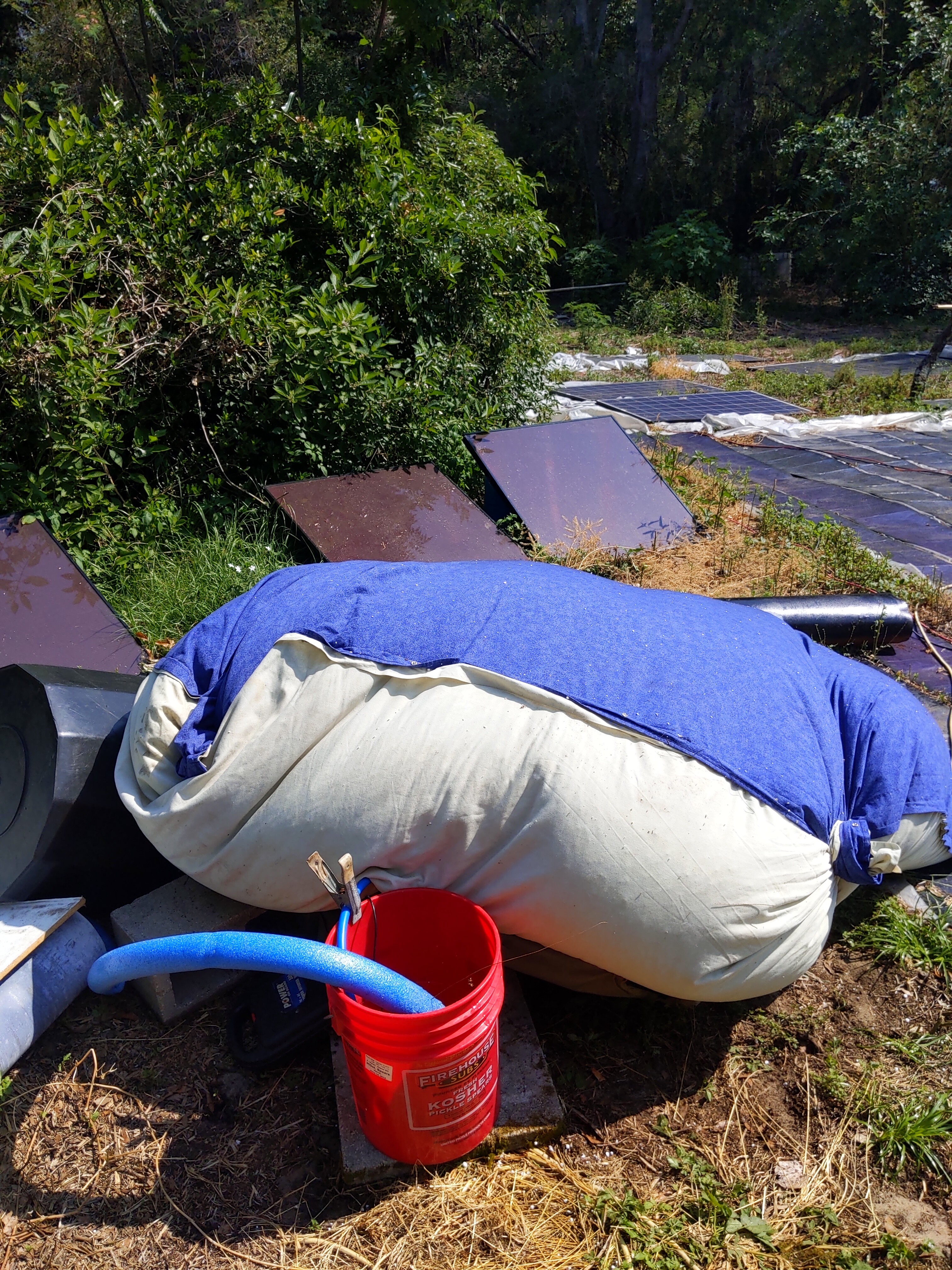

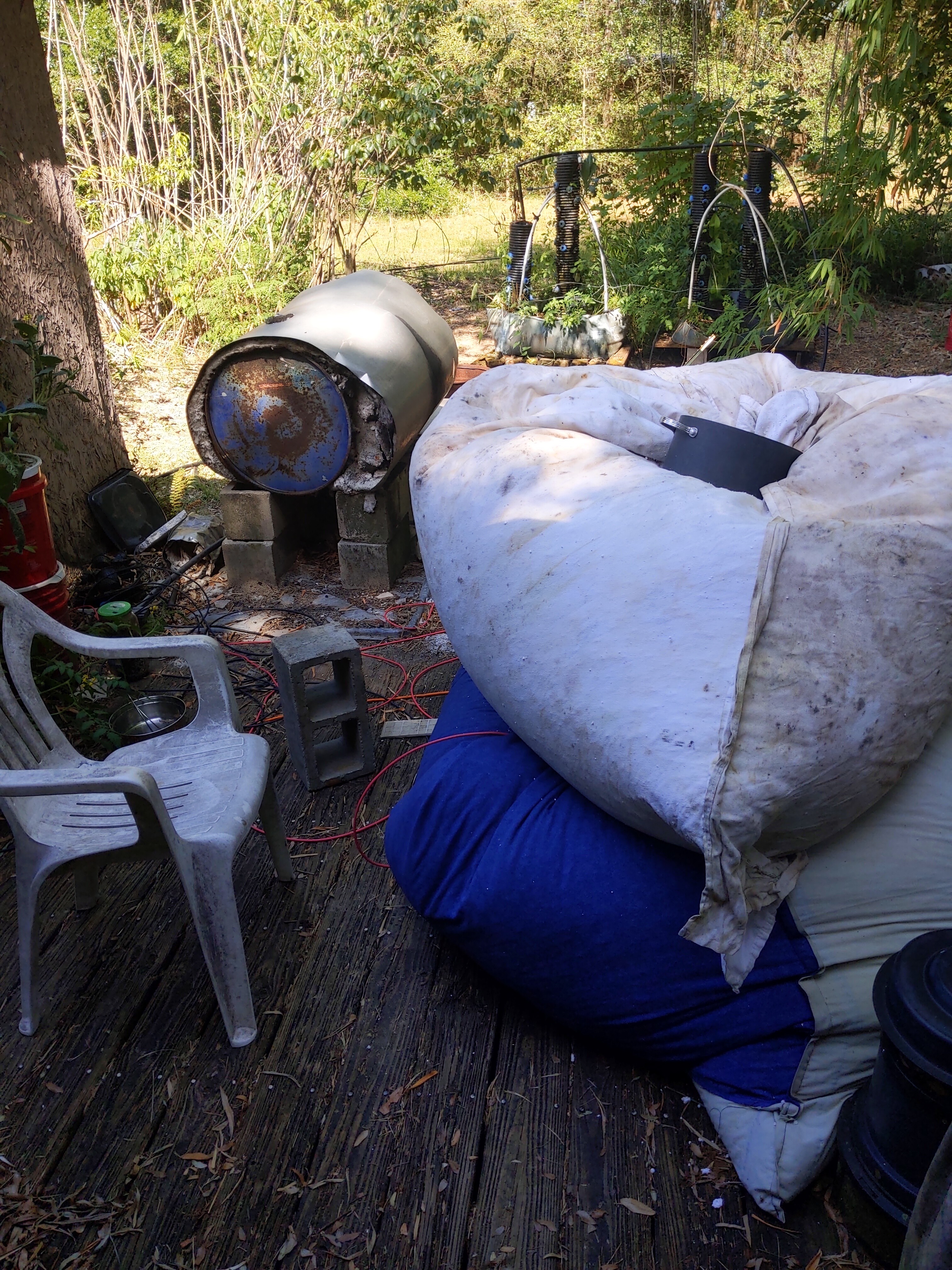

I am now doing test with insulation combined with a sand battery.      I am using a single 260 Watt solar panel hooked to some restive heaters in the sand,  inside 2 HUGE HUGE 4 foot cubed  bags with chopped up styro foam  inside them.

Last night the temp  went from 150 deg F   to 85 deg  F    after 12 hours......            Outside temp was 65 deg,    I believe starting 20 degr  higher should raise the initial temp up each day I have  the sand stored in this much insulation.       I need to  improve this setup so I can have this setup and not need to move it because of rain...


I am starting to see that  this   thermal cooker /  sand cob oven ( in a sense of it's thermal mass )     could ramp up heat over time over a few days building on the heat of the days before...         I want to document  this, but my wifi thermometer  can only go up to 200 deg :(

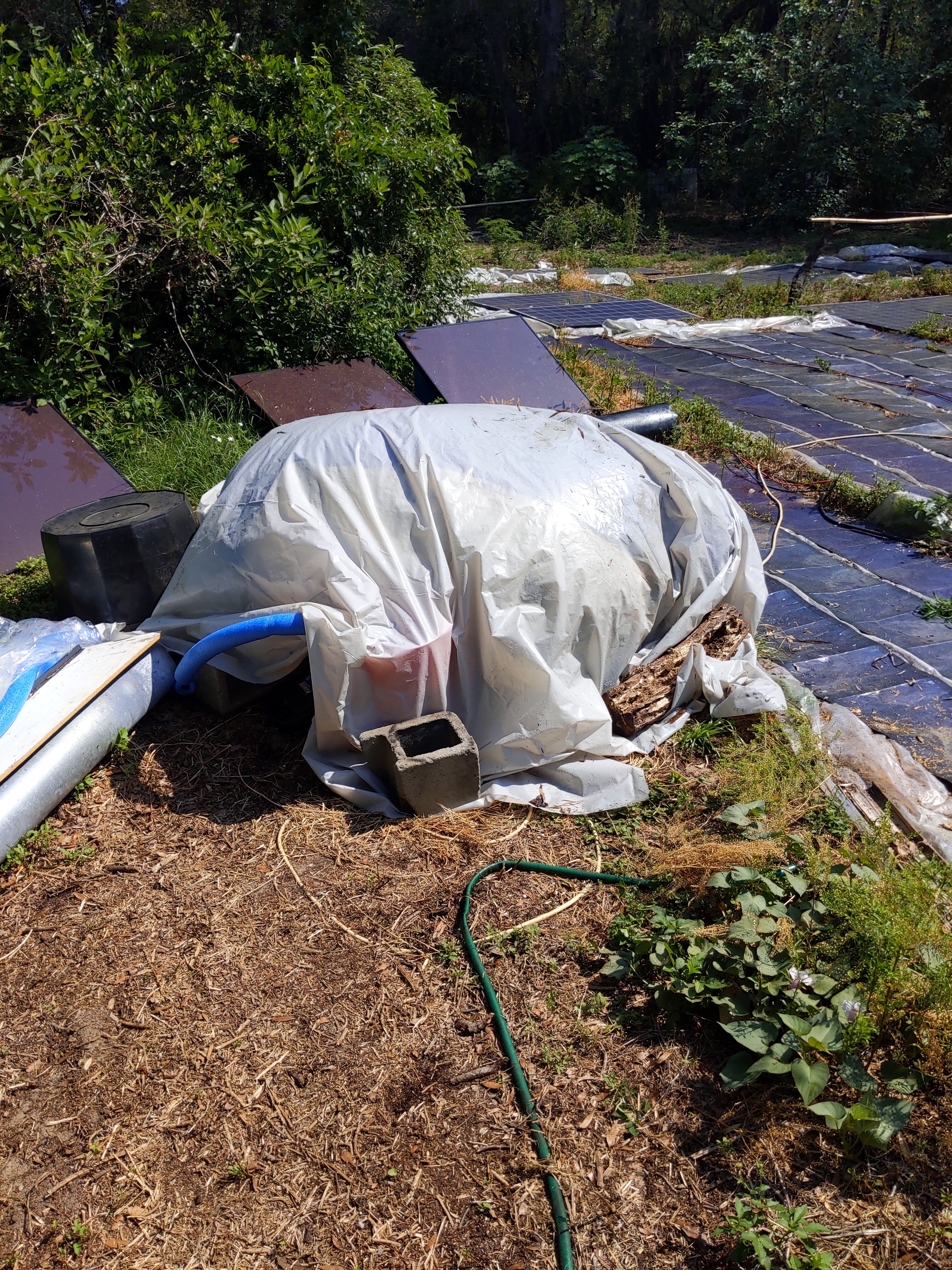

But I am glad to be making progress,  I may just put a tarp over the setup and put down cement blocks so I can run this thru rainy days.
[Thumbnail for IMG_20230508_162522.jpg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
And more progress...

In order to have a heat source for my sand battery, I have been perfecting my solar heat collector.

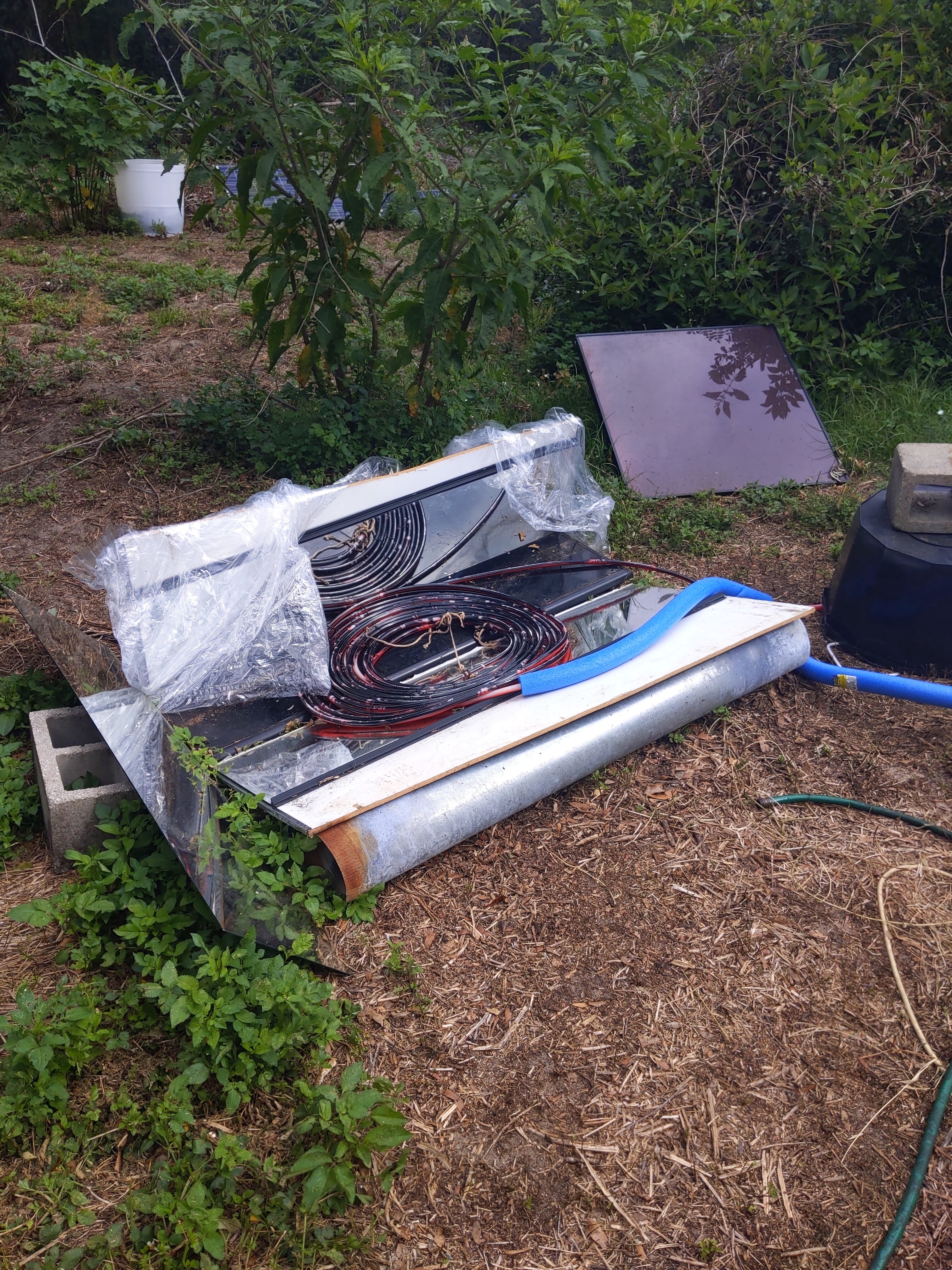

I have taken a design by Desert Sun on youtube with painting pex pipe black with mirrors on the pex,  and using a circulating pump  I have been successful in raising the temp of a 5 gal bucket from 80 deg to 132 in  5 hours time.      This has worked great for me to have a nice hot shower.

The next leg on this journey is to take this heat  and put it in dry sand thermal mass, and then insulate this.     I am curious how long will the heat stay in the sand battery, and what is the right amount of  sand to pex pipe ratio ?

If nothing else I am getting hot showers for the cost of running a pump for 5 hours on a sunny day, the pump pulls 50 watts of power so this is an excellent capture of heat from  80 degrees to 132 in 5 hours for very little electricity.

Free hot showers are wonderful   :-)
[Thumbnail for IMG_20230506_103029.jpg]
[Thumbnail for IMG_20230506_103008.jpg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I have dried several 5 gal buckets of sand in my rocket oven wet sand is not very good at storing heat.



I now have built a solar hot water heater able to take 5 gal of water at 80 deg to 132 deg in 5 hours.

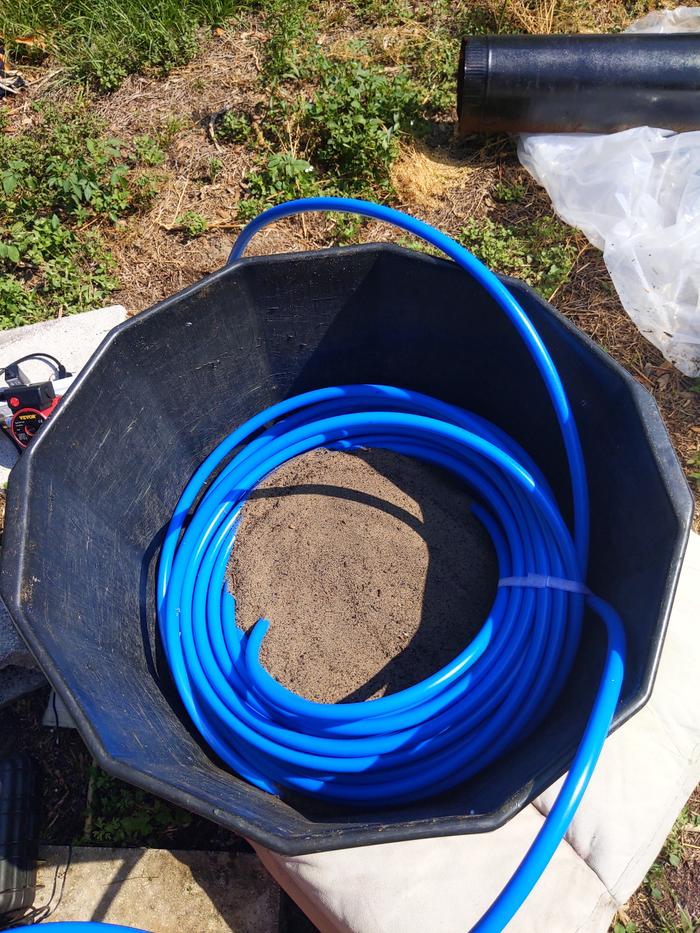

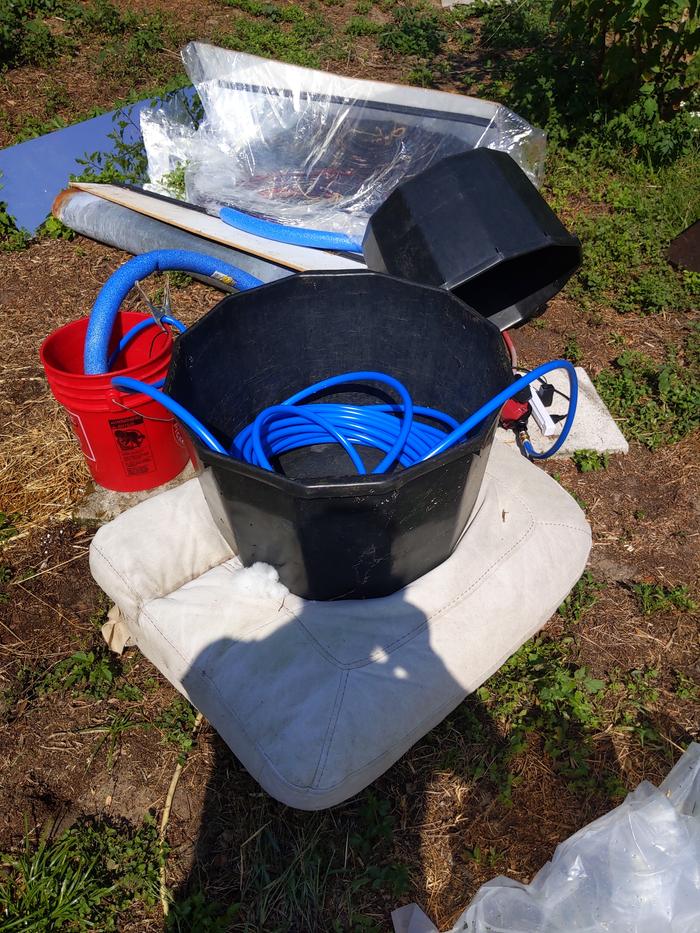

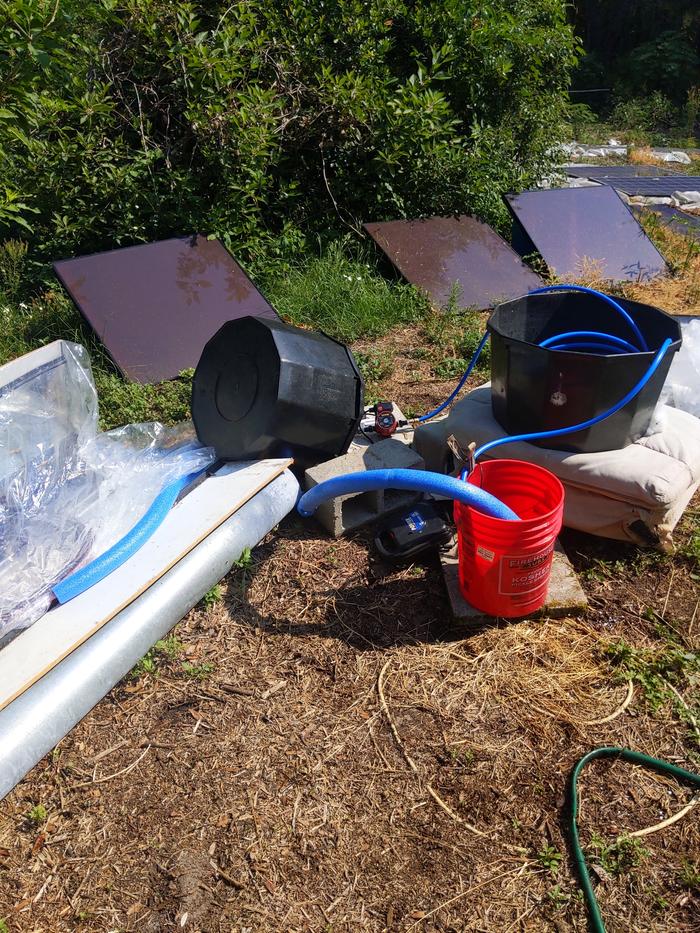

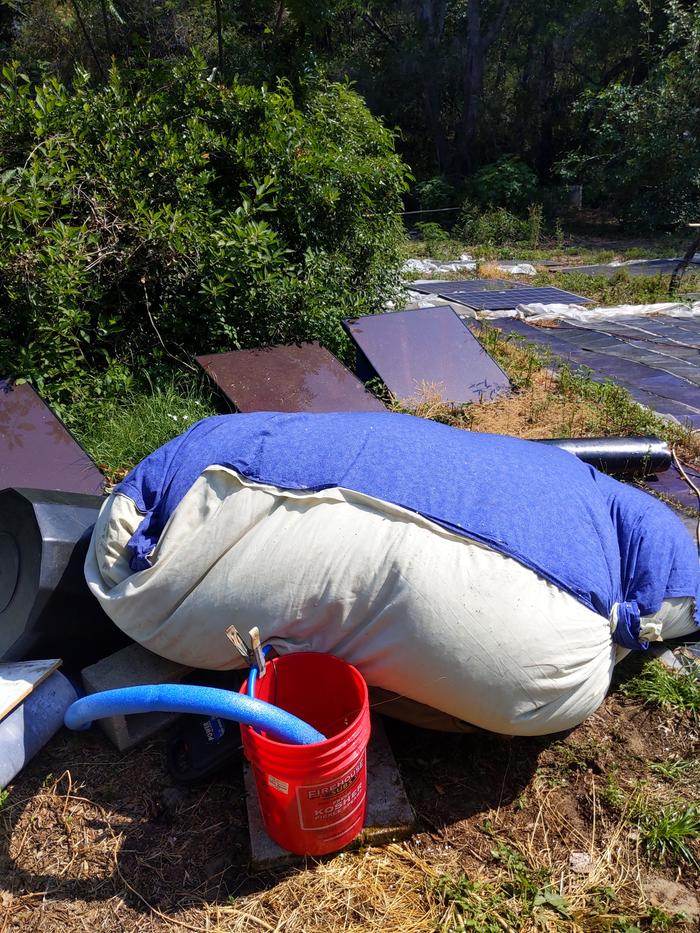

Now I have put 100 foot of pex into a black container, connected to the solar hot water heater and pump I am now re circulating the solar heated water thru the sand. I hope to use the sand as a battery ( like a hot water heater ) to capture the heat for later use. I have covered the sand with a bag of loose styrofoam, and put some insulation underneath. Finally I can get some data on what this sand battery can do.
[Thumbnail for IMG_20230510_105542.jpg]
[Thumbnail for IMG_20230510_105225.jpg]
[Thumbnail for IMG_20230510_103956.jpg]
[Thumbnail for IMG_20230510_103831.jpg]
[Thumbnail for IMG_20230510_103821.jpg]

David Baillie
pollinator
Posts: 887
Location: Central Ontario
157
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Mart Hale wrote:I have dried several 5 gal buckets of sand in my rocket oven wet sand is not very good at storing heat.



I now have built a solar hot water heater able to take 5 gal of water at 80 deg to 132 deg in 5 hours.



Now I have put 100 foot of pex into a black container, connected to the solar hot water heater and pump I am now re circulating the solar heated water thru the sand. I hope to use the sand as a battery ( like a hot water heater ) to capture the heat for later use. I have covered the sand with a bag of loose styrofoam, and put some insulation underneath. Finally I can get some data on what this sand battery can do.



So the math goes roughly like this and pardon my imperial I don't use it much...
1btu per degree F per pound of water 5gallons= approx 40lbs So 40 btu to raise it 1 degree F so 40 btu x 52 degrees = 2080 BTU rise is 5 hours. Translated that is 2080 BTU/3.41 = 610watts of heating  from your solar array... You used 250 watts of electricity for the circulator motor though so net gain is down to 360 watts. Now conclusions are up to you of course.  It does illustrate well why solar thermal kind of went out of fashion once the price of solar electric panels dropped though. Using the 250 watt surplus panel you already have you could have accomplished the same thing in 2.44 hours plus some losses so call it 3 hours even with a 24 volt heating element and a 24 volt relay
cheers,  David

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

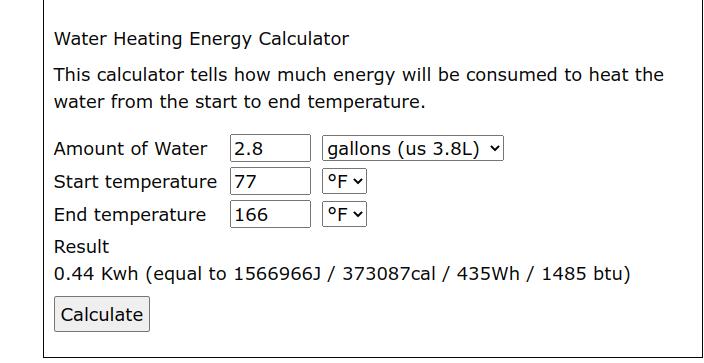

Your math does add up pretty close...    But I am not sure about what you think the inputs are...   nor do you understand the extra losses I have in this system as I gave a very basic overveiw.

The input was 50 watts of power for the pump for 5 hours.  (excluding the solar heater input )           So that would be 250 watt hours of input power, to get 610 watt hours of  heat output.


What is not included in this equation is the loss I am getting from a 5 gal bucket that is not insulated  at all,  nor is it including that I have a 100 foot of pex  also attached that is not insulated  also adding heat loss.     Once that is in the sand battery and fully insulated it should greatly help this equation.


So, I don't think you are comparing apples to apples...         To be fair, I have not fully documented the full setup.......  so hard to follow what I am doing....   but your math is close.....






>So the math goes roughly like this and pardon my imperial I don't use it much...
>1btu per degree F per pound of water 5gallons= approx 40lbs So 40 btu to raise it 1 degree F so 40 btu x 52 degrees = 2080 BTU rise is 5 hours. Translated that is 2080 >BTU/3.41 = 610watts of heating  from your solar array... You used 250 watts of electricity for the circulator motor though so net gain is down to 360 watts. Now >conclusions >are up to you of course.  It does illustrate well why solar thermal kind of went out of fashion once the price of solar electric panels dropped though. Using >the 250 watt >surplus panel you already have you could have accomplished the same thing in 2.44 hours plus some losses so call it 3 hours even with a 24 volt heating >element and a 24 >volt relay
>cheers,  David

[Thumbnail for img-(3).jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I gave this some more thought.....

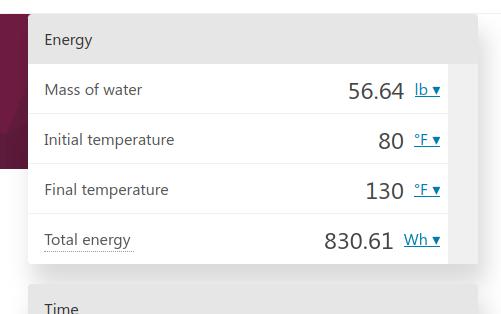

There are 200 feet of pex line,   100 feet of pex line holds .9 gal    so I have 1.8  gal of water in the pex line that is also heated.....

So revised figures.

250 watt hours in,    810 watt hours out,    with much loss because no insulation.....
[Thumbnail for img-(3).jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I think I can bring down the 250 watt hours in, by turning on the pump every 10 min, then shutting it off every 10 min....         It would be interesting to see  how this would affect the temp rise....    or do ever 30 min.... off 10 min on.


David Baillie
pollinator
Posts: 887
Location: Central Ontario
157
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Mart Hale wrote:I think I can bring down the 250 watt hours in, by turning on the pump every 10 min, then shutting it off every 10 min....         It would be interesting to see  how this would affect the temp rise....    or do ever 30 min.... off 10 min on.

you could do a motor speed controller to cut wattage but maintain some flow. Might be safer.

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Setup yesterday:

100 foot of Pex painted black thin plastic coating. mirrors.

100 foot of pex in sand battery     About 4    5-gal buckets of sand.

Reticulation pump    pulling 50 watts.

5 gal bucket  filled with  2 gal of water.


Yesterday this was my setup....         and I reached 137 degree water temp....

Today I replaced the 5 gal bucket with 1 gal of water inside  a solar vacuum tube  cooker...          So instead of getting neg energy from the un insulated bucket, now I will be getting more heat....    less water in the system now so temps should climb quicker.

This system is not closed so no danger of steam ..... no "BOOM SQUISH"   events planned   ;-)

I am curious to see how changing the bucket to  solar cooker which is vacuum insulated  will work out.....



[Thumbnail for img-(3).jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Today's results...

New Setup:

100 foot of pex painted black thin plastic coating. mirrors.

100 foot of pex in sand battery     About 4    5-gal buckets of sand.

Recirculating pump   pulling 50 watts.

1 gal of water in vacuum tube.

-----------------------------------------------------------------------------

Setup hit a much higher temp -> 167 degrees,   I shut down at 2  PM because there is a storm moving in.

So with less water, I am getting less thermal storage that I can measure....

I was thinking that I should take a 5 gal bucket  fill with water, take a temp,    then recirculate that water in my sand batter to get an idea of how much heat is stored there.

I am now wondering what if I tried this with 10 gallons of water instead of 5 gal?     I imagine there is an optimal amount of water that I could harvest the most amount of thermal energy with...

[Thumbnail for img-(3).jpeg]
[Thumbnail for img-(3).jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Looking back at the data I collected that last couple of days.

I have a sand battery with 4 - 5    five gal  buckets worth of sand in the battery.

The temps range from 107 deg  to  132 degrees.       This impresses me for the amount of sand that is in the battery, and the length of hours it takes for it to cool down.


I believe this could be made into a solar powered thermal cooker by removing 1/2 of the sand from the battery I would be in the range of cooking food..


If I use this setup as it is,  I could  use this to create ideal temps for making methane,  or make alcohol just by adding or removing sand.       Or   perhaps a germination chamber for getting seeds started  by adding a few more buckets of sand.....


I plan on adding more insulation to the pex lines, and check for where I am getting heat loss in this setup.           A bit more tweaking and i should have a sand battery hot water heater that I can take a hot shower in the morning from the heat stored from the previous day.           The temp ranges I am seeing is encouraging me that I am on the right path.
[Thumbnail for img-(3).jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Now that I have a few days of data, I am now getting a good idea of what the sand battery can do over cloudy days.


Today I am upping the game by putting a hot water heater element in a metal bucket in the sand with ceramic blocks to prevent shorts.      I have hooked up 2   260 watt panels to this heating element and I will watch the temp rise of the sand closely.          I hope to bring the temp up to 170 deg since I am starting at a temp of 100 degree I believe that should be doable.       I now have approx five 5 gal   buckets of sand in the battery.       I am very curious how this will turn out.
[Thumbnail for img-(3).jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Well.. I switched from having hot water heat the sand to just using a hot water heater element in the sand to heat about 5 five gal buckets of sand.....

Well the temp is now staying between 140 to 153 deg F I have not had a clear sunny day yet it has been mostly cloudy days and it is keeping this temp with two used 260 Watt panels in series. ( they normally give 220 watts of power each )

I am amazed that I have that much mass at that heat level with two panels on cloudy days, when I get a sunny day I will then test extracting heat with the pex pipe I have in the sand..... But for it to keep above 140 degree temps for over 24 hours is very very impressive to me on cloudy days...
[Thumbnail for uchoose.png]

Posts: 1
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Just as an FYI:

I have a prototype sand battery I am testing for a hot-air heater.

Using a stovetop element and connecting directly to my test 250W panel, in early spring, it easily gets to 500C inside a couple of hours. I have had it over 750C in summer.

PEX will not handle such temps.

This week I am upgrading to a 44 Gal drum with a 3000W element, and hopefully, a pair of new ~400W panels. I've ordered three new k-type thermocouples so I can measure the data properly (safe up to 1250C).

The element is inside a sand-filled 60L steel drum, sitting on a couple of bricks inside the 44 Gal drum, also filled with sand. 50mm tubes go through the sand outside the 60L drum through which air flows and is collected into ducting and piped up to a grate in the floor above.

For water transfer, you really need a copper or steel coil. Copper is good up to 1050C, steel to 1700C. I would use an intermediate heat-exchanger rather than use the heated water directly. Something like a coil in the sand with mineral oil or waste oil, into a tank which is plumbed with PEX. That way, you are never exceeding 100C in water.


Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Zoot Laws wrote:Just as an FYI:

I have a prototype sand battery I am testing for a hot-air heater.

Using a stovetop element and connecting directly to my test 250W panel, in early spring, it easily gets to 500C inside a couple of hours. I have had it over 750C in summer.

PEX will not handle such temps.

This week I am upgrading to a 44 Gal drum with a 3000W element, and hopefully, a pair of new ~400W panels. I've ordered three new k-type thermocouples so I can measure the data properly (safe up to 1250C).

The element is inside a sand-filled 60L steel drum, sitting on a couple of bricks inside the 44 Gal drum, also filled with sand. 50mm tubes go through the sand outside the 60L drum through which air flows and is collected into ducting and piped up to a grate in the floor above.

For water transfer, you really need a copper or steel coil. Copper is good up to 1050C, steel to 1700C. I would use an intermediate heat-exchanger rather than use the heated water directly. Something like a coil in the sand with mineral oil or waste oil, into a tank which is plumbed with PEX. That way, you are never exceeding 100C in water.





Kool....

Thank you for sharing your test results...

I have used over 1200 watts of power in a 2 gal pail I had temps over 1000 F.     I put a dry leaf on the hot sand it and it instantly combusted.

I am now planning on rebuilding my setup without the pex in a trash can.    The trash can will be inside a 55 gal barrel,    then I may put that inside a 255 gal  IBC cage filled with foam....

And idea I have had recently is instead of using a heating element to heat the sand, using a mini split to heat as it is by far more efficient for watts in to heat out.


Another idea I had was to build a cob oven with 3 inches of clay over the fire brick,  then put 1 foot of sand,  then a layer of chicken wire, then finish with cob.....


I have a friend that built a sand cob oven and  was thinking why not  do the same only using cob as the outer layer......

Still in the thinking stage of this....


Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
i am coming back to my sand battery experiments.

I have changed direction with my goals as I have found the pex pipe for water is not rated for over 180 degrees,  so I have removed  the pex from my system.


I found that the burner when surrounded  with sand will burn out.      The water heater element lasted months,  but it burnt out and produced a small amount of glass.

The pot I had burnt out ->  Stainless steel pot.

So I have swapped out the stainless steel pot for a cast iron pot.      The burner comes from a  single stove top burner from the dollar store.

I have had other ideas of how to heat the inside of the sand battery, with  1) friction.     2)    use the sand mixed with an electrolyte of some type to create a huge resistor  perhaps graphite?        But for right now I am still going to use the burner.....     I have had thoughts of an inductive heater that runs off straight DC...

This newest setup has  the following.

A stainless pot filled with sand in the bottom of the trash can.       Above this is the single burner which I removed the plastic from and it is hooked up straight to my solar panels.      The present one is showing signs of wear from where the sand leaked out of the stainless pot when it developed holes.

So far in my  testing I am hitting from 200 - 250 degrees inside the trash can which is inside a 55 gal barrel which has insulation around the outside of that, for over 6 hours of time.

My goal is to get a cheap heater element that will be long lasting.....     I am picking up cheap cookers from the thrift store as of now for testing.

I have noticed the present setup has dried out the sand very very well,  so I am thinking this could be used to dry firewood.      I don't want to cook in it as it is a galvanized trash can so fumes I don't want on my food,   if I remove that, then I might consider cooking food again.

I want to see how the temp is affected by removing  sand from the equation.       I have had fun with this experiment as it has taught me the limitations of sand batteries, and some ideas on how to make them better.

[Thumbnail for IMG_20231222_114722.jpg]
[Thumbnail for IMG_20231222_114300.jpg]
[Thumbnail for IMG_20231222_114000.jpg]
[Thumbnail for IMG_20231222_113849.jpg]
[Thumbnail for IMG_20231222_113732.jpg]
[Thumbnail for IMG_20231222_113551.jpg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Today I decided to try using my solar sand battery to dry out stock I have for my kelly kettle. I put the semi moist wood in, and at end of the day I pulled out crispy dry kindling.

With my tricks I have learned I was able to boil 6 cups of water in 5 and 1/2 minutes with the dry wood.

I was wrong about how many solar panels I am using I have 3 240 watt panels hooked up to the single burner.... So at max 720 watts of power....

So... At last my toy moves to being a dehydrator. I was using 5 panels before... I think because I had the nicrome wire part of the burner too insulated with sand that, and spilling sand on the burner is what killed it.

Now I can dehydrate more things...



I am getting like 6 hours of time at temps from 200 -  340 degrees F.      Using 3 solar panels   and 5 gallons of dry sand.          Now,   I believe I just need to improve insulation...    I am thinking layers of cardboard around the outside should do the trick as I have an airgap between the trash can and the 55 gal barrel which is holding up well...


[Thumbnail for image1.jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
More testing......

I am getting consistent results with the 3 solar panels.....       Well over 200 deg for 6 - 6.5  hours..       I have dried more wood from my rocket stove with this, I have found wood in the sand turns to charcoal.

With the recent cloudy days I added fiberglass insulation to the inside of the trash can on bottom and sides but not the top yet.    I am most curious to see what effect this will have on the setup,  I expect higher temperatures for longer duration. would be what I would expect.


A question that comes to mind as I do this is how much water does the dry sand absorb?      I have not gotten around to put a humidity meter in the project, but it does make me wonder how super dry sand would deal with the high humidity?


Besides this, I have stumbled on a SUPER deal with solar panels.          I now have 6     440 watt solar panels, that I am planning on experimenting with.

I purchased 2  stove top elements to test  with these solar panels,   they are cracked is why I got a good deal on them, but that said  I have run a tread mill motor and a sawzall off of them with direct DC.

I am very happy to see the stove top element has the correct specs I need for 3 of my solar panels in parallel by the numbers,  tomorrow is forecasted to be a sunny day, so I can test out  the elements and get a much better idea of how good the panels I bought are.

An idea is forming in my mind that I can take my various solar systems and add a relay to each, in so that when they have finished charging my batteries,  that a relay is triggered and I then dump the energy from those panels into heating elements inside a well insulated sand battery....       My line of thinking is that I could create a solar powered cob oven,  of which I could harvest heat from as needed.

I believe the fiberglass insulation will work great because the heat will keep it dry and thus it will maintain it's insulation value.

Per this link fiberglass is good up to 1,000 deg F.

https://www.engineeringtoolbox.com/insulation-temperatures-d_922.html


I am contemplating different layers of insulation,  fiberglass for the inside, then cardboard on the outside of that......      With the temps being recorded I should be able to find the best combo....



[Thumbnail for image1.jpeg]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Another means of storing thermal mass ->

https://youtu.be/KpYFdUc1ot0


These blocks desinged to hold heat.

David Baillie
pollinator
Posts: 887
Location: Central Ontario
157
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Mart Hale wrote:More testing......

I am getting consistent results with the 3 solar panels.....       Well over 200 deg for 6 - 6.5  hours..       I have dried more wood from my rocket stove with this, I have found wood in the sand turns to charcoal.

With the recent cloudy days I added fiberglass insulation to the inside of the trash can on bottom and sides but not the top yet.    I am most curious to see what effect this will have on the setup,  I expect higher temperatures for longer duration. would be what I would expect.


A question that comes to mind as I do this is how much water does the dry sand absorb?      I have not gotten around to put a humidity meter in the project, but it does make me wonder how super dry sand would deal with the high humidity?


Besides this, I have stumbled on a SUPER deal with solar panels.          I now have 6     440 watt solar panels, that I am planning on experimenting with.

I purchased 2  stove top elements to test  with these solar panels,   they are cracked is why I got a good deal on them, but that said  I have run a tread mill motor and a sawzall off of them with direct DC.

I am very happy to see the stove top element has the correct specs I need for 3 of my solar panels in parallel by the numbers,  tomorrow is forecasted to be a sunny day, so I can test out  the elements and get a much better idea of how good the panels I bought are.

An idea is forming in my mind that I can take my various solar systems and add a relay to each, in so that when they have finished charging my batteries,  that a relay is triggered and I then dump the energy from those panels into heating elements inside a well insulated sand battery....       My line of thinking is that I could create a solar powered cob oven,  of which I could harvest heat from as needed.

I believe the fiberglass insulation will work great because the heat will keep it dry and thus it will maintain it's insulation value.

Per this link fiberglass is good up to 1,000 deg F.

https://www.engineeringtoolbox.com/insulation-temperatures-d_922.html


I am contemplating different layers of insulation,  fiberglass for the inside, then cardboard on the outside of that......      With the temps being recorded I should be able to find the best combo....




I found rockwool to stand up better to heat then Fiberglass. They can both take the heat levels you are showing but I found fiberglass becomes brittle after repeated exposure where rockwool kept its structure. I was insulating the sides of a woodstove which had a 1 inch airgap at the time. here is a link to comparison  https://www.insulationecoin.com/rockwool-vs-fiberglass/
Cheers,  David

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator


I am contemplating different layers of insulation,  fiberglass for the inside, then cardboard on the outside of that......      With the temps being recorded I should be able to find the best combo....




I found rockwool to stand up better to heat then Fiberglass. They can both take the heat levels you are showing but I found fiberglass becomes brittle after repeated exposure where rockwool kept its structure. I was insulating the sides of a woodstove which had a 1 inch airgap at the time. here is a link to comparison  https://www.insulationecoin.com/rockwool-vs-fiberglass/
Cheers,  David

Thanks David for your insights...

I have seen those who have water powered gens use rockwool  as it holds up to moisture very well.

I had fiberglass on hand and it was what I grabbed....       I have about 3 55 gal barrels filled with chopped up styro foam,    If I see improvement with insulation,     I believe the styro mixed with cement air crete is the direction I want to travel.      I have been looking for rockwool on craigslist, so far when i find it, it is too far away.

But I do keep my eyes open, as this project is starting to show  me it is worth while.

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Today was a sunny day I was able to test my setup with the addition of fiberglass insulation.

temps ranged  better.     I went from the old standard of  200 - 340 deg  for 6.5 hours   to now     200 - 400 degrees for 8 - 9 hours.......


So.........     having this as a base, I now move to my next level with this....

Storing this heat for long term......

I plan to take quicklime   add it to water and release the heat to make slate lime......

Then taking the slate lime  I will put it into this cooker  and attempt to remove the water and create quicklime again....

The idea is to take the quicklme  and put it into a bowel  inside another bowel  to heat that water as needed,  as quicklime releases large amount of heat in a short amount of time.....     Thus one could in theory cook a meal in a few minutes with the heat exchanged heat,  then use the solar panels to recharge the lime....        I also believe I could do this with the rocket stove,   also considering using a vacuum water removing process.

I do like this progress,  slowly getting results I can now turn into usable results.
[Thumbnail for temps-last-7-.png]

Mart Hale
pollinator
Posts: 932
250
5
tiny house food preservation cooking rocket stoves homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Wow....

I was not the first person to think of this.......

One can store heat in limestone, once it is converted to quicklime....

http://www.oldandinteresting.com/fireless-cooking-with-quicklime.aspx


I have ordered some quicklime...     I plan on making it from limestone.

Please do not shame this tiny ad.
Botany Bonanza Bundle by Thomal Elpel
https://permies.com/wiki/240272/Botany-Bonanza-Bundle-Thomal-Elpel
reply
    Bookmark Topic Watch Topic
  • New Topic
