Sepp Holzer root cellar | (Read 2129 times) |
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
 |
April 06, 2009, 04:38:50 PM |
|
I have lots more pics to add to this, but for now, here is the first.
Rocks stacked. Logs on top. Then felt, then pond liner, then more felt and then a meter of dirt.
He normally makes these with logs on the sides instead of rocks. I'm trying to see if I can get a picture of that.
|
|
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 07:45:25 AM |
|

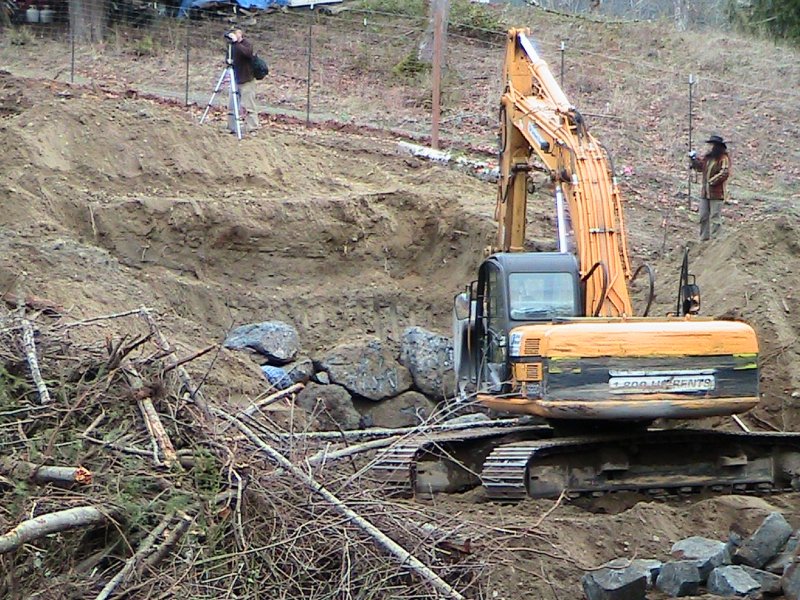

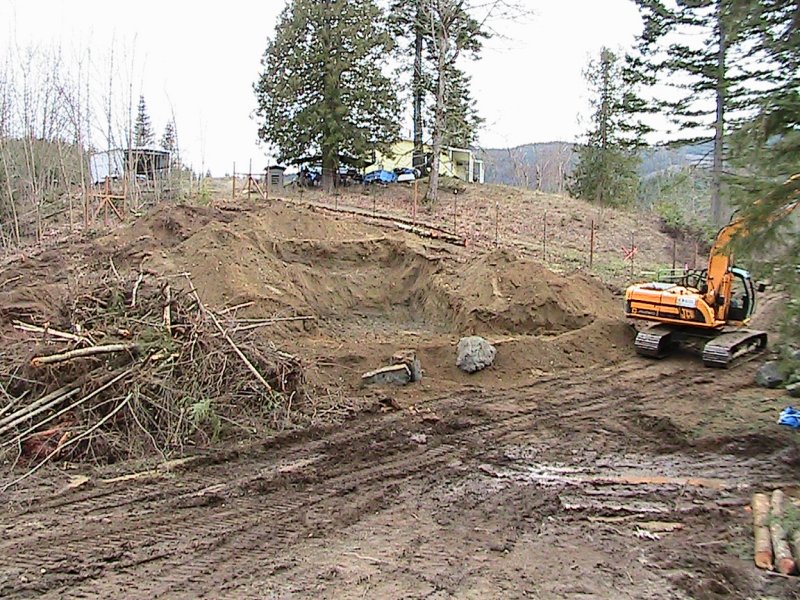

construction
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 07:49:02 AM |
|

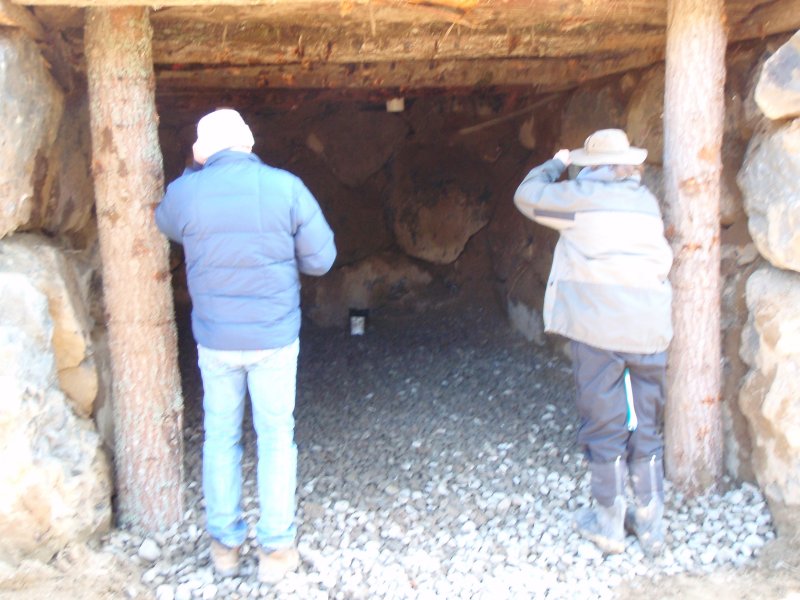

Inside.
You can see the vent stuff. It is that vent stuff that makes this a root cellar instead of an animal shelter.
Sepp says that you could, later block off the vent stuff and have this be an animal shelter when it suits you.
The bottom vent goes pretty deep - from the back (where you can see it poking up) to about 15 or 20 feet in front of the opening. So the air ends up nice and cool from the earth.
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 07:50:52 AM |
|

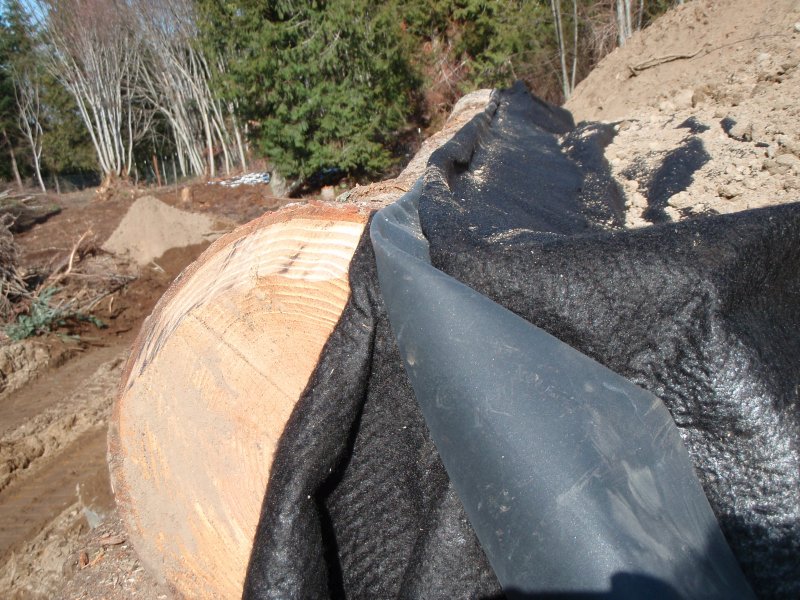

The roof liner.
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 07:54:30 AM |
|

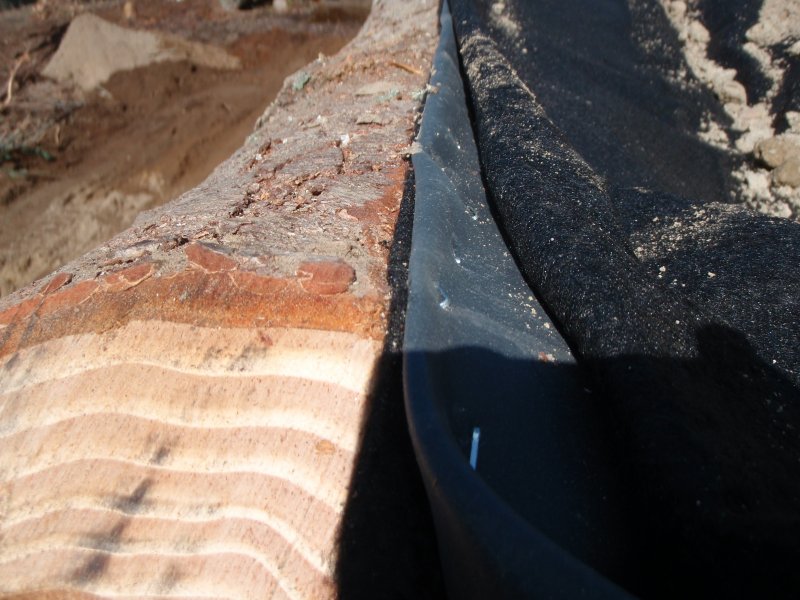

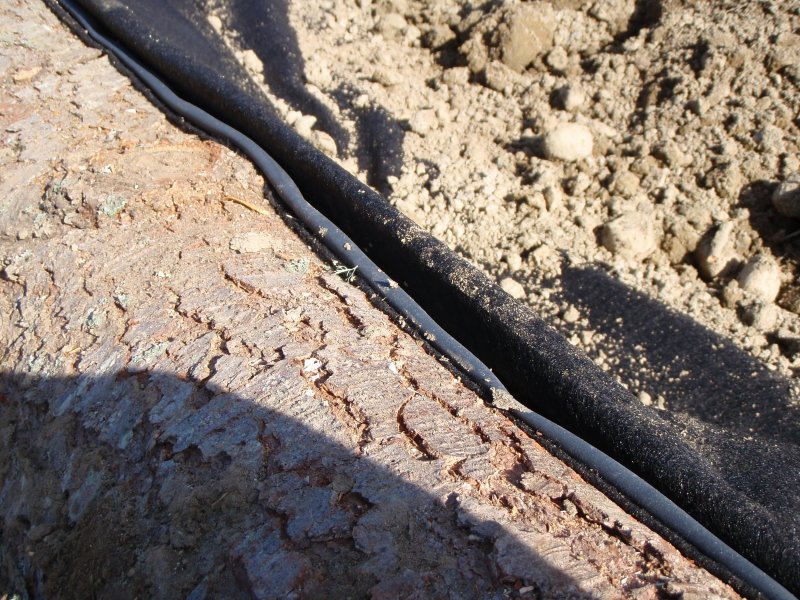

A layer of felt, a layer of pond liner, a layer of felt.
The layers of felt are to protect the pond liner from getting stabbed and getting a hole.
Total cost of roofing materials here: About $1000. !!! Ouch. Mike Oehler's stuff is very similar. Mike's book says to use visqueen (black plastic) which would cost maybe $20. But I read something where Mike is also using some pond liner these days.
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 07:56:48 AM |
|
Sepp has built a lot of these, so I should keep my pie hole shut and just bask in the glow of the master .... but ... I look at this and I think about water getting between the log and the liner. Then following the liner back to the middle of the roof ... Mike's design very specifically acknowledges that problem and provides a solution.
|
|
|
|
|
Logged
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 08:02:38 AM |
|

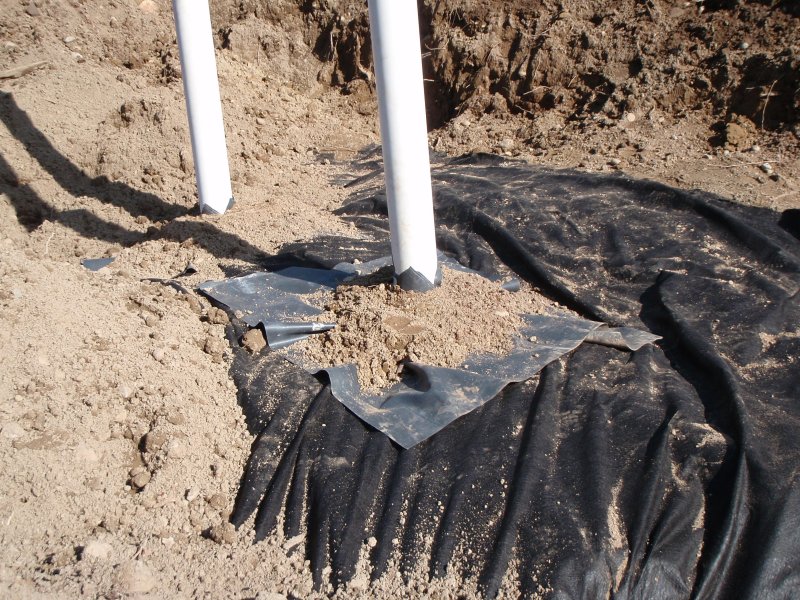

The top vents coming out of the top.
Before they did this, one of "Team Sepp" told me that they would make a small round hole in the pond liner and then pull the pond liner over the pipe. That sounded like a damn good seal to me. This looks like they made X's in the liner - that doesn't seem as good to me. That makes me think that the X might continue to tear over time.
Another thing to note: Mike Oehler is adamant that you should never do anything like this (poking a hole through your membrane). This could be because his designs use black plastic. But as I was studying this, I thought that having the upward air intake toward the front would be cheaper, easier and wiser. But maybe there are bits and bobs i don't yet understand.
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 08:05:04 AM |
|

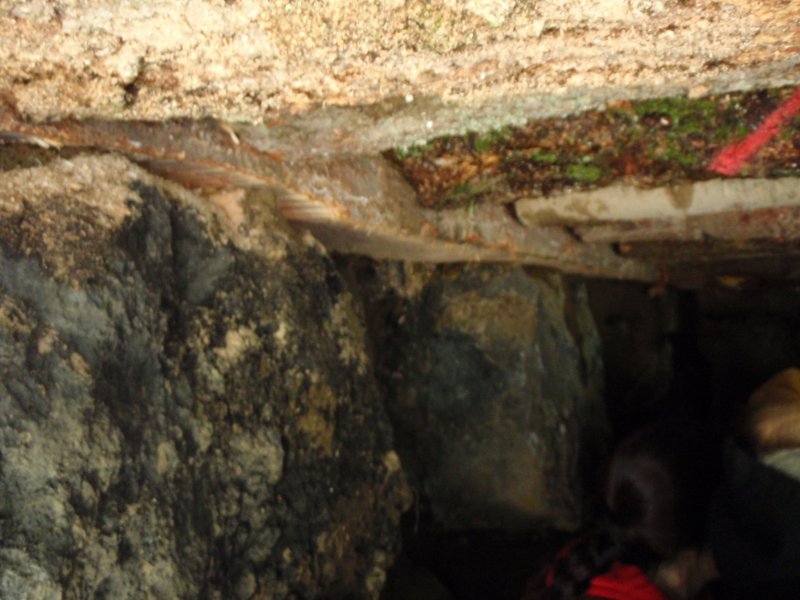

This shows the half log on the rocks and the notches put into each of the top logs so the structure remains stable.
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 08:07:39 AM |
|
Here is a pic from Sepp's site of one that he did with all logs.
|
|
|
|
|
Logged
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 09, 2009, 08:16:18 AM |
|
While it probably took Team Sepp about three to five days to build this one, they say it normally takes just one day to build the all-log shelter.
|
|
|
|
|
Logged
|
|
|
|
Forerunner
Posts: 8
|
|
April 10, 2009, 07:42:25 AM |
|
Does Sepp indicate any species preference for his underground logs ?
|
|
|
|
|
Logged
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 10, 2009, 07:51:10 AM |
|
Yes! Tamarack (western larch) seems to be his favorite. Although he does prefer black locust if he can get it.
|
|
|
|
|
Logged
|
|
|
|
Forerunner
Posts: 8
|
|
April 10, 2009, 08:08:12 AM |
|
No luck on the tamarack....central Illinois here.
But, black locust we have in abundance.
Where is Sepp located ? I've not read enough about him yet to see mention of that.
|
|
|
|
|
Logged
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
April 10, 2009, 08:14:08 AM |
|
Sepp is in the Austrian Alps.
But he travels the world bringing his genius to all sorts of places.
|
|
|
|
|
Logged
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
June 12, 2009, 11:29:41 AM |
|
So I made this stuff a big part of my new Sepp Holzer's Permaculture article.
I added some stuff to the article. Specifically, a drawing I made to attempt to clarify what was seen in the pics:
And my ideas for possible improvement:
|
|
|
|
|
Logged
|
|
|
|
paul wheaton
Administrator
Posts: 4554
missoula montana
|
|
July 24, 2009, 09:04:34 AM |
|
I've been studying ice caves recently. Some ice caves claim that they get cold and stay cold because cold air sinks and warm air rises and the cave is deep and the opening is high.
Hmmmm .... seems unlikely ... anybody have more information on this sort of thing?
|
|
|
|
|
