Sharpen an Axe - PEP BB tool.straw.axe

BB tool care - straw badge
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
This is a badge bit (BB) that is part of the PEP curriculum.  Completing this BB is part of getting the straw badge in tool care.

Here is a video on how to sharpen an ax.



From the video description:
"How to sharpen an Axe.  Here are some of my other axes https://youtu.be/OUZ_Bdas7t8 Support us at PATREON https://www.patreon.com/essentialcraf... is a relaxing and enjoyable process, something you should do regularly if you chop a lot of wood. It only takes a few minutes but can save you a lot of extra work. Please stop by our Facebook page and give us a like or share us with someone you know who might enjoy. Thanks!"

To get certified for this BB, post the following:

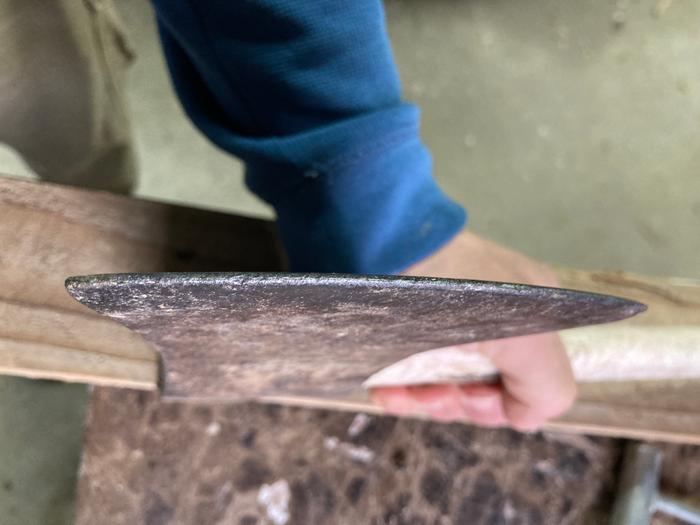

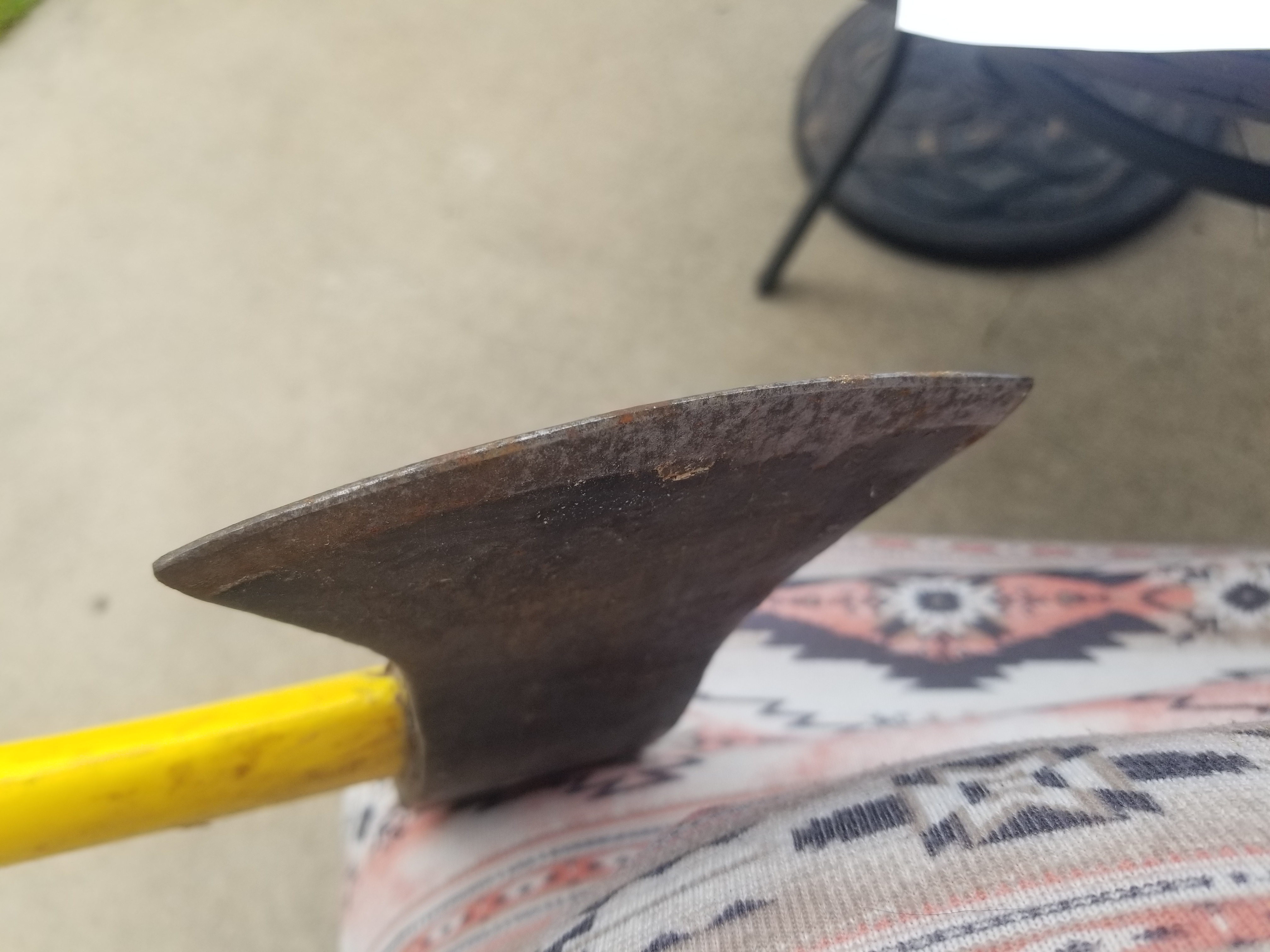

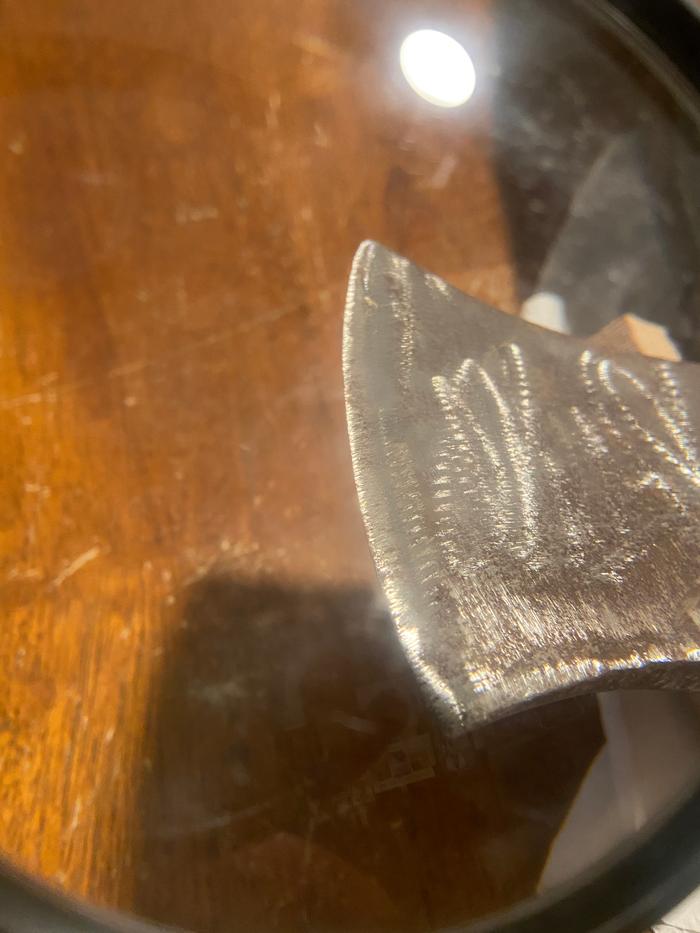

 - Pic of dull edge

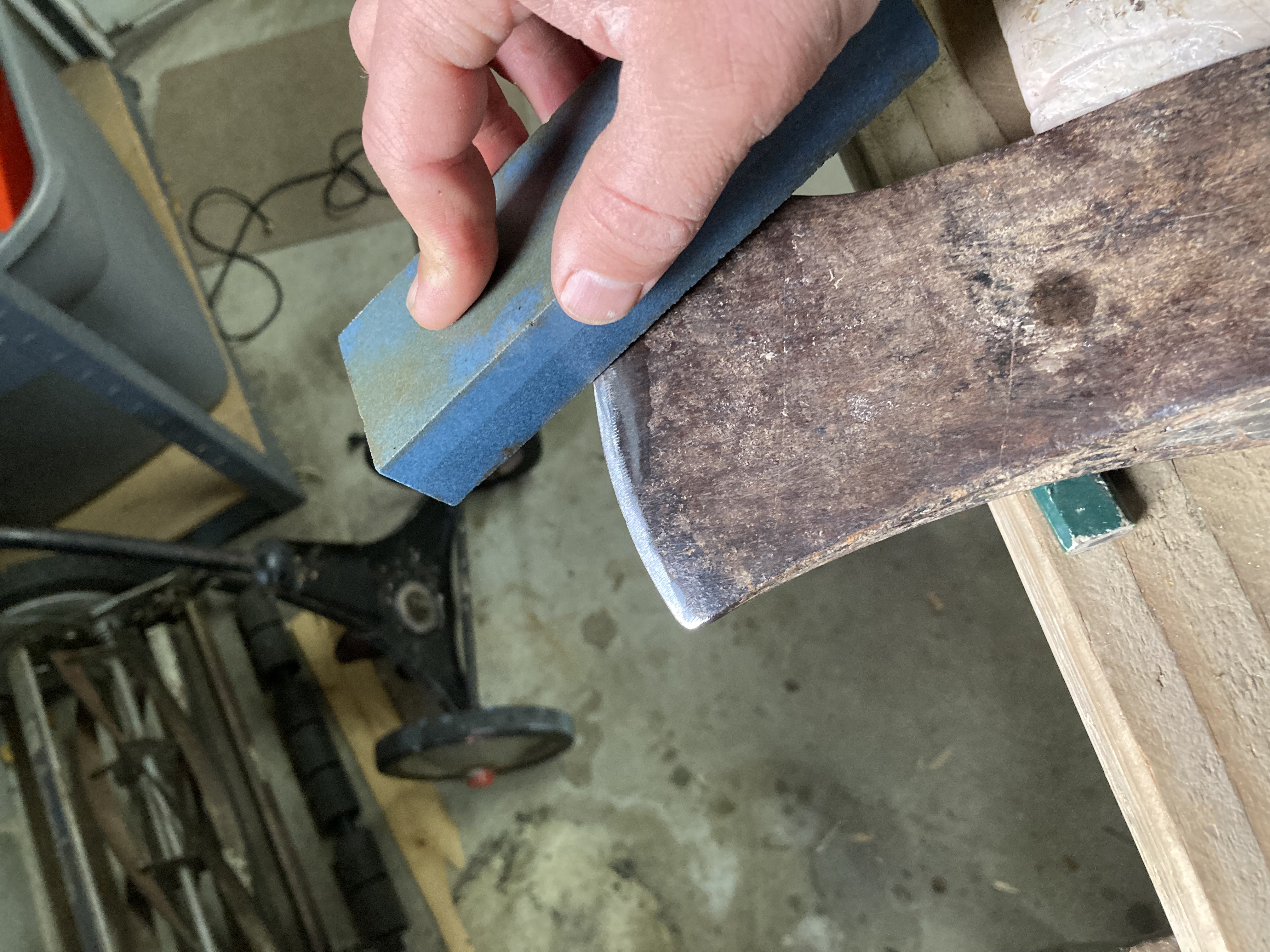

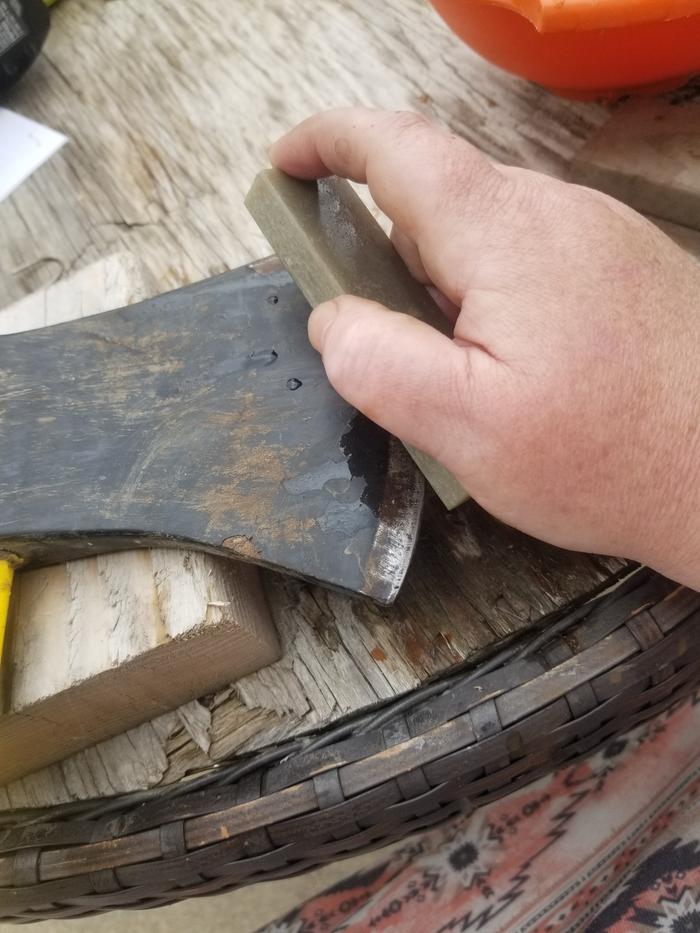

 - Action pic of sharpening

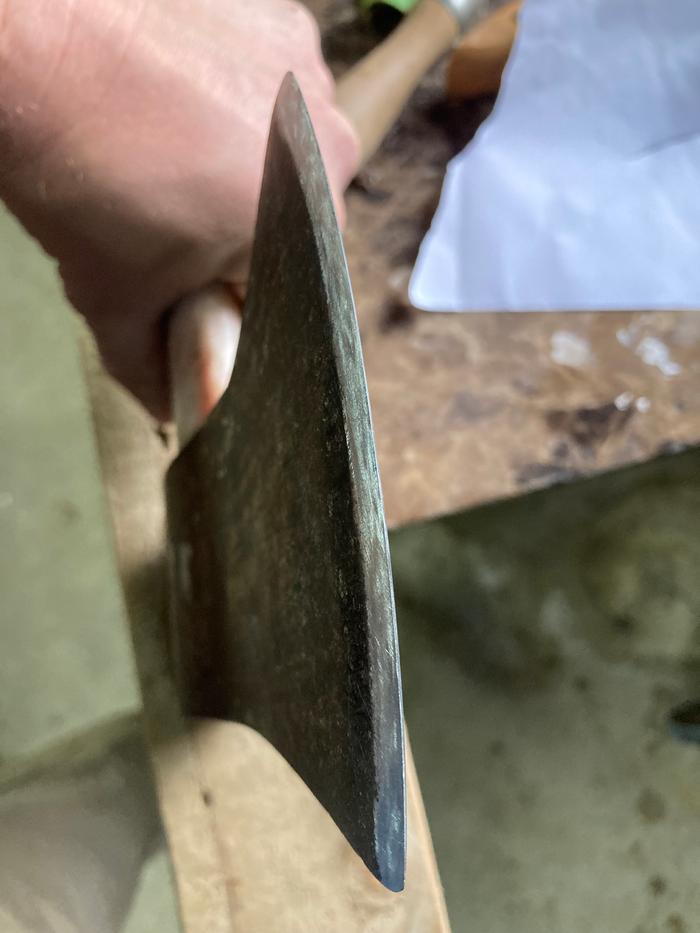

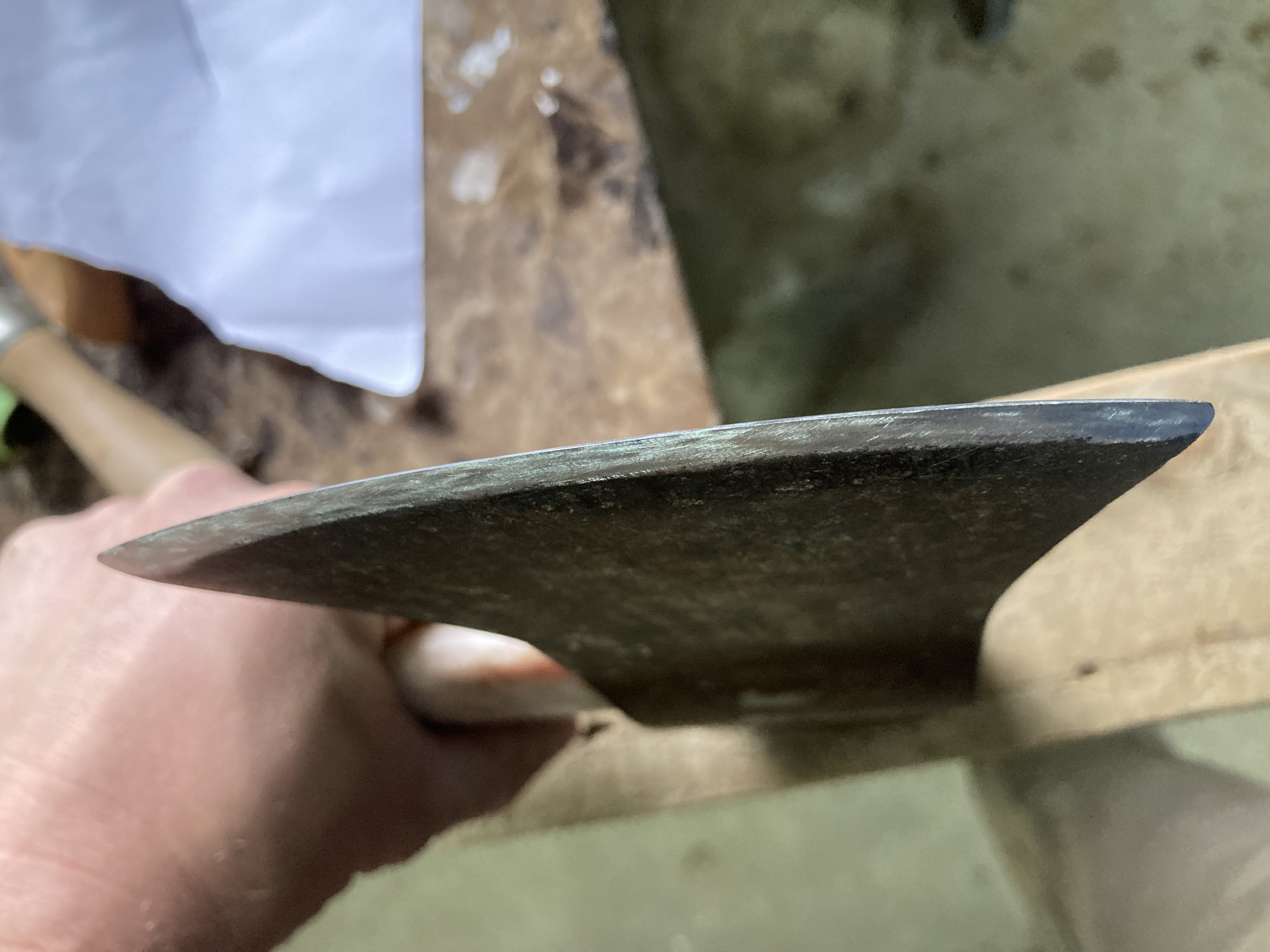

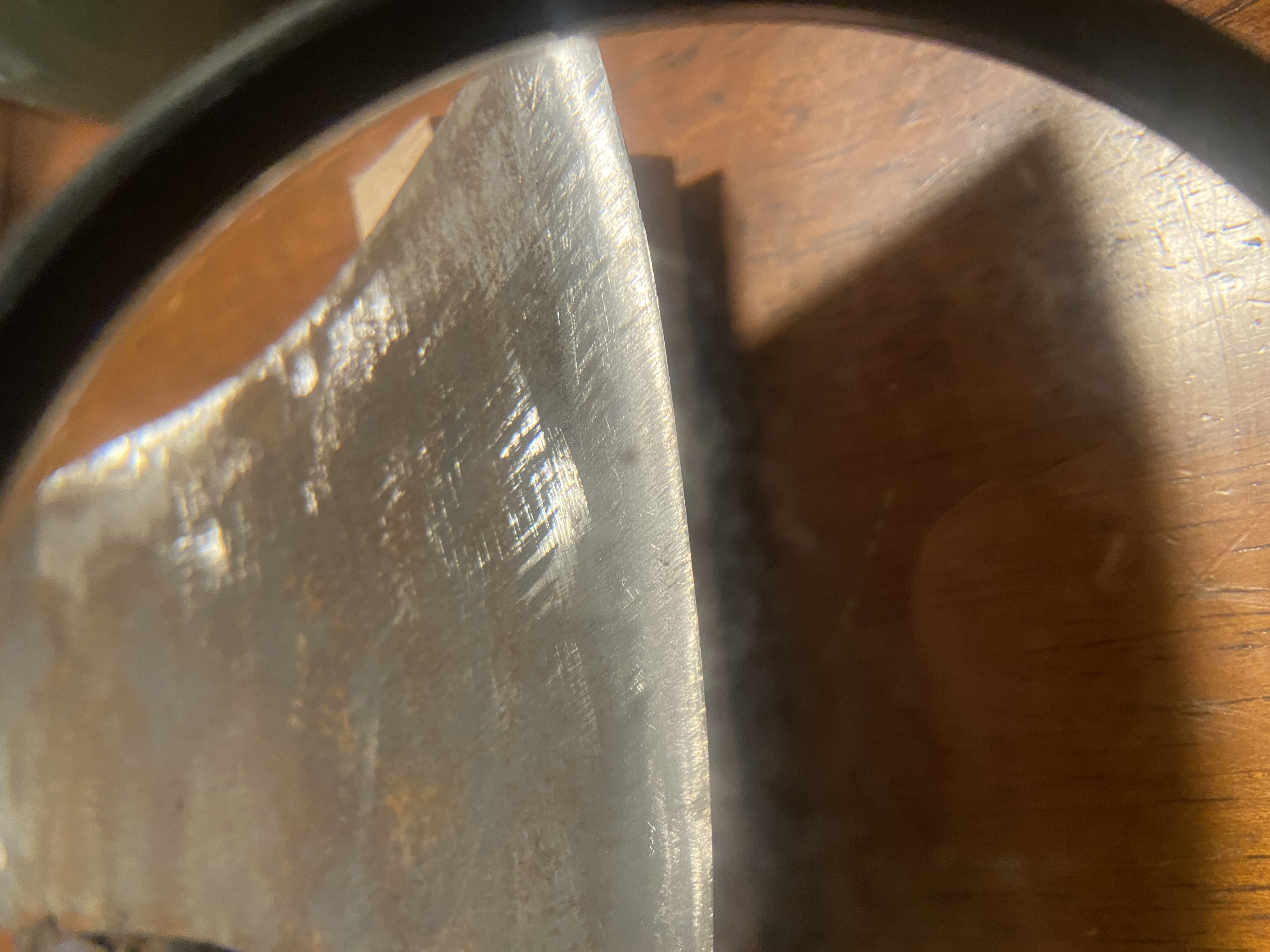

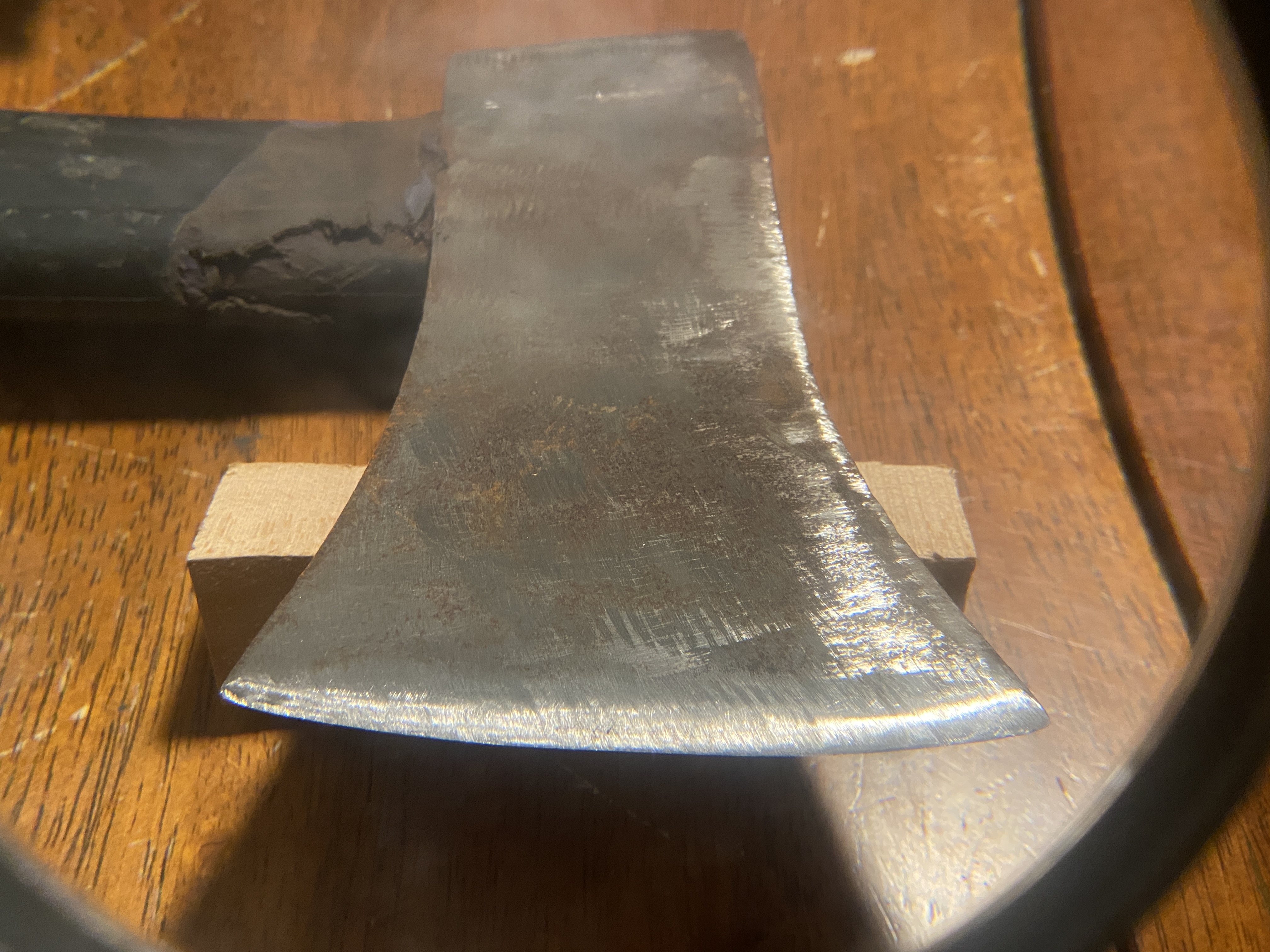

 - Pic of sharp edge
COMMENTS:

gardener
Posts: 814
Location: Durham, NC
308
hugelkultur gear urban cooking building writing woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission




Staff note (Mike Barkley) :

I certify this BB is complete.


pollinator
Posts: 1747
Location: Canadian Prairies - Zone 3b
455
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I want to see pics of onions being diced!

Rob Lineberger
gardener
Posts: 814
Location: Durham, NC
308
hugelkultur gear urban cooking building writing woodworking
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Douglas Alpenstock
pollinator
Posts: 1747
Location: Canadian Prairies - Zone 3b
455
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Dude, that's awesome. Bravo! LOL!

gardener
Posts: 1185
Location: Western Kentucky
537
dog gear foraging trees hunting food preservation cooking fiber arts woodworking wood heat rocket stoves
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
Just finished hanging another axe and took a few pics of sharpening. I was going to do the onion thing but Rob beat me to it! Maybe sacrificing a patch of hair is proof enough for Douglas?
Edge before sharpening
Edge before sharpening

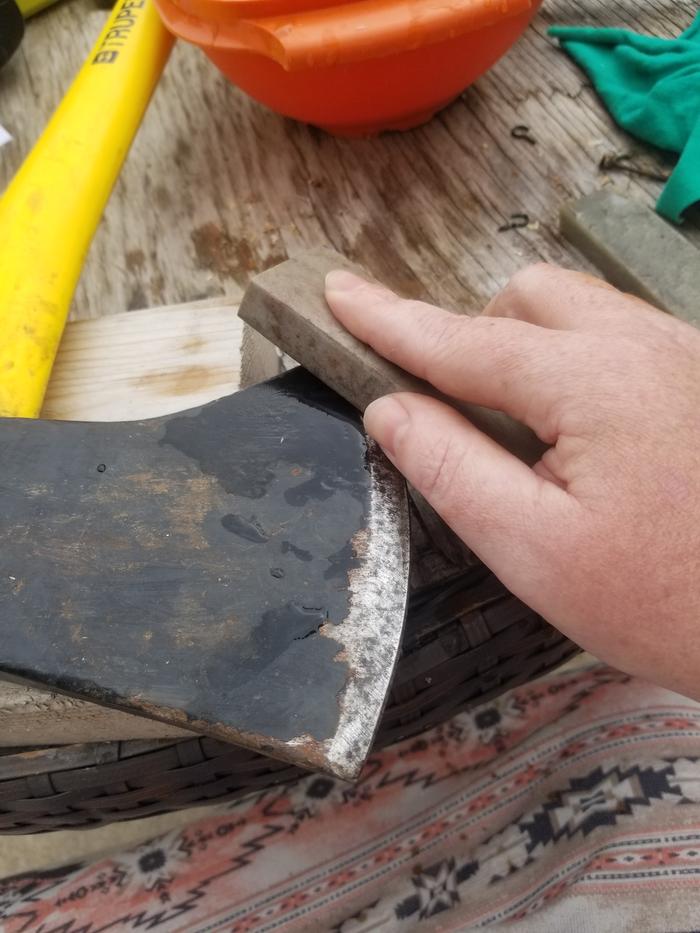

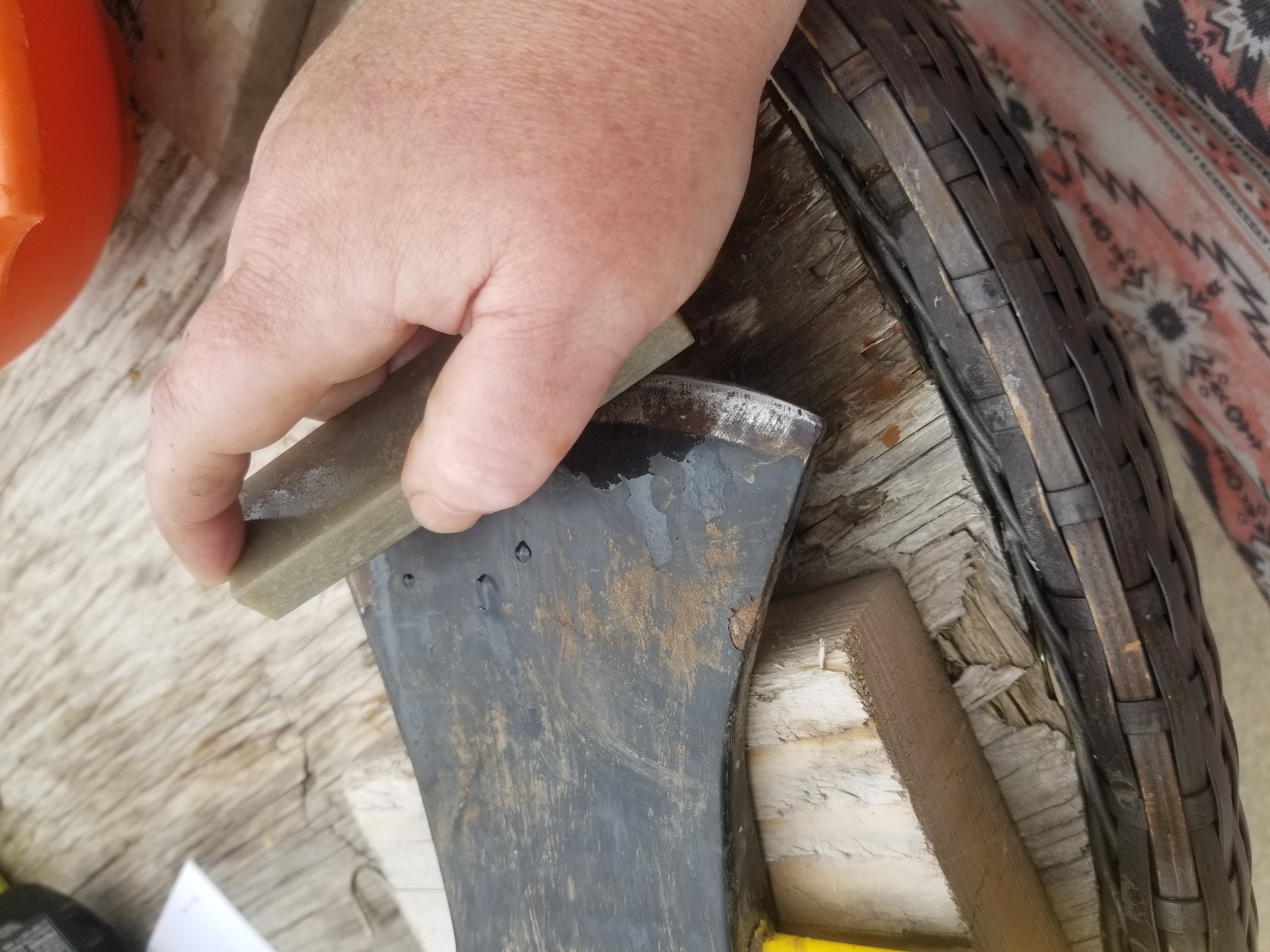

Action pic!
Action pic!
The proof is in the shaving
The proof is in the shaving
Staff note (Mike Haasl) :

I certify this BB complete!


Rob Lineberger
gardener
Posts: 814
Location: Durham, NC
308
hugelkultur gear urban cooking building writing woodworking
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Jordan Holland wrote:Just finished hanging another axe and took a few pics of sharpening. I was going to do the onion thing but Rob beat me to it! Maybe sacrificing a patch of hair is proof enough for Douglas?



I dont usually apple a BB post because I can't approve them but I just felt like this needed an apple on it.

pollinator
Posts: 214
Location: Northern Ontario, Canada
102
goat dog gear books bike building
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
I found some old axes that have been rusting away in our garage for quite a while now. The edges were pretty much round, and there was a good amount of rust to remove on both of them. The rust removal was with the grinder and was fun. The initial sharpening was done with an angle grinder, and I finished the edges with a file today. I can't shave with the edges (I'm not that good yet) but these axes are ready to start cutting some wood again.

My neighbours are probably beginning to think that I am prepping for a zombie apocalypse with how many times they've seen me in the garage sharpening axes, knives, and homemade blades. lol. Just getting badges on Permies is all.
[Thumbnail for IMG_20201221_142214_439.jpg]
[Thumbnail for IMG_20201221_145307_531.jpg]

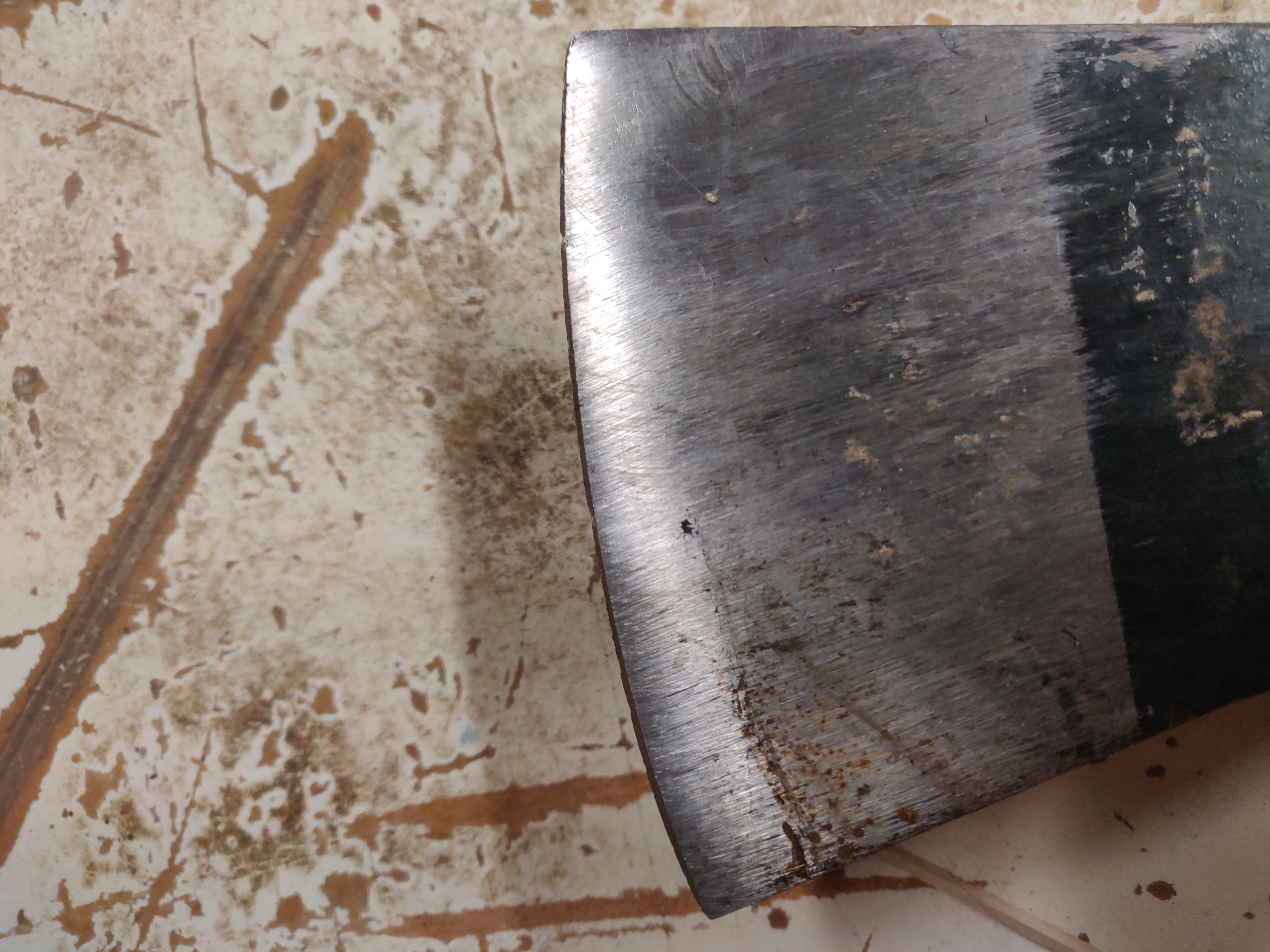

Not so sharp
Not so sharp

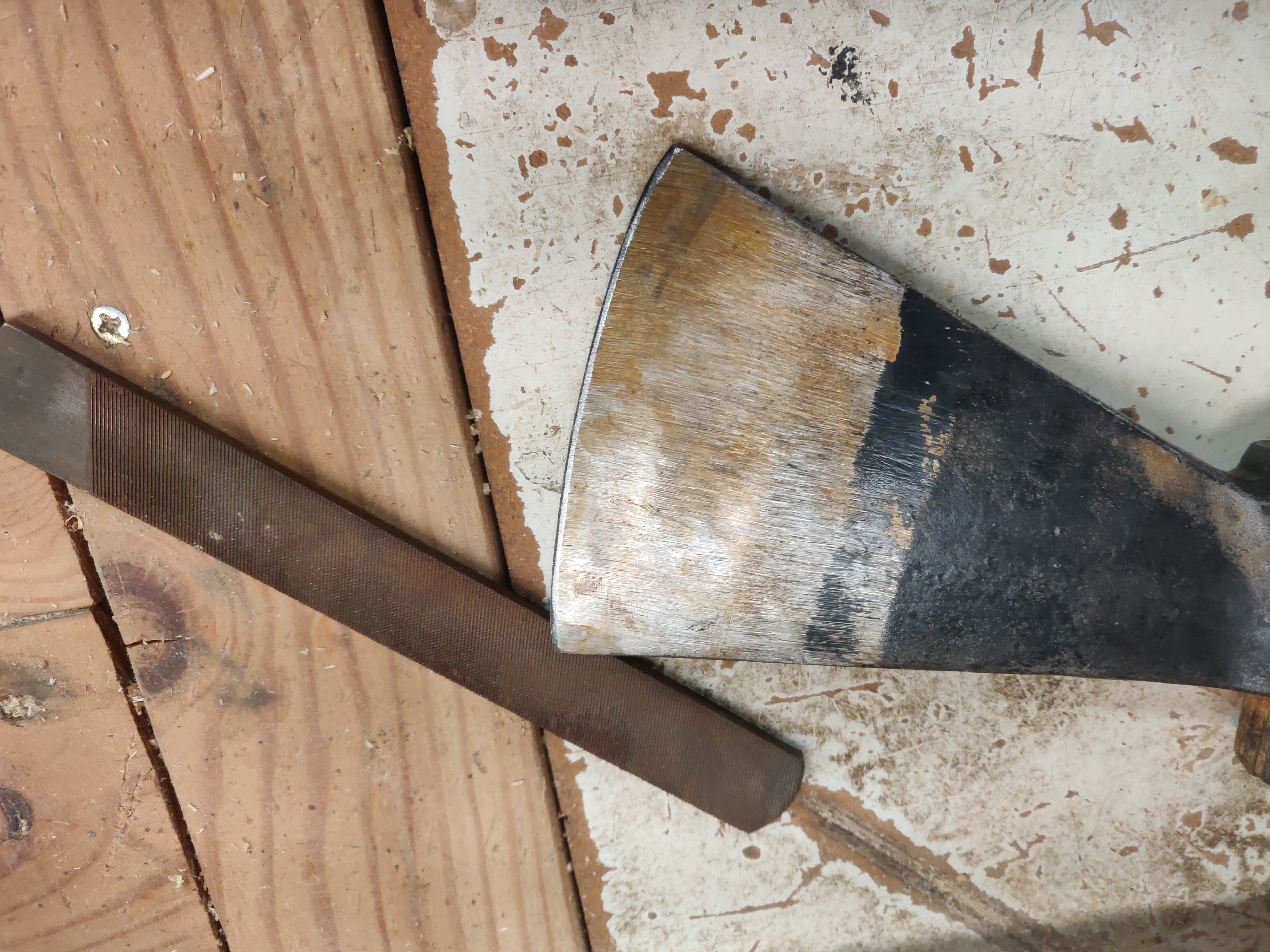

Cleaned, sharpened and oiled
Cleaned, sharpened and oiled
Red axe I went at with the file to really clean up the top edge. Took a while but it worked!
Red axe I went at with the file to really clean up the top edge. Took a while but it worked!
Forgot to add this earlier...sharpening with the grinder
Forgot to add this earlier...sharpening with the grinder
Staff note (gir bot) :

Mike Barkley approved this submission.
Note: This BB is certified !


pollinator
Posts: 170
Location: South Wales, UK
102
dog forest garden gear fungi foraging trees building medical herbs woodworking homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approved BB submission
I recently picked up a big, 4.5 lb felling axe on eBay that has pretty good splitting geometry. The handle is going to break at the neck at some point (it's had a hard life) but, for now, I've cross-wedged it and it feels solid. All that is left to do is sharpen it! Cue the BB...

I used a flat mill file for the bulk of the shaping work, re-establishing (and then smoothing) the bevels. I held the axe by the handle using my big Record vise with some pieces of scrap ply to prevent the handle from being marred. I first work on the cheeks of the blade, then bring the file up to work towards the edge.

Once the shape is roughed in, I picked up my fine oilstone and got to work cleaning up the tooling marks. The file tends to leave little gouges in the steel and I like to polish (most of) those out. This also establishes a wire burr that can be stropped off, leaving a sharp edge.

I stropped using a piece of skin-side-up leather fixed to some oak and rubbed with white compound. At this point the axe is pretty sharp! I finished it off with a micro-bevel using some super-fine ceramic rods.

Here is the axe to begin with. Very dull.

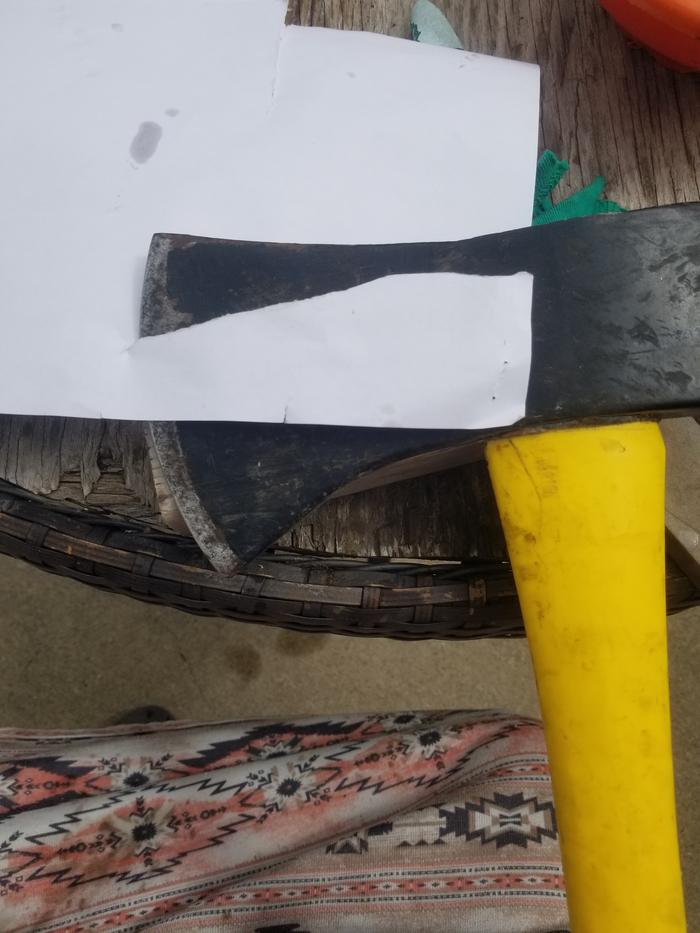

I could cut paper when it was done - ish. There was still a little tearing as you can see. Much, much sharper than before though and I wouldn't want to push my hand into it like I did at the start. Sticks in a log with absolutely no problems. Can't wait to use it.
Very dull!
Very dull!

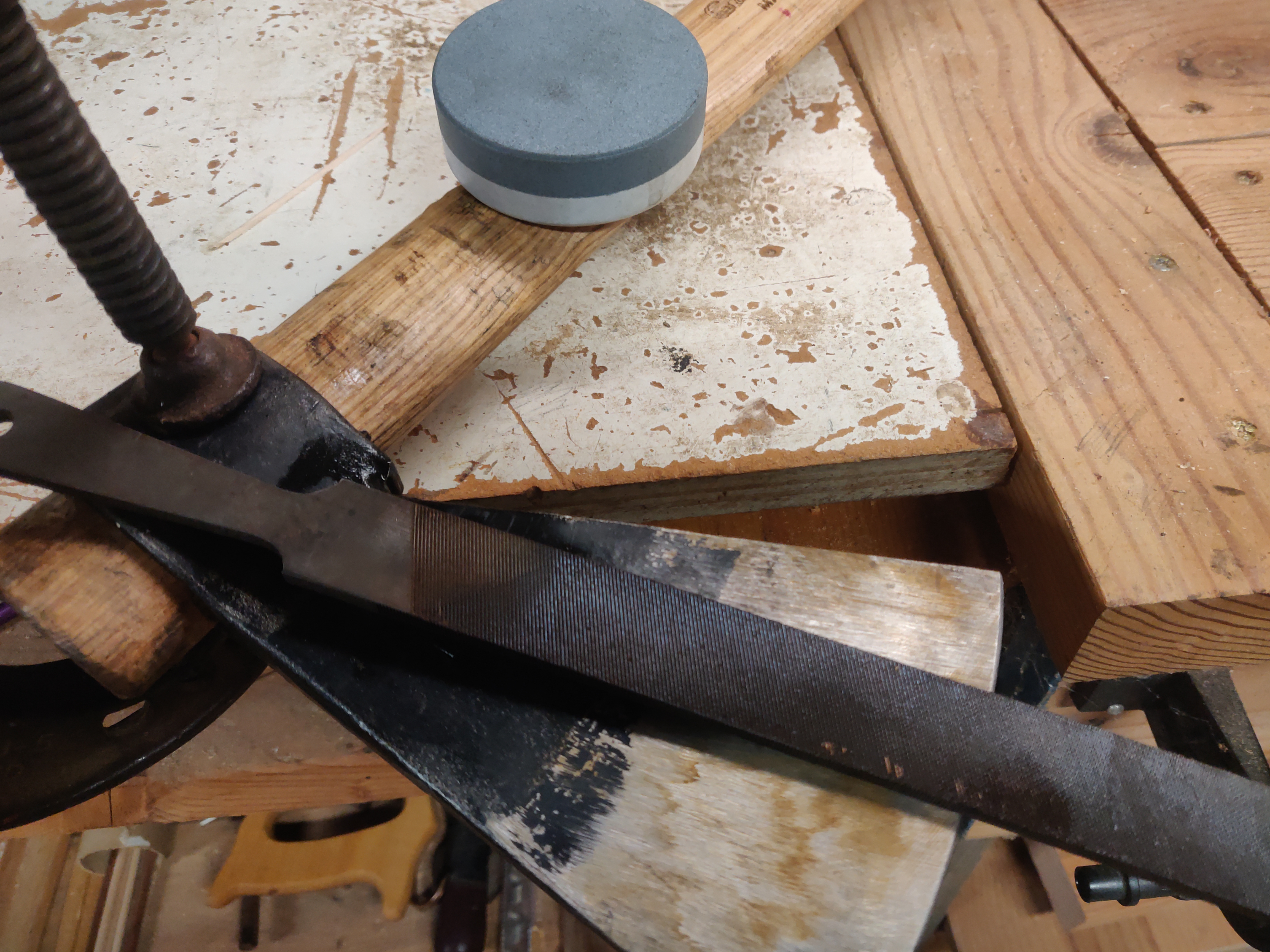

Setup
Setup
Oilstone at work
Oilstone at work
Most of the tooling marks removed
Most of the tooling marks removed
Strop, compound and rag (and old sock!)
Strop, compound and rag (and old sock!)
Ceramic rod for making microbevel
Ceramic rod for making microbevel
[Thumbnail for paper.jpg]
Shot of blade profile
Shot of blade profile
She works!
She works!
Staff note (gir bot) :

Mike Barkley approved this submission.
