Plug with USB?


master steward & author
Posts: 20951
Location: Left Coast Canada
5888
books chicken cooking fiber arts sheep writing
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Has anyone used something like this at home?



I want to make it easy for me to charge USB devices overnight without creating more light in the bedroom, and I wondered if this might be the answer.  I'm renewing the plugs anyway.

But... would the plugs get in the way of each other?

Is there enough surge protection for the gadget?

Are there better options?

steward
Posts: 173
Location: Vancouver, Canada
134
kids dog cooking ungarbage
  • Likes 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I installed one at home so that I could have a wall-mounted Google Home device without cables hanging down the wall.



I haven't had any issue with using the two USB connectors and 2 AC power connectors at the same time.  I don't know about built-in surge suppression or residual current draw from the USB circuitry when no devices are connected.

The outlet is quite thick - make sure that the electrical box where you are thinking of installing it is deep enough (especially if it is a junction point and there are several wires terminating in the box.

master gardener
Posts: 1917
680
personal care gear foraging hunting rabbit chicken cooking food preservation fiber arts medical herbs homestead
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I've used these things, in hotels, and my experience has been pretty good. As long as you're not plugging things in, that have the huge box-plug, like some electronics have, they seem to work beautifully.

r ranson
master steward & author
Posts: 20951
Location: Left Coast Canada
5888
books chicken cooking fiber arts sheep writing
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
That's good to know.

Another thought was to install a regular plug and get something like this.

https://www.amazon.ca/gp/product/B07L49Q2ZQ/ref=ox_sc_act_title_1?smid=A1DB7AYXNAHVJI&psc=1

But it looks like this has a light.

I also thought one that plugs into both top and bottom would be better, but I can't find those anymore.

Ron McLeod
steward
Posts: 173
Location: Vancouver, Canada
134
kids dog cooking ungarbage
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
You can solve the light problem with a bit of black electrical tape -- I do that when travelling.  Ambient light in hotel rooms is a big problem for me when I travel - so many devices with glowing lights.

I have bought those types of outlet expanders in the past, and have had them fail when plugging in high current draw devices such as iron, electric heater, vacuum, etc.  I guess if it was only for computer/monitor/lamp/etc, you might not have problems.

gardener
Posts: 3068
Location: Southern Illinois
566
transportation cat dog fungi trees building writing rocket stoves woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hello R!

I finished off my basement a few years ago and I did the wiring myself.  Those outlets are quite simple to hook up and they go great in convenient places.  I would look out for the higher voltage ones as those are faster chargers.

But they were not cheap.  I bought mine at Lowe’s and they were something like around $45/outlet!!  That was an outrageous price.  Maybe the costs have come down but my suggestion is to only put them in places you know that you are likely to use them.  We put our two next to a built-in bench.

Good luck!

Eric

Posts: 551
Location: Abkhazia · Cfa (humid subtropical) - temperate · clay soil
61
cat forest garden trees solar wood heat woodworking
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I am not convinced by them… tricky to replace when they fail. And they will be outdated in a year or two when the USB specification is advanced again. I think you will find far better USB chargers that plug into a socket.

pollinator
Posts: 1575
Location: Victoria BC
228
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Sebastian Köln wrote:I am not convinced by them… tricky to replace when they fail. And they will be outdated in a year or two when the USB specification is advanced again. I think you will find far better USB chargers that plug into a socket.




I agree; I like keeping devices separate as much as possible, so only the part that has failed needs replacing.

USB is indeed likely to change several times before you wear out the AC plug.

And, AC plugs are entirely inert devices. No power draw. No failure points beyond physical wear and damage.

The USB plugs, not so much.


If I wanted wall-mount USB, I would give it a dedicated plate.

I am more inclined to put a USB adapter somewhere that a bunch of USB cables can stay connected, so when you want to connect something, the cable is there.

r ranson
master steward & author
Posts: 20951
Location: Left Coast Canada
5888
books chicken cooking fiber arts sheep writing
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

D Nikolls wrote: AC plugs are entirely inert devices. No power draw. No failure points beyond physical wear and damage.

The USB plugs, not so much.



That answers another big question.

Personally, I don't like the way the USB plug looks.

I'm thinking maybe a short cabled PowerBar with USB option instead.  It looks to be the same price as the usb outlet

Eric Hanson
gardener
Posts: 3068
Location: Southern Illinois
566
transportation cat dog fungi trees building writing rocket stoves woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Sebastian, D, R,

I don’t know what the wear qualities of the USB plug will be, but I am fairly certain that the power specifications will remain compatible.  The USB standard has a consistent history of backwards compatibility so personally I am not concerned on that front.  As far as getting it actually hooked up, it was no different than any other ac plug.

For my part, I did not mind the appearance, and there are outlets that have two USB plugs right between the ac plugs.

I do agree that a little USB power strip is a quick, easy and relatively cheap option.  I actually like having them.  We can sit on our little bench, read a book and charge the phone.  My biggest problem is that the outlet was not cheap—around $45.  Therefore we only put in two.

Eric

pollinator
Posts: 319
Location: Near Philadelphia, PA
68
  • Likes 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Any idea if that is pulling current all the time, whether you are using it or not?  I have power strips on which I can switch off individual outlets to avoid vampire loads.

Sebastian Köln
Posts: 551
Location: Abkhazia · Cfa (humid subtropical) - temperate · clay soil
61
cat forest garden trees solar wood heat woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Eric Hanson wrote:I don’t know what the wear qualities of the USB plug will be, but I am fairly certain that the power specifications will remain compatible.  The USB standard has a consistent history of backwards compatibility so personally I am not concerned on that front.  As far as getting it actually hooked up, it was no different than any other ac plug.



The current "standard chargers" supply 2A at 5V. However there is a huge list of extensions to allow for higher voltage and current including detecting whether the cable can support that as well. Initially only low power devices used USB for their power, but with the ability to support more power, devices with more demands are also using it… So one can end up plugging a device into a socket that has no chance of supplying enough power to it.

D Nikolls
pollinator
Posts: 1575
Location: Victoria BC
228
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Phil Gardener wrote:Any idea if that is pulling current all the time, whether you are using it or not?  I have power strips on which I can switch off individual outlets to avoid vampire loads.



It must draw a hair, but the vampire load should be really, really small.

gardener & author
Posts: 1999
Location: Ladakh, Indian Himalayas at 10,500 feet, zone 5
431
trees food preservation solar greening the desert
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
By the way, when I purchased a small device recently, the salesman told me to only charge it from my computer USB port. He said that reports of their device burning out or failing seem to happen when people charge directly on a fast charger. So I guess not all USB ports and devices are exactly equal!

pollinator
Posts: 207
Location: Western central Illinois, Zone 6a
89
hunting trees solar wood heat rocket stoves ungarbage
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
A lot of good info here. All I have to add is when I updated the wiring in our farmhouse a few years ago I put in two of these in the kitchen and it has been great. I have not had any issues with them failing. They are expensive though, as Eric pointed out. I bought mine at Home Depot and paid roughly $22 each for them. I did wire mine in on the protected side of a GFCI circuit.
While I do like the idea of having separate parts for ease of replacement, these are designed to be installed where it's not convenient to replace, so they are typically made of better stuff. That's my observation.

D Nikolls
pollinator
Posts: 1575
Location: Victoria BC
228
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Rebecca Norman wrote:By the way, when I purchased a small device recently, the salesman told me to only charge it from my computer USB port. He said that reports of their device burning out or failing seem to happen when people charge directly on a fast charger. So I guess not all USB ports and devices are exactly equal!



Huh. That's a new one to me.

Seems like either the fast charger is providing an unacceptably high voltage, presumably as a cheap shitty way to avoid excessive sag from high draw devices..

Or, their device was improperly designed and tries to pull mre current than it can handle..

r ranson
master steward & author
Posts: 20951
Location: Left Coast Canada
5888
books chicken cooking fiber arts sheep writing
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
There was a news article last week about some new phone won't work with regular USB cables even though it has a USB micro plug?  I wasn't paying attention to what that was.

Posts: 94
Location: Eastern Washington
24
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
We have had a lot of device-end plugs come and go, and will likely have more some day, though I haven't heard of any in the pipeline yet. Power-end hasn't had much competition though, I expect we will be seeing type-A for another 30 years since its "good enough" for most things and the industrial supply chain is in place.
The problem is what voltage is running through it. Most devices can safely charge from whatever, its part of the USB charge/communication chip. But for phones and newer laptops/tablets there are the fast chargers that become necessary once you start relying on them. For all kinds of low power USB stuff an outlet combo plug will work fine, but I wouldn't trust them to be future proof enough for what you might want to charge down the road.

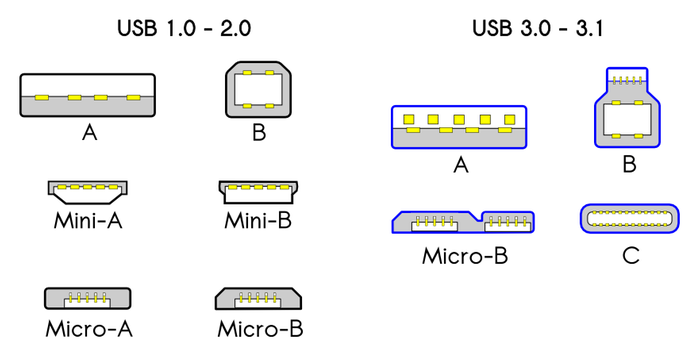

[Thumbnail for USB_2.0_and_3.0_connectors.png]
By Milos634 - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=42694553

pollinator
Posts: 385
Location: Nomadic
35
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I have one of those combination outlets and the USB plugs failed. I only got to use them a couple times. I’m keeping them separate next time.

Posts: 18
2
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I just built a tiny house and I used these "AC + USB" outlets in a few strategic locations.

They are just as easy to install as a regular receptacle. If/when the USB smarts fail, they are just as easy to replace as a regular receptacle. Not a big problem at all.

The phone-end of the USB cable keeps changing (micro-USB, USB-C, or Apple's Firewire(?) connector); however, the charger-end (wall-end) has been USB-A for a long time. That doesn't seem to be changing, and even if it does, these receptacles are easy to change.

I find them really handy. I have 2 AC outlets ready to be used, AND I can charge two USB devices. That's just handy.

Note: They sell standard-charge and rapid-charge versions of the USB-receptacles. I strongly recommend the rapid-charge version.

My only possible-negative on these AC+USB receptacles is that the USB circuitry is always on, at least a little, even when in Idle (not-charging). That's a small phantom load that your cannot switch-off. THat's one advantage of separate charging bricks (you can unplug them). Is that advantage worth it to you? To me, the convenience was worth the phantom loads.
