Using a spinning chimney cowl?


Posts: 2
1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hey Permies! I live in a historical area of Italy and can't put up a windmill due to local visual codes. But everyone has those spinning chimney cowls. Wondering: can I attach a spinning cowl to a horizontal bicycle wheel and use a bike-lite generator to charge a battery? Do they generate enough power? Ever hear of anyone trying this? Thanks!!
[Thumbnail for image.jpg]
Spinning cowl
[Thumbnail for image.jpg]

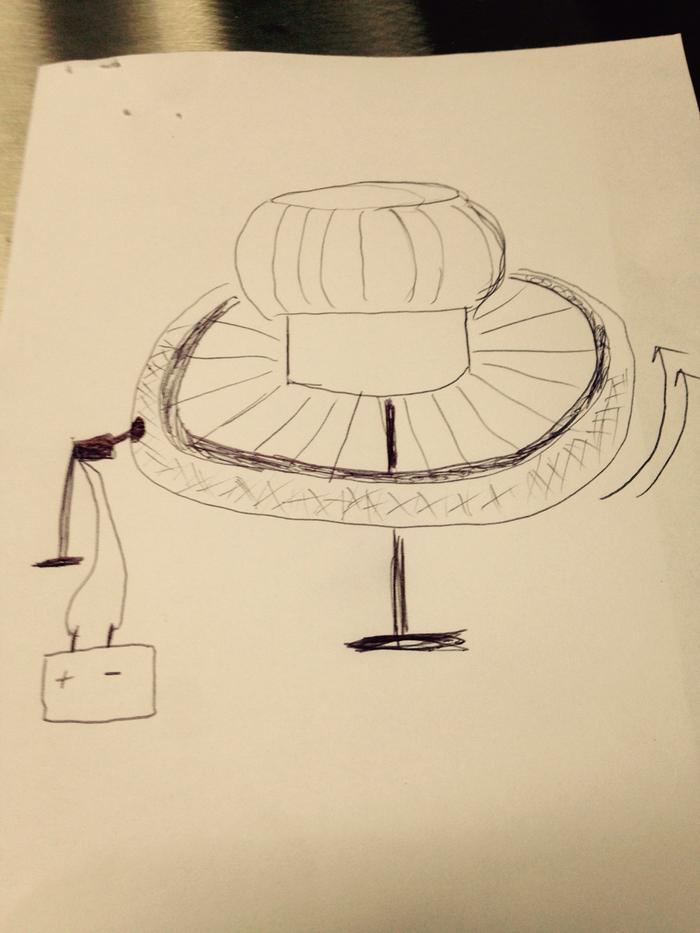

Concept

gardener & hugelmaster
Posts: 3616
Location: Gulf of Mexico cajun zone 8
1914
cattle hugelkultur cat dog trees hunting chicken bee woodworking homestead ungarbage
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Jack. Welcome to permies.

In theory it will work. That is essentially a vertical axis turbine. Anything that keeps the generator spinning within it's normal operating rpm range will work. YouTube has many examples of bicycle wheel turbines.

There are 6 volt & 12 volt bicycle generators so that needs to be considered when selecting batteries to be charged. I wouldn't expect to be cooking many meals from this system but it could work well for running some low power devices like LED lights or charging AA's & AAA's. Might want to consider adding a small charge controller.

steward
Posts: 15301
Location: Northern WI (zone 4)
4714
7
hunting trees books food preservation solar woodworking
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Welcome to Permies Jack!  I'm sure you could generate some electricity that way.  I'm guessing you could generate much more with a purpose built vertical axis wind turbine that is designed to look like a chimney cowl.  Maybe also a little bigger than a standard cowl but not so much bigger that people notice.

gardener
Posts: 978
Location: France, Burgundy, parc naturel Morvan
424
forest garden fish fungi trees food preservation cooking solar wood heat woodworking homestead
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
It would amaze me if it could, chimney cowls are super light, normal wind won't turn the wheel, and if you add the bike dynamo the friction will be too much. It will stand still. They are expensive and fragile. I've removed one that made a squeeky noise every turn. Better buy a small solar panel, Italy gets a lot of sun hours.

Mike Barkley
gardener & hugelmaster
Posts: 3616
Location: Gulf of Mexico cajun zone 8
1914
cattle hugelkultur cat dog trees hunting chicken bee woodworking homestead ungarbage
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Dug up some battery & bike generator specs online & did some quick calculations. Assuming there is enough wind. Guessing 10 - 20 kph minimum.

It will take 40 hours to charge a typical motorcycle battery & 100 hours to charge a typical car battery. That assumes no losses & perfect generator operation. So figure double that amount of time in the real world.

A fully charged heavy duty marine battery (bigger than the car battery calculated) will cook a thick hamburger on a hot plate before it needs recharging. Or barely boil enough water for 2 servings of rice. That should give some realistic idea of what to expect.

The idea has some merit. Especially in a place with rules & good wind. Would be a fun project but don't expect miracles. As already mentioned ... there are obstacles & quite possibly better alternatives.






Jack Thomas
Posts: 2
1
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Great comments, All. Thank you! Yeah, I'm a former off-the-gridder and looking for a project. Solar panels are not allowed unless you're super discreet or your Uncle Vito "knows a guy!" Just looking to power some LEDS so I don't break my neck on one of our four flights of stairs!

pollinator
Posts: 144
Location: Upstate New York
52
chicken solar rocket stoves
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Jack Thomas wrote:Hey Permies! I live in a historical area of Italy and can't put up a windmill due to local visual codes. But everyone has those spinning chimney cowls. Wondering: can I attach a spinning cowl to a horizontal bicycle wheel and use a bike-lite generator to charge a battery? Do they generate enough power? Ever hear of anyone trying this? Thanks!!



I read about a horizontal stealth wind generator that went along the roof ridge and appeared to be part of the roof. The person lived in a neighborhood with a lot of regulations about how things should look. I don't remember where I saw this but maybe if you research stealth wind generators you will find it.

rocket scientist
Posts: 5959
Location: latitude 47 N.W. montana zone 6A
2903
cat pig rocket stoves
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

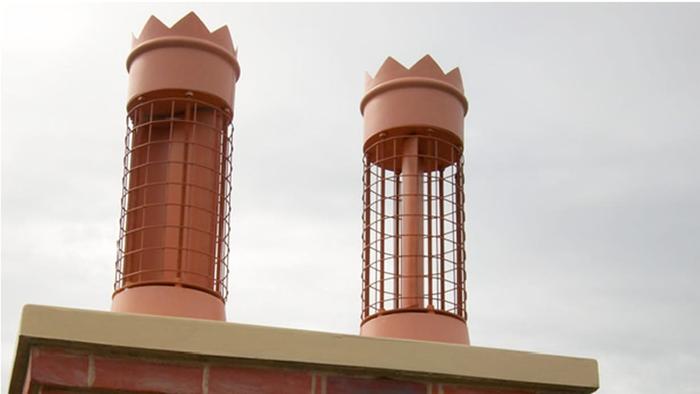

Here you go just what you need)  https://newatlas.com/secret-energy-wind-turbine/14299/  looks like a chimney cap and is near silent.
Otherwise put a movable solar panel inside the house when the sun is shining thru the window.
[Thumbnail for set.jpg]
chimney turbine
