Can anyone identify this work bench?



Posts: 37
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

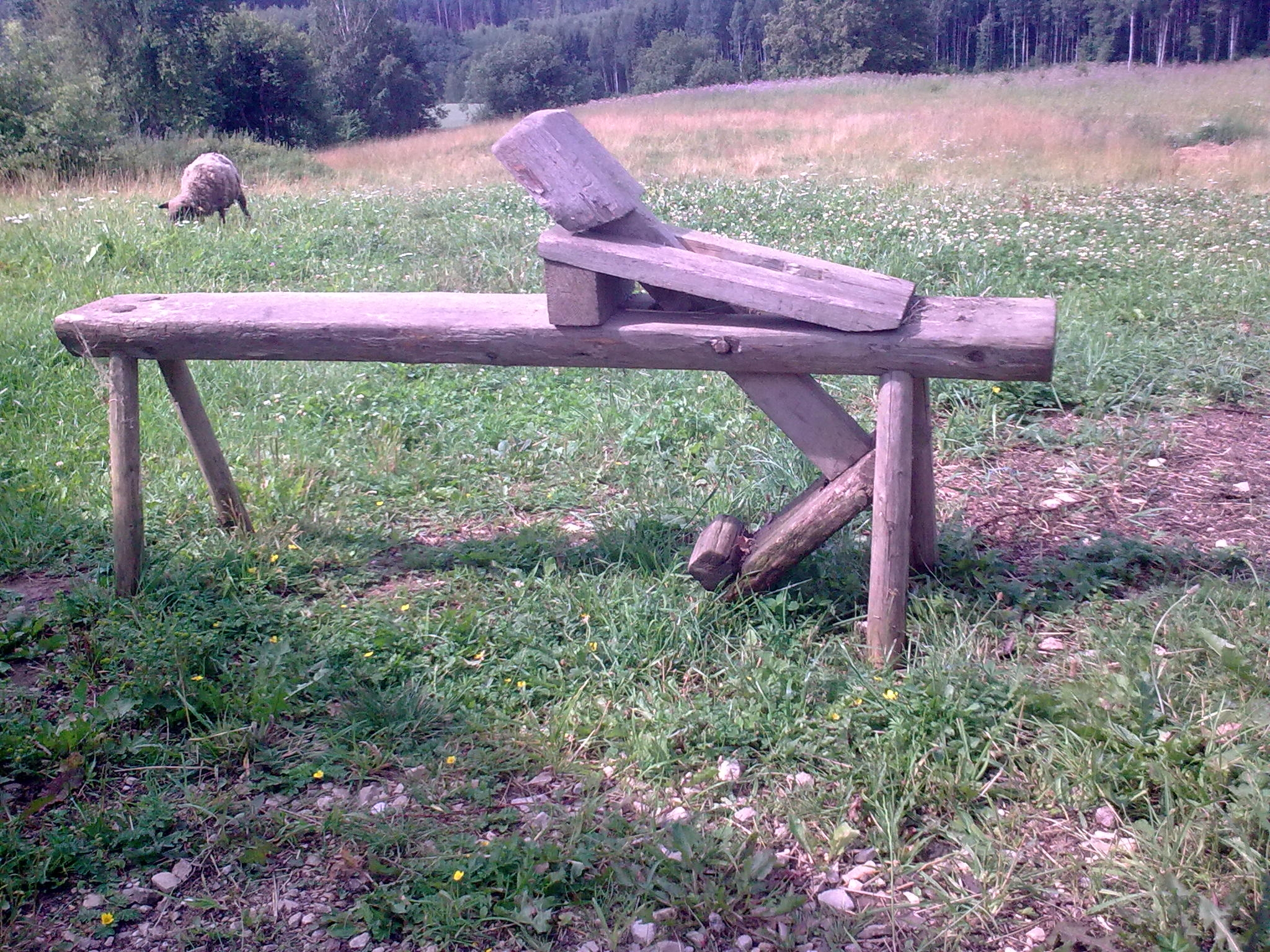

When word got out that we were searching for "old junk", stove top or coal irons, farm implements, spinning wheels etc., a lot of people used tis as an excuse to clean up their yards, barns, whatever.

One guy just showed up with a tractor load full, including this bench, obviously meant to hold some sort of work in progress, but what kind?

Can anyone provide some enlightenment?
[Thumbnail for bench.JPG]

Brice Moss
Posts: 700
Location: rainier OR
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
yep

thats a carvers clamp lets you hold down a piece of wood you are working on with a draw knife real firm and switch position almost instantly by lifting you foot off the bottom


Posts: 37
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
TY Brice: That's sort of what I was figuring, but wasn't sure.

Brice Moss
Posts: 700
Location: rainier OR
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
real handy if you want to carve spoons and the like

Rusty Bowman
Posts: 127
Location: Idaho
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Another name for it is "shaving horse". 16th century technology.

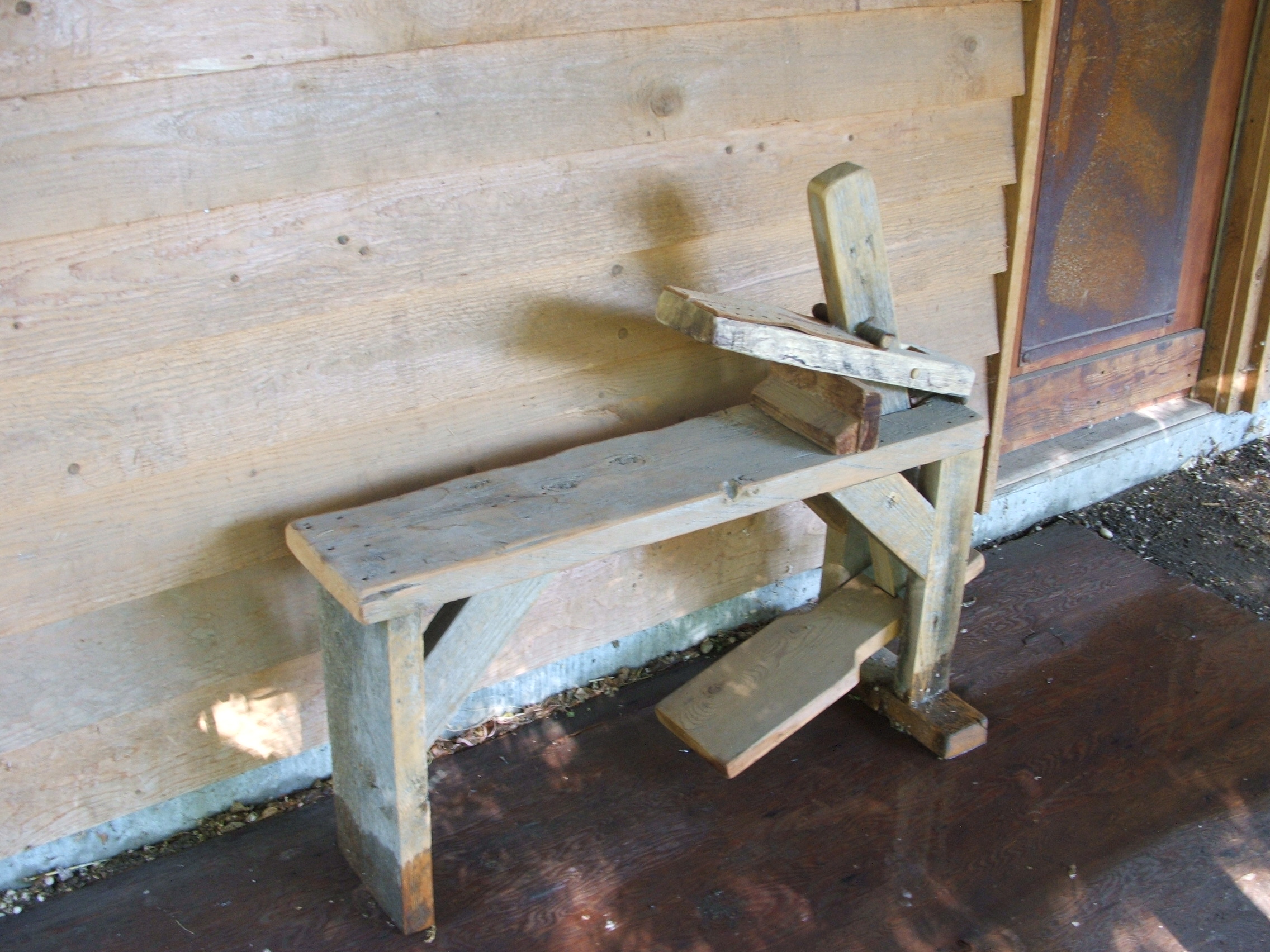

I use mine primarily for holding replica bows I'm working on but use it for other wood working projects on occasion too. Works amazingly well! Can't imagine not having one now. Super simple operation and easy to make. Here's mine I made from salvaged "junk" in an hour or two.
[Thumbnail for DSCF5905.JPG]


Posts: 37
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
rusty wrote:

Here's mine I made from salvaged "junk" in an hour or two.



Nice. Amazing how many useful things can be made from what, until recently, I also would have called "junk" and thrown it away or burned it!

Rusty Bowman
Posts: 127
Location: Idaho
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Spock wrote:
Nice. Amazing how many useful things can be made from what, until recently, I also would have called "junk" and thrown it away or burned it!


Thanks. Making things from "junk" is one of my favorite things to do....bodging as the late Geoff Moxham coined it, I believe.

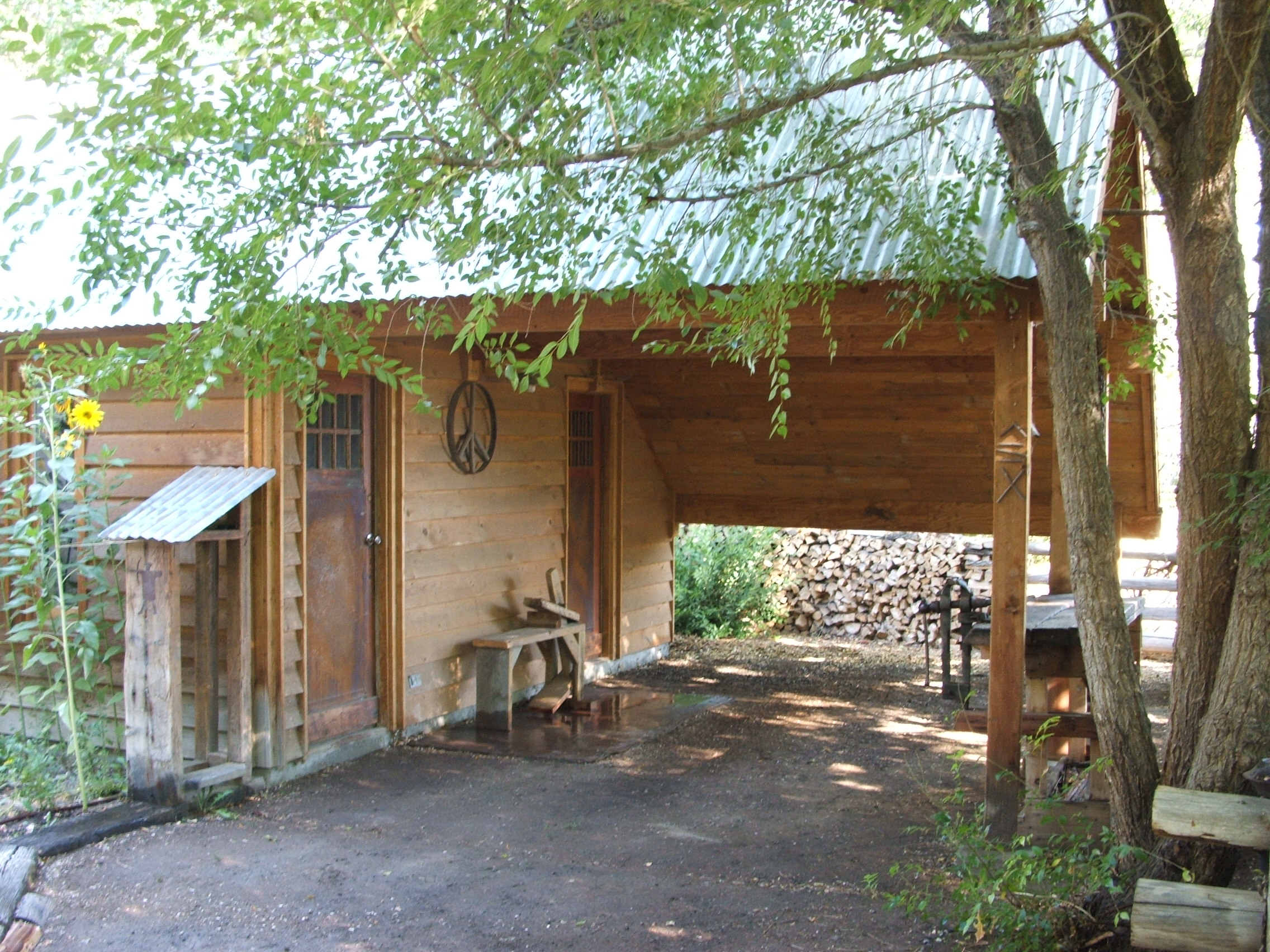

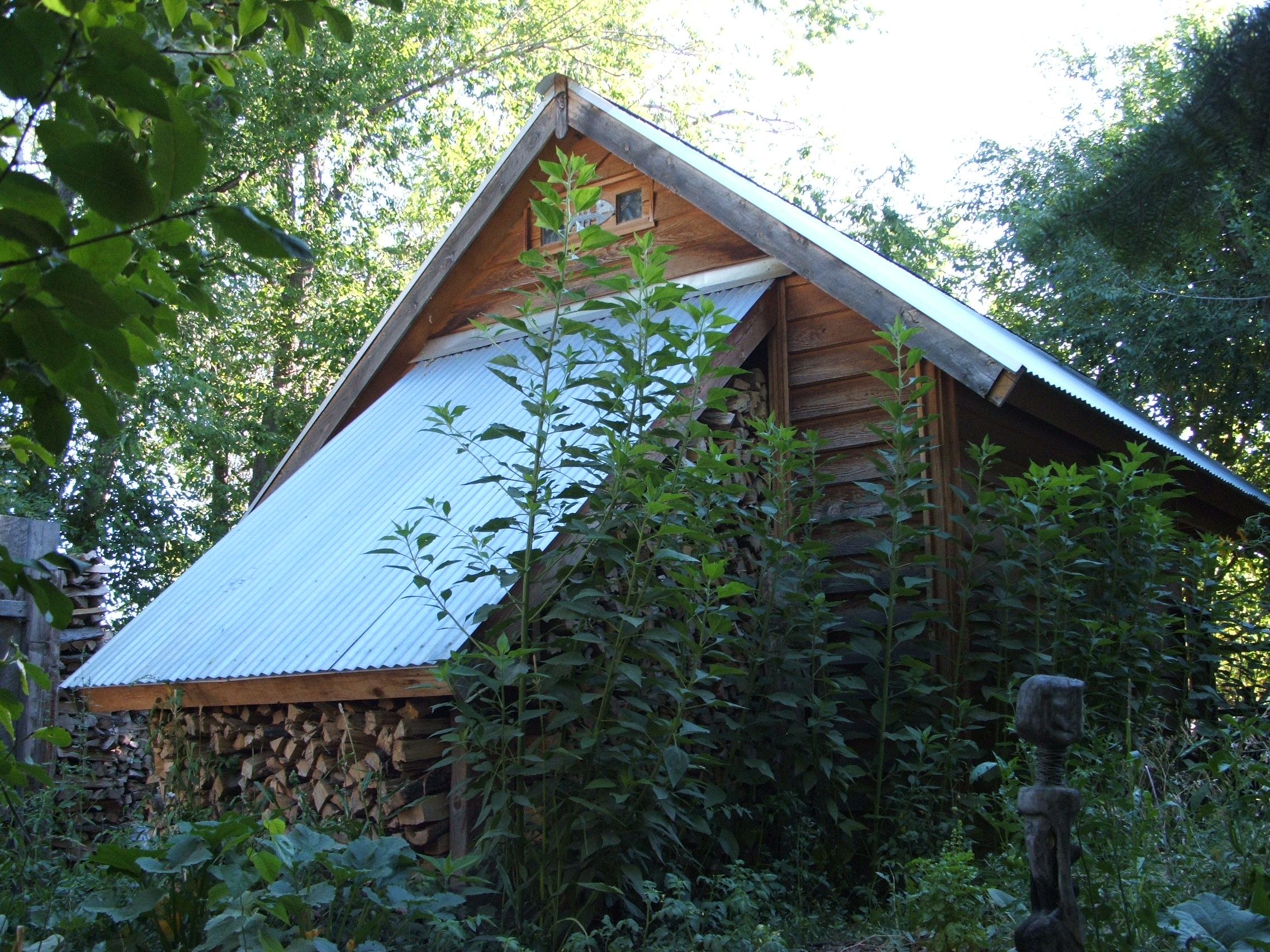

The building that shaving horse is against is made primarily of "junk" destined for the landfill. The wood stacker to the left, the work bench to the right....all made from "junk" too, collected in various places.
[Thumbnail for DSCF5885.JPG]
[Thumbnail for DSCF5870.JPG]

Irene Kightley
pollinator
Posts: 373
Location: South West France
22
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
That's beautiful Rusty !

I love the way you've used all the elements to combine into something which just looks so right. (And the Artichokes are truly spectacular !!  )

Dave Miller
Posts: 408
Location: Zone 8b: SW Washington
13
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Skip to 6:50 in this video to see a shaving horse in action: http://video.pbs.org/video/1427698750/

Rusty Bowman
Posts: 127
Location: Idaho
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Irene Kightley wrote:
That's beautiful Rusty !

I love the way you've used all the elements to combine into something which just looks so right. (And the Artichokes are truly spectacular !!  )


Thank you, Irene!

Jacques Lanteigne
Posts: 13
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
it was also use over here Arcadian territory(french settler on Canadian east coast)
to make split shingles. actually to hold the split shingles in place to shave the top.

John Polk
steward
Pie
Posts: 7344
Location: Currently in Lake Stevens, WA. Home in Spokane
189
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Wheel wrights also used a vice like that to hold the spokes while they shaved them into shape.

A very rudimentary tool for doing many hand working tasks. Simple, yet efficient.

karen denman
Posts: 8
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
that fellow on the PBS program the woodwright uses a bench like this!!! karen
