CFD Computational fluid dynamics on RMH

Eric Reed

Joined: Mar 17, 2012
Posts: 4

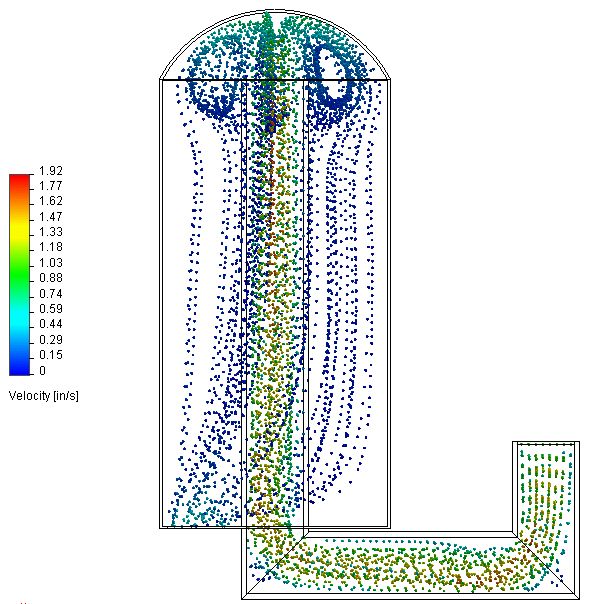

See attachments for some Quick CFD work I did on RMH. This could be a easy way to test out modifications without building a prototype. A limitation I have with this tool is I have to estimate the volume flow rate after the initial combustion and I can't simulate the added gasses from the secondary combustion in the vorticities.

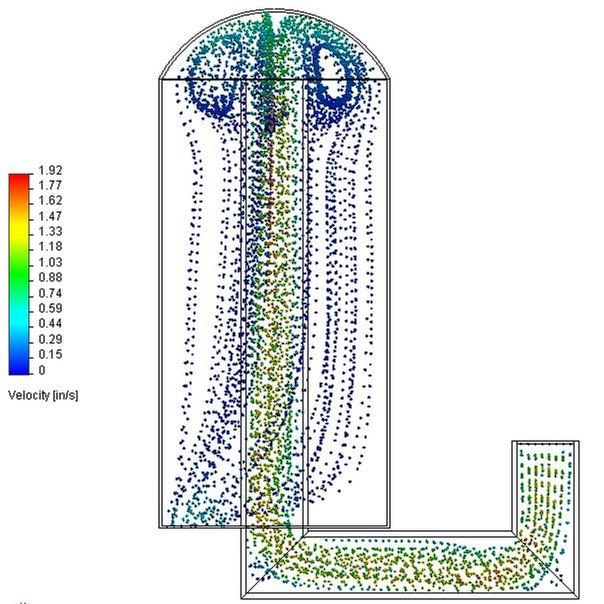

[Thumbnail for CRMH.jpg]

Eric Reed

Joined: Mar 17, 2012
Posts: 4

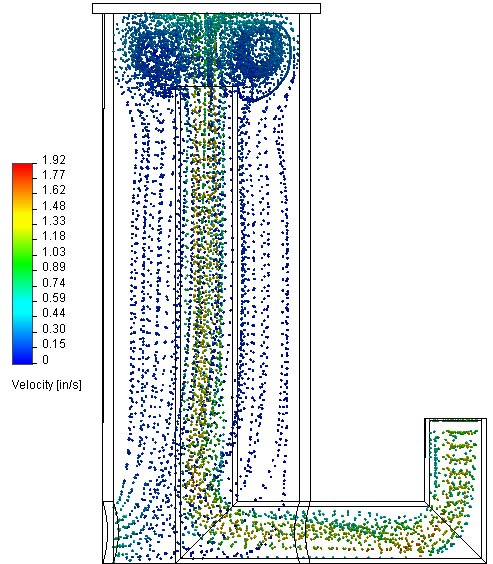

Another Simulation

[Download FRMH.bmp] Download

Ernie Wisner

Joined: Oct 16, 2009
Posts: 788
Location: Tonasket washington
Eric What program is that? how do i run it and what kind of stuff do i need to learn?

Cmon!!! i have been trying to get something like that to run for ages and so far have failed. Please respond via e-mail.... And hurry if you can.

Need more info?
Ernie and Erica
Wood burning stoves, Rocket Mass Heaters, DIY,
Stove plans, Boat plans, General permiculture information, Arts and crafts, Fire science, Find it at www.ernieanderica.info
